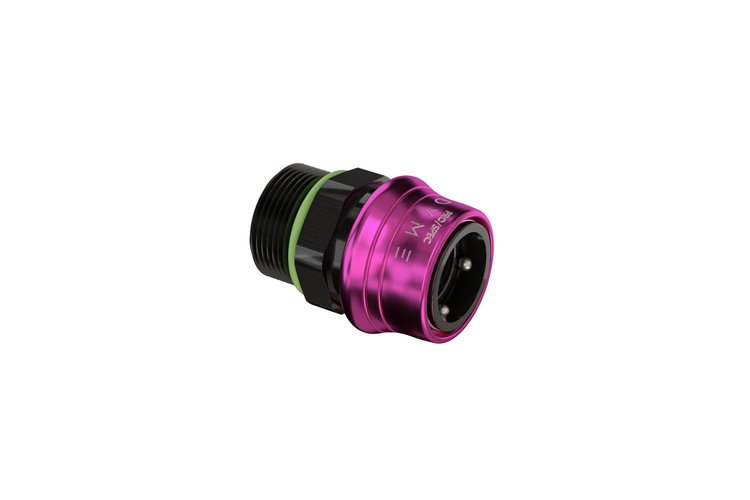

DYME RPS12CT000 is a PRO/SPEC C-Type fitting that threads directly into a -12 ORB port on a radiator, fuel system component, oil cooler, or oil pump, giving that port a PS12 quick release connection. Mounting the quick release at the component instead of the hose end gives the tightest possible packaging, and the straight body keeps the line on a direct path.

DYME RPS12CT000 PRO/SPEC C-Type ORB Swivel Quick Release Fitting Features:

• Forged and machined 6061-T6 aluminum body is anodized for corrosion resistance.
• Standard ORB male thread installs directly into the component port.
• 180 degree swivel allows the fitting to be clocked for accurate hose routing.
• Dual FLUOROK FKM O-rings seal both the adapter connection and the swivel, and withstand constant temperatures up to 401 deg F (205 deg C).
• Seals are compatible with gasoline, ethanol, motor oil, gear oil, transmission fluid, coolant, and air. Not for methanol or nitromethane.
• A high-visibility band on the adapter confirms a locked connection at a glance, and a secondary lock channel accepts a clip or zip tie.
