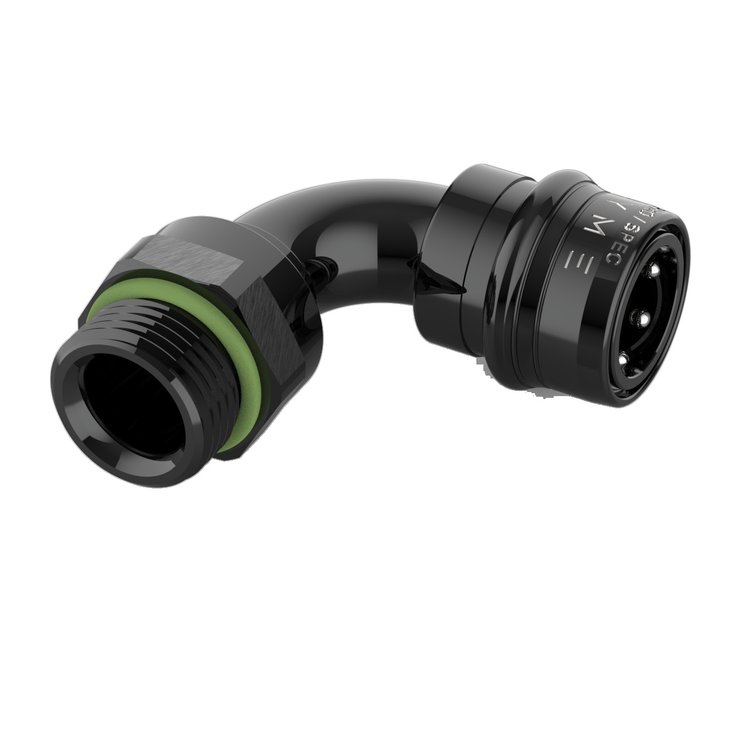

DYME RPS20CT090B is a PRO/SPEC C-Type fitting that threads directly into a -20 ORB port on a radiator, fuel system component, oil cooler, or oil pump, giving that port a PS20 quick release connection. Mounting the quick release at the component instead of the hose end gives the tightest possible packaging, and the 90 degree body turns the line right at the port.

DYME RPS20CT090B PRO/SPEC C-Type ORB Swivel Quick Release Fitting Features:

• Forged and machined 6061-T6 aluminum body is anodized for corrosion resistance.
• Standard ORB male thread installs directly into the component port.
• 180 degree swivel allows the fitting to be clocked for accurate hose routing.
• Dual FLUOROK FKM O-rings seal both the adapter connection and the swivel, and withstand constant temperatures up to 401 deg F (205 deg C).
• Seals are compatible with gasoline, ethanol, motor oil, gear oil, transmission fluid, coolant, and air. Not for methanol or nitromethane.
• A high-visibility band on the adapter confirms a locked connection at a glance, and a secondary lock channel accepts a clip or zip tie.
