Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Universal

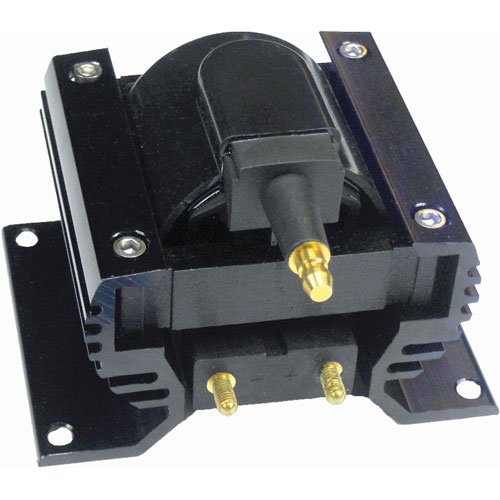

- DiamondFIRE High Output CD Coil
- E-Core Style
- 42,000V
- For Use With 6-Series Ignition Boxes
Engineered to work with the DiamondFIRE 6CDI capacitive discharge ignition system. The design of the E-core and the use of heavy gauge windings produce a high voltage step up transformer to ensure the fastest possible delivery of the most energy to the spark plug. - Coil Wire Attachment: Male/HEI
- Coil Style: E-core
- Primary Resistance: 0.020 ohms
- Coil Internal Construction: Epoxy
- Coil Color: Black
- Maximum Voltage: 42,000 V
- Turns Ratio: 100:1
- Secondary Resistance: 1.38K ohms
- Inductance: 7.0 mH
- Peak Current: 300 mA
- Spark Duration: 200 uS
- Mounting Bracket Included: Yes
- Coil Wire Included: No Ballast Resistor Included: No
Part TypeIgnition Coil
BrandE3 SPARK PLUGS
Package Height3.5
Package Width4.0
Package Length6.0
Weight1.32 PG
Part CategoryPerformance Parts
Vendor Part NumberE3.1451
Package Qty1
Package TypeEA
