Max-Fire Electronic Ignition Coil
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-22740

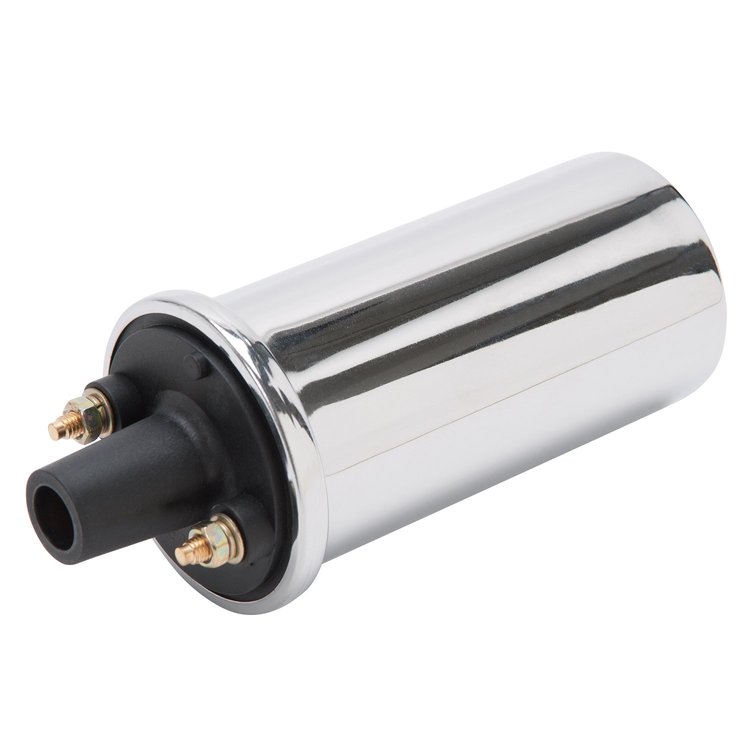

Max-Fire Electronic Ignition Coil

$6295
1 left in stock
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

Max-Fire Electronic Ignition Coil
  • Canister Style
  • Oil Filled
  • Chrome Finish

    Specifications:

    • Primary Resistance:  0.700 ohms
    • Secondary Resistance: 4.7K ohms
    • Max Voltage Output: 45,000 Volts
    • Turns Ratio: 100:1
    • Inductance: 8mH
    • Peak Current: 140 mA
    • Spark Duration: 350 uS

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    Electronic Oil-Filled Coils

    Max-Fire ignition coils are perfect for use with electronic breakerless distributors, like Edelbrocks Max-Fire distributors. In fact, these electronic ignition coils are an excellent high performance ignition coil for any 12-volt vehicle converted from points to a breakerless electronic distributor or electronic ignition system where the look of a canister type coil is preferred. Special windings are used to provide maximum build-up of voltage and are kept cool and securely held in an oil-filled metal canister. The tower assembly is molded of durable alkyd material and wide spaced brass primary terminals prevent the possibility of spark. For use with ready-to-run distributors and 6-series CD ignition control boxes.

    Show More

    Features:

    • Engineered for high output at higher RPM
    • Improved throttle response
    • Classic appearance, modern performance
    Part TypeIgnition Coil
    Product LineEdelbrock Max-Fire Canister Ignition Coils
    BrandEDELBROCK
    Package Height5.3
    Package Width5.4
    Package Length7.8
    Weight1.85 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number22740
    Package Qty1
    Package TypeEA
