Vehicle Info NeededMALLORYPART NUMBER: 650-29219

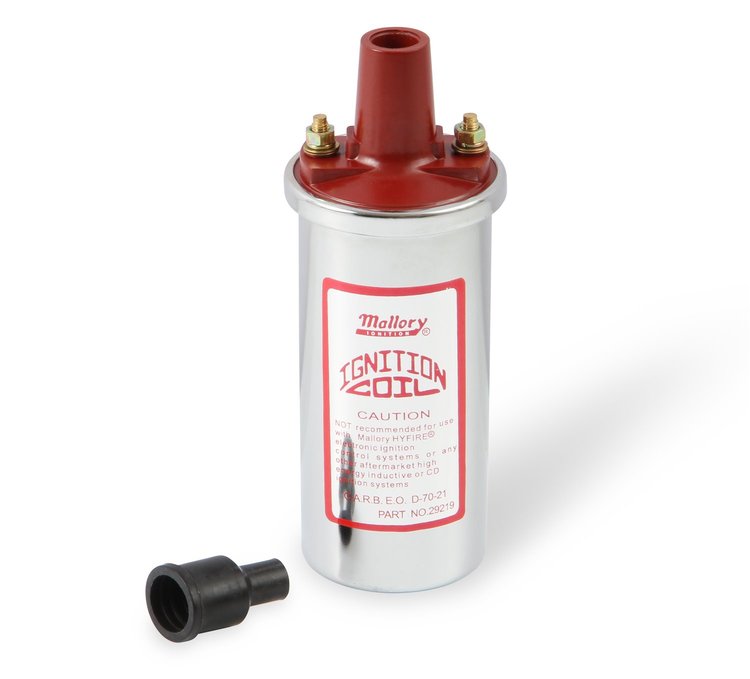

Universal Canister Coil 12-Volt 1.36 Ohms
$8889
1 left in stock
Ships Today
Lowest Price GuaranteeUniversal Canister Coil12-Volt 1.36 Ohms C.A.R.B. EO# D-70-21
Note: Not for use with Mallory HYFIRE Electronic Ignition Controls, or any other high energy, inductive storage ignition system.
Features:
- Inductance: 6.8mH
- Maximum voltage: 40,000 volts
- Peak current: 54 mA
- Primary resistance: 1.36 Ohms
- Secondary resistance: 10.87 K Ohms
- Spark duration: 3.4 mS
- Turns ratio: 104:1
- The Mallory Chrome Super Duty Coils feature an oil-filled design and arc resistant alkyd top for superior performance, insulation and cooling. They deliver optimum performance when used with Mallory Points type,Unilite or Magnetic Breakerless Distributors equipped with a capacitive discharge ignition!Note: 50-state legal via E.O.#D-70-21.
JEGS EZ Complete Kits are designed by JEGS professionals so you get all the parts you need.
Part TypeIgnition Coil
Product LineMallory Chrome Super Duty Ignition Coil
BrandMALLORY
Package Height2.6
Package Width2.8
Package Length6.6
Weight1.6 PG
Part CategoryPerformance Parts
Primary Resistance1.400 ohms
Coil Wire AttachmentFemale/Socket
Coil StyleCanister
QuantitySold individually
Ballast Resistor IncludedNo
Maximum Voltage58,000 V
Turns Ratio112:01:00
Peak Current180 mA
Coil ShapeRound
Mounting Bracket IncludedNo
Inductance6.6 mH
Coil ColorChrome
Coil Wire IncludedNo
Spark Duration300 uS
Secondary Resistance10.00K ohms
Part FitmentSemi Universal
Coil Internal ConstructionOil-filled
Vendor Part Number29219
Package Qty1
Package TypeEA
