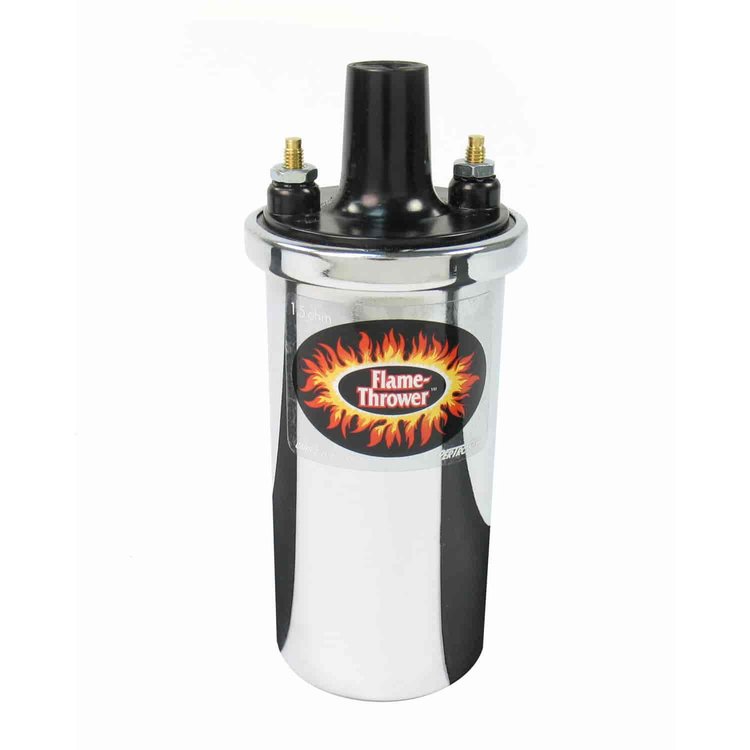

Flame-Thrower Coil Chrome
InfoVehicle Info Needed
PERTRONIXPART NUMBER: 751-40001

Flame-Thrower Coil Chrome

$5799
More than 10 available
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

Flame-Thrower Coils
  • 1.5 ohm Primary Resistance
    • Flame-Thrower Coil
    • Chrome
    • Oil-Filled
    • 40,000 Volt Output
    • 1.5 Ohm Primary Resistance
    • Carb Approved D-57-21

      Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)

    Flame-Thrower 40,000 volt canister coils can benefit virtually any distributor type inductive system. Its higher voltage allows larger spark plug gaps for added power, smoother response and better fuel economy. These coils are internally resisted so they are compatible with many ignition systems. Flame-Thrower oil filled coils offer great heat control for street driven vehicles, while epoxy filled coils provide superior winding support for high vibration environments in offroad vehicles and boats. It's also the perfect coil to go with the PerTronix Ignitor Breakerless Ignition.

    Show More

    Features:

    • Available chrome plated or black for that "stock look".
    • For use with inductive ignition systems.
    • Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-10)

    JEGS EZ Complete Kits are designed by JEGS professionals so you get all the parts you need.

    Part TypeIgnition Coil
    Product LinePertronix Flame-Thrower Coils
    BrandPERTRONIX
    Package Height6 in (152.4 mm)
    Package Width3.6
    Package Length6.8
    Weight1.6 PG
    Part CategoryPerformance Parts
    Carb Eo NumberD-57-21 (pdf)
    Primary Resistance1.500 ohms
    Coil Wire AttachmentFemale/Socket
    Coil StyleCanister
    QuantitySold individually
    Ballast Resistor IncludedNo
    Maximum Voltage40,000 V
    Turns Ratio115:01:00
    Peak Current7.2 amps
    Coil ShapeRound
    Title (Custom)PerTronix 40001 Flame-Thrower Coil 40,000 Volt 1.5 ohm Chrome
    Mounting Bracket IncludedNo
    Inductance6.4 mH
    Coil ColorChrome
    Coil Wire IncludedNo
    Spark Duration1.5 mS
    Secondary Resistance10.60K ohms
    Part FitmentSemi Universal
    Coil Internal ConstructionOil-filled
    Diameter2.125 in (53.975 mm)
    Vendor Part Number40001
    Package Qty1
    Package TypeEA
