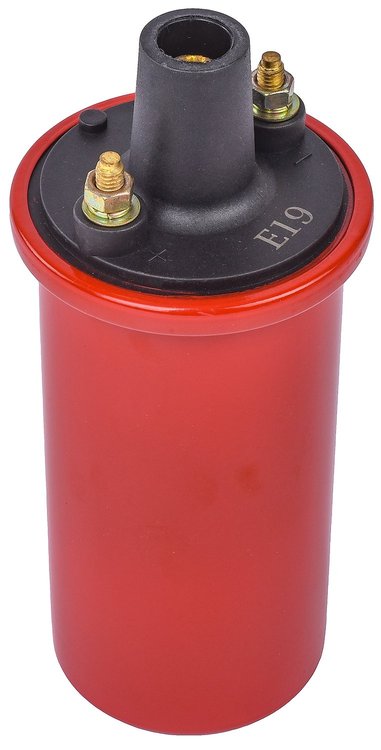

High-Energy Ignition Coil for CD Electronic Ignition [Red]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-40118

High-Energy Ignition Coil for CD Electronic Ignition [Red]

$3199$35.99You Save$4.00
More than 10 available
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Rubber Grommet Assortment Kit 125 Pieces

JEGS

Rubber Grommet Assortment Kit 125 Pieces

Part Number : 555-10365
$919$9.99
You Save$0.80
12 ga Inline Fuse Holder For Use with 5-30 amp ATO Style Fuses

JEGS

12 ga Inline Fuse Holder For Use with 5-30 amp ATO Style Fuses

Part Number : 555-10515
$599$6.99
You Save$1.00
Nylon Wire and Cable Ties [8 in. Black]

JEGS

Nylon Wire and Cable Ties [8 in. Black]

Part Number : 555-10605
$579$6.99
You Save$1.20
Nylon Wire and Cable Ties [11 in. Black]

JEGS

Nylon Wire and Cable Ties [11 in. Black]

Part Number : 555-10610
$1099$12.99
You Save$2.00

CD Electronic Ignition Coils
High-Energy Ignition Coil
  • For CD Electronic Ignition
  • Red
  • Female/Socket
  • Oil Filled
  • 12 V Input
  • 45,000 V Output
  • Primary Resistance: 0.46 ohm
  • Secondary Resistance: 7.55K ohms
  • Turns Ratio:116:1

    JEGS 40118 Red High-Energy Ignition Coil is a performance upgrade designed for use with CD (Capacity Discharge) electronic ignition systems that is capable of producing up to 45,000 volts of power.

    Note: Will not work with breaker points or standard non-CD (Capacity Discharge) electronic ignition systems.

    Includes:

    • (1) Red Coil
    • (2) 5mm x 0.8mm thread Nuts
    • (2) 5mm flat washers
    • (2) 5mm lock washers

    Dimensions:

    • Diameter: 2.160 in.
    • Overall Height: 5.625 in.
    • Case Height: 4.375 in.
    • Tower Height: 1.250 in. from top of case
    • Stud: .375 in. H x 5mm x 0.8mm thread
    • Nut: 5mm x 0.8mm, requires 8 mm socket for removal
  • Part TypeIgnition Coil
    BrandJEGS
    Package Height3.0
    Package Width3.0
    Package Length7.0
    Weight1.6 PG
    Part CategoryPerformance Parts
    Ignition TypeElectronic
    Carb Eo NumberN/A
    Coil Wire AttachmentFemale/Socket
    Coil StyleCanister
    QuantitySold individually
    Ballast Resistor IncludedNo
    Maximum Voltage45,000 V
    Coil ShapeRound
    Mounting Bracket IncludedNo
    Requires External ResistorNo
    Coil ColorRed
    Terminal GenderMale
    Coil Wire IncludedNo
    Terminal Quantity2
    Coil TypeIgnition Coil
    Part FitmentUniversal
    Coil Internal ConstructionOil-filled
    Package Qty1
    Package TypeEA
