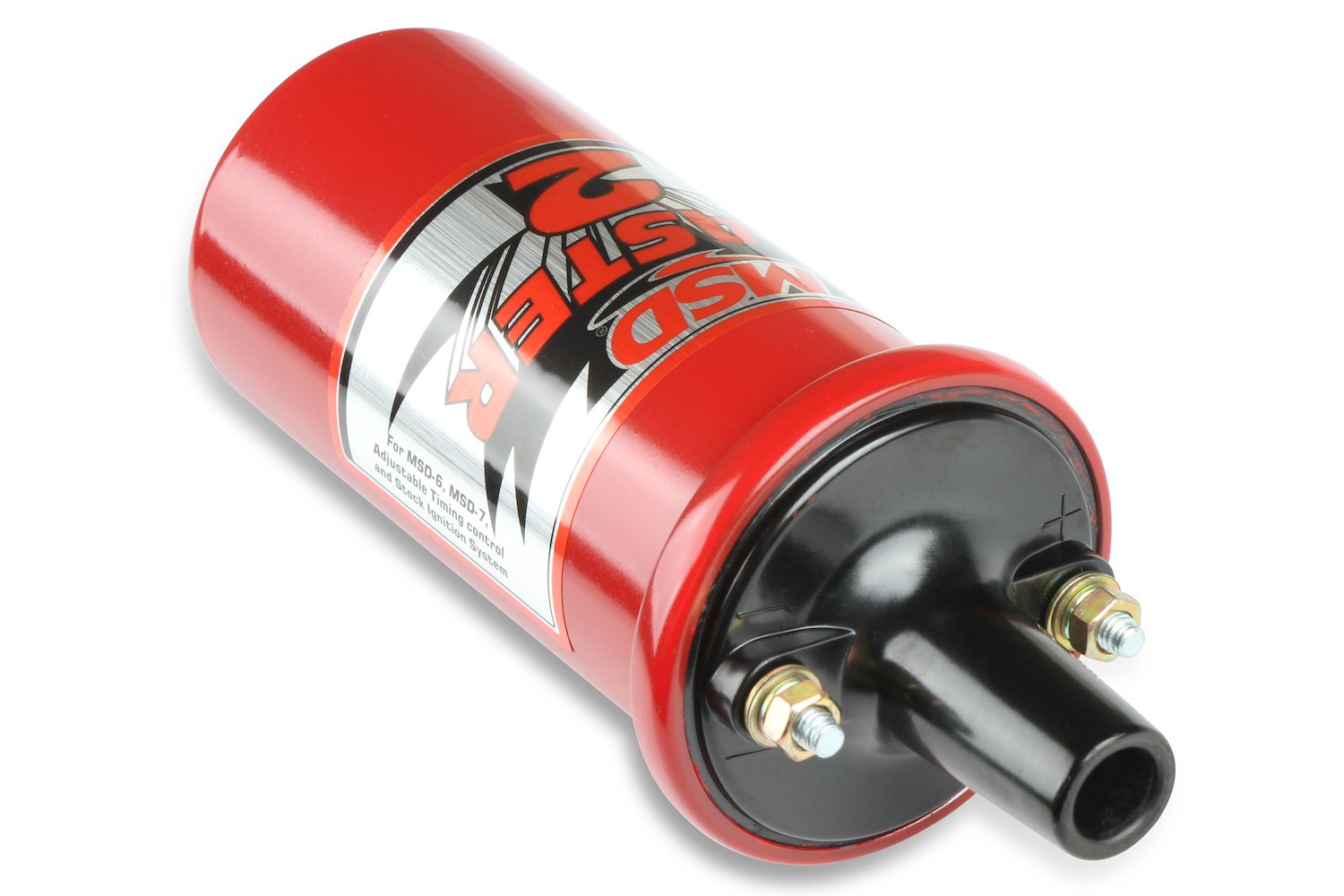

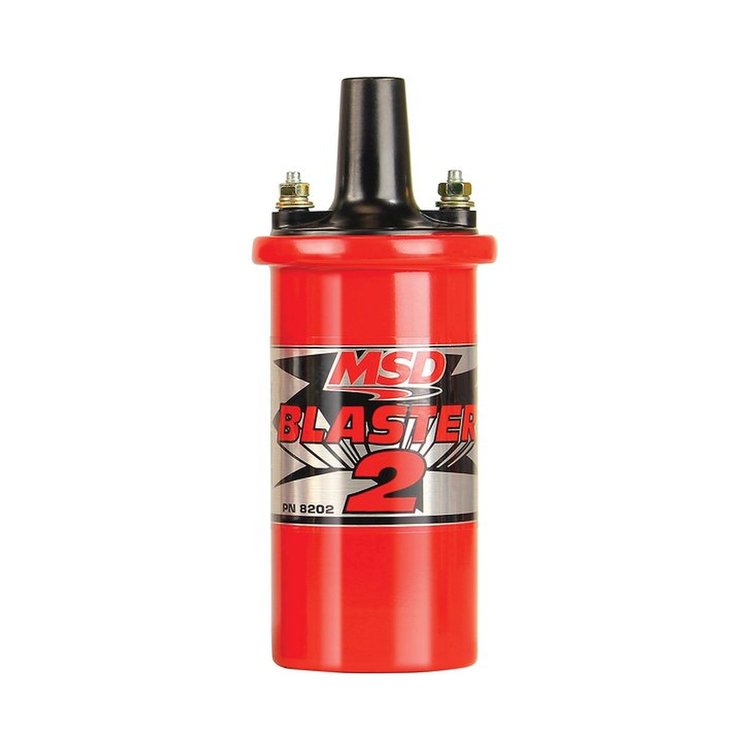

MSD Ignition 8202 Blaster 2 Canister-Style Ignition Coil:

• Improved output coil for electronic, Point, Blaster, or MSD 5, 6, and 7 Series Ignitions
• Alkyd tower with high dielectric properties is less prone to carbon tracking
• Turns ratio: 100:1
• Primary resistance: .7 OHMs
• Secondary resistance: 4.5K OHMs
• Inductance: 8 mH
• Maximum voltage: 45,000 Volts (Tested with 6AL Ignition)
• Peak current: 140 mA
• Spark duration: 350 uS

MSD Ignition 8202 Blaster 2 Canister-Style Ignition Coil Notes:

• Ballast Resistor Required for Points-Style Ignitions
• Coil Should be Mounted in a Upright Position

Emissions Note:

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number D-40-37 for OBDII 2003 or Older Vehicles.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

FAQ

Are MSD Blaster coils worth it?

• Absolutely, the MSD Blaster 2 coil (8202 MSD) enhances spark energy
• Provides improved combustion for increased power & efficiency
• Ideal for high-performance engines seeking better ignition

Does a MSD Blaster 2 coil need a resistor?

• No, the MSD Blaster 2 coil (8202 MSD) does not require an external resistor
• Designed for compatibility with most ignition systems

How many ohms is a MSD Blaster coil?

• The MSD Blaster 2 coil (8202 MSD) typically has around 0.7 to 0.8 ohms primary resistance
• Offers efficient energy transfer for optimal ignition performance

How to wire a MSD Blaster 2 coil?

• Connect the positive terminal to the ignition switch
• Ground the negative terminal to the chassis or engine block
• Use appropriate wiring diagrams for precise installation on your vehicle
