Classic Series Coil Primary Resistance: .6 Ohms
InfoVehicle Info Needed
MALLORYPART NUMBER: 650-29440

Classic Series Coil Primary Resistance: .6 Ohms

$18695$207.95You Save$21.00
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00
Coil Ballast Resistor, 0.8 Ohm

MSD IGNITION

Coil Ballast Resistor, 0.8 Ohm

Part Number : 121-8214
$2066$22.95
You Save$2.29
Spark Guard Dielectric Grease Resealable Container

MSD IGNITION

Spark Guard Dielectric Grease Resealable Container

Part Number : 121-8804
$4159$46.21
You Save$4.62

Street and Strip Points & OE Electronic Type

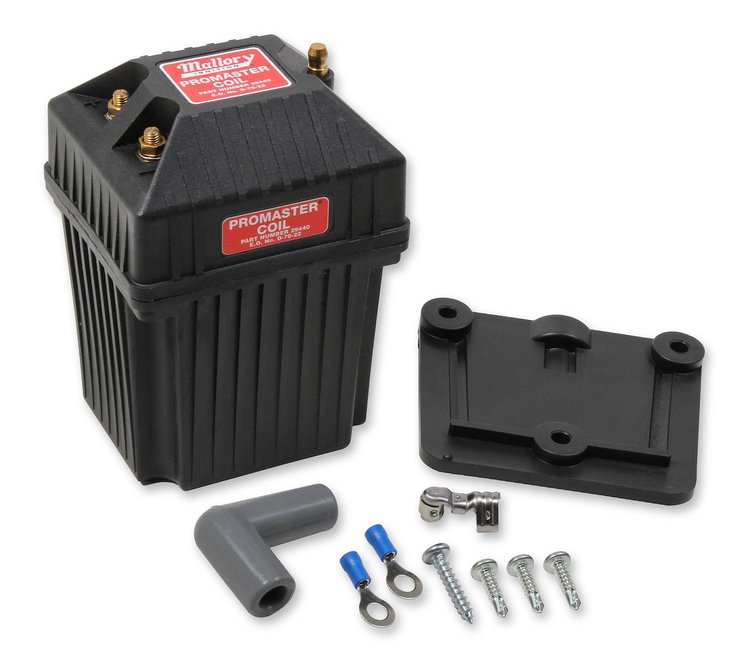

    Promaster Classic Series Coil
  • Primary Resistance: .6 Ohms
  • Maximum Voltage: 49,000 Volts
  • Peak Current: 66mA
  • Ballast Resistor Not Included, use MSD part 121-8214

    Note: Compatible with Hyfire CDI Systems

The Mallory Promaster Classic series ignition coil is designed to meet today's specialized ignition requirements. This coil features a faster rise time and increased spark duration (compared to stock) to increase performance. It has a glass-filled polyester case and oil-filled construction to ensure a long life and no energy loss from arcing. This coil also offers excellent wire retention with a spark plug type secondary post, and brass contact terminals.

Show More

Features

  • Classic good looks
  • High current / voltage output
  • Spark plug style terminal for excellent coil wire retention
  • Brass contact terminals
  • Mounting bracket included
  • Can be used on inductive and CD ignitions
Part TypeIgnition Coil
Product LineMallory Promaster Classic Ignition Coils
BrandMALLORY
Package Height4.2
Package Width4.7
Package Length7.1
Weight3.17 PG
Part CategoryPerformance Parts
Carb Eo NumberD-70-12 (pdf)
Primary Resistance0.600 ohms
Coil Wire AttachmentMale/HEI
Coil StyleCanister
QuantitySold individually
Overall Length3.706 in (94.1 mm)
Ballast Resistor IncludedYes
Maximum Voltage55,000 V
Turns Ratio105:01:00
Peak Current100 mA
Coil ShapeSquare
Mounting Bracket IncludedYes
Inductance7.3 mH
Coil ColorBlack
Coil Wire IncludedNo
Spark Duration500 uS
Product Height5.297 in (134.544 mm)
Secondary Resistance12.3K ohms
Part FitmentSemi Universal
Coil Internal ConstructionOil-filled
Product Width3.846 in (97.688 mm)
Vendor Part Number29440
Package Qty1
Package TypeEA
