Made in USA

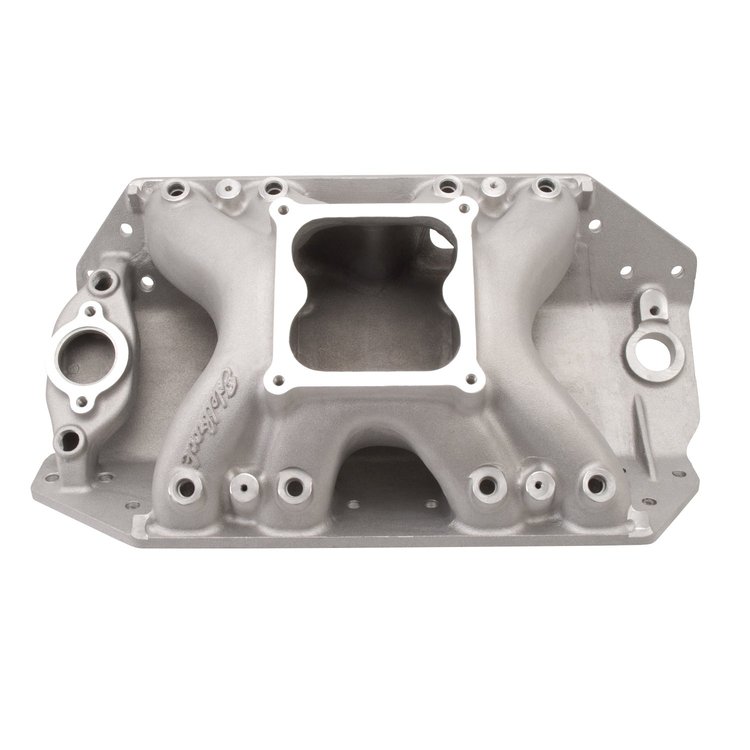

Big Victor Spread-Port Manifold EFI
Product Discontinued
EDELBROCKPART NUMBER: 350-28015

Big Victor Spread-Port Manifold EFI

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

For use with Edelbrock Big Victor, Profiler Raptor and Dart Big Chief Heads Only
    Big Victor Spread-Port Manifold
  • EFI
  • Big Block Chevy
  • Big Victor, Profiler Raptor, and Dart Big Chief Heads
  • 9.8" Deck Height
  • 3500-8500 RPM Range

    Designed for large cubic-inch or high rpm drag racing Big Block Chevy combinations, these manifolds have an average runner area of approximately 4.75 sq.in. The port exits have .090" per side reduction to accommodate the wide variety of intake port sizes and require port matching to the head being used. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop

    Installation Notes
  • Deck Height: 9.8"
  • Throttle Body Recommendations: Edelbrock 4500 4V #350-3888, EFI elbow #350-3814 and EFI elbow #350-3815
  • Manifold Height: (A) 8.15", (B) 8.15" 375-1298
  • Fuel Rail Kit: Edelbrock 375-3624
  • Injector Style: Standard
Part TypeIntake Manifold
BrandEDELBROCK
Package Height15.25
Package Width15.75
Package Length24.5
Weight30.5 PG
Part CategoryPerformance Parts
Runners RemovableNo
Number Of CarbsNone, For Fuel Injection
Supplemental Bosses Cast-InYes
EmissionWithout EGR
Engine Make/SizeChevy Big Block (396-502)
Basic Operating Rpm Range3,500-8,500
Base FinishNatural
Rpm Range3500-8500
Injection StyleMulti-port
Supplemental Boss QuantityEight
Base MaterialAluminum
Aftermarket Fuel Rail RequiredNo
Engine Block StyleAftermarket/OEM tall deck
UsageRacing
Throttle Body IncludedNo
PositionN/A
QuantitySold individually
Cylinder Head TypeBig Chief
Injectors IncludedNo
Fuel Rails IncludedNo
Intake Section IncludedComplete
EgrWithout EGR
Supplemental Bosses MachinedYes
Runners IncludedNo
Vendor Part Number28015
Package Qty1
Package TypeEA
