Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

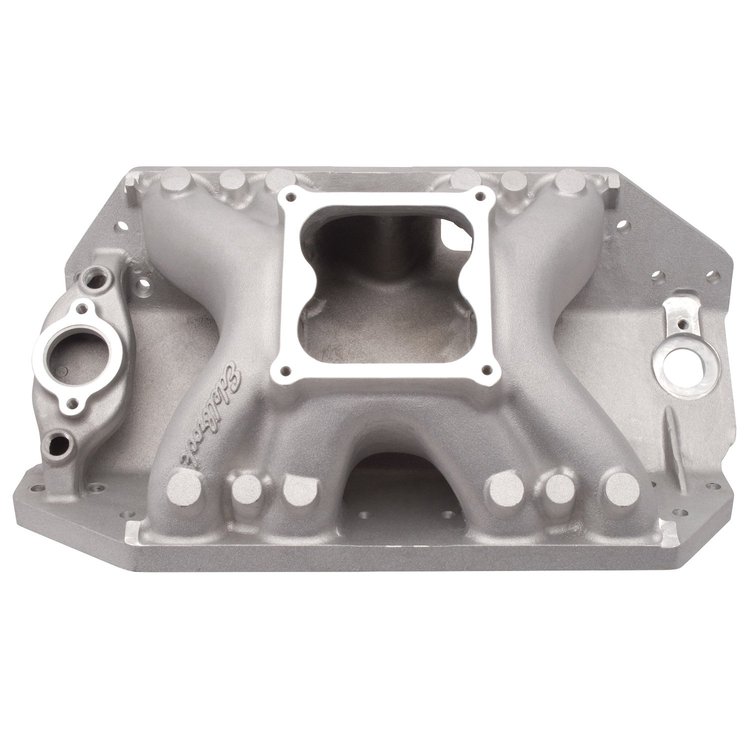

For use with Edelbrock Big Victor, Profiler Raptor and Dart Big Chief Heads Only
- Big Victor Spread-Port Manifold
- Big Block Chevy
- Big Victor, Profiler Raptor, and Dart Big Chief Heads
- 10.2" Deck Height
- 4500 Carburetor Flange
- 3500-8500 RPM Range
Designed for large cubic-inch or high rpm drag racing Big Block Chevy combinations, these manifolds have an average runner area of approximately 4.75 sq.in. The port exits have .090" per side reduction to accommodate the wide variety of intake port sizes and require port matching to the head being used. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop - Deck Height: 10.2"
- 4500 Series Carburetor Flange
- Manifold Height: (A) 8.47", (B) 8.47"
- Click here to determine carburetor pad height
- Recommended intake gasket; Fel-Pro 375-1298
Part TypeIntake Manifold
BrandEDELBROCK
Package Height15.4
Package Width15.7
Package Length24.7
Weight35.45 PG
Part CategoryPerformance Parts
Engine Block StyleAftermarket/OEM tall deck
UsageRacing
Number Of CarbsOne
Intake MaterialAluminum
PositionN/A
Intake StyleSingle plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeBig Chief
Intake FinishNatural
Carburetor QuantityOne
Engine Make/SizeChevy Big Block (396-502)
Intake Section IncludedComplete
Basic Operating Rpm Range3,500-8,500
EgrWithout EGR
Rpm Range3500-8500
Intake Manifold Height8.47 in (215.138 mm)
Vendor Part Number2802
Package Qty1
Package TypeEA
