Made in USA

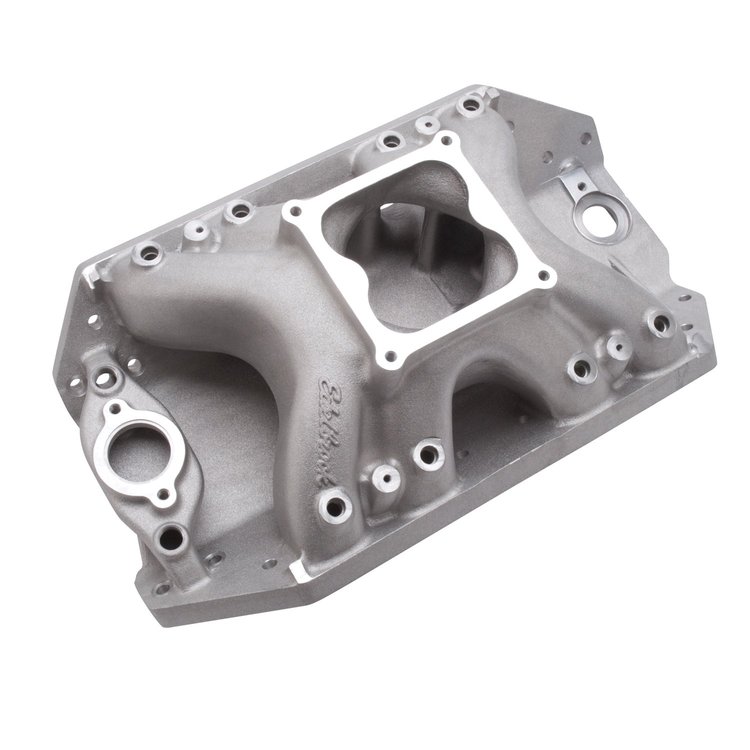

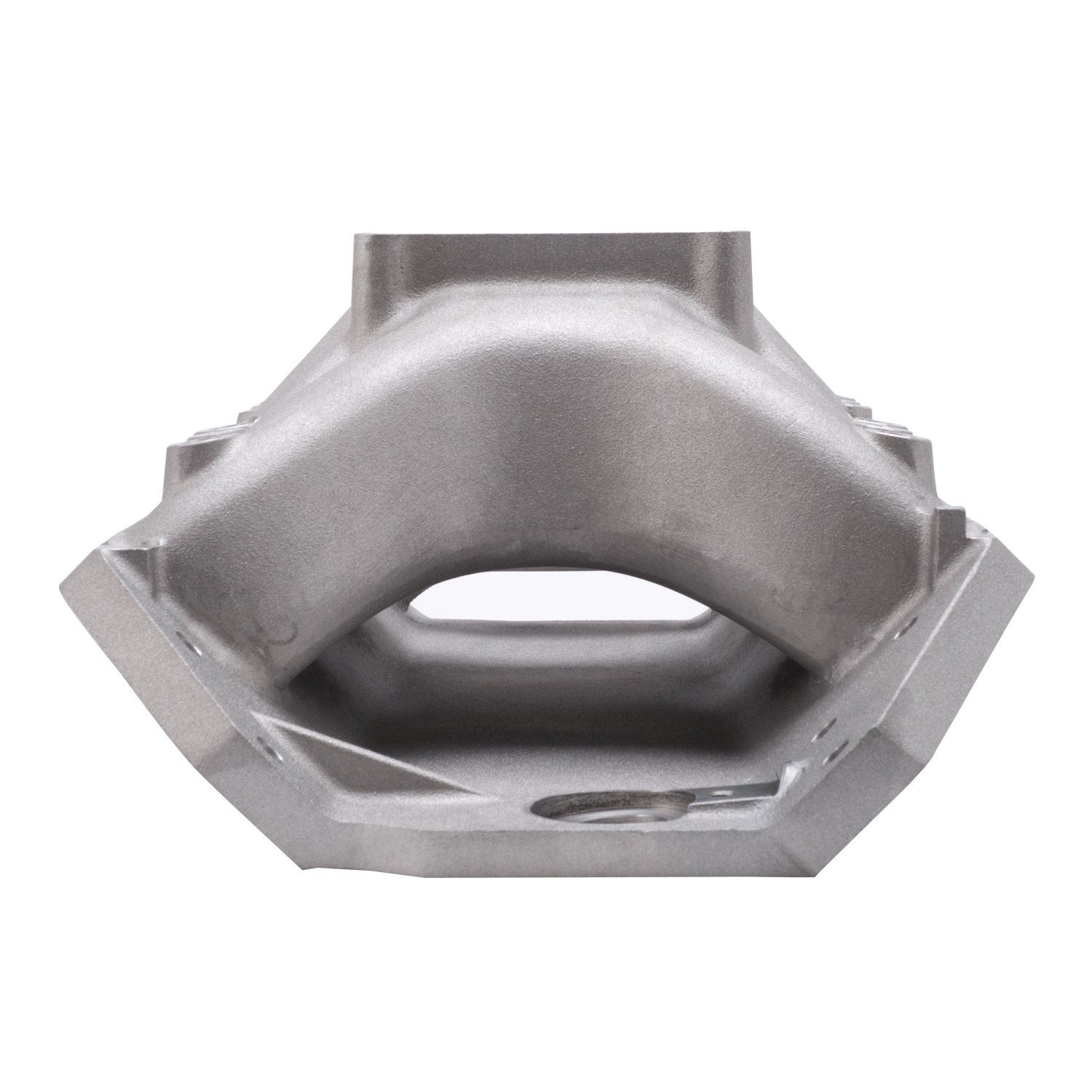

Big Victor HV Spread-Port Manifold EFI
Product Discontinued
EDELBROCKPART NUMBER: 350-28045

Big Victor HV Spread-Port Manifold EFI

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

For use with Edelbrock, Brodix, and Dart Heads
    Big Victor HV Spread-Port Manifold
  • EFI
  • Big Block Chevy
  • Edelbrock, Brodix, and Dart Heads
  • 10.2" Deck Height
  • 3500-8500 RPM Range

    These manifolds are identical to Edelbrock's #2801 and #2802 intakes, but with smaller runners for use on engines with a displacement up to 590 cubic inches, or for larger engines whose power band is primarily below 6500 rpm. Big Victor HV manifolds offer a smaller plenum and runner volume for optimal performance on engines with up to 590 c.i.d. and/or larger displacement engines operating 6500 rpm and below. This combo makes this an ideal choice for throttle stop applications or for custom ported versions to create unique port configurations.

    Installation Notes
  • Deck Height: 10.2"
  • Manifold Height: (A) 8.47", (B) 8.47" Click here to determine carburetor pad height
  • Recommended intake gasket; Fel-Pro 375-1298
  • Throttle Body Recommendations: Edelbrock 4500 4V #350-3888, EFI elbow #350-3814 and EFI elbow #350-3815
Part TypeIntake Manifold
BrandEDELBROCK
Package Height15.4
Package Width15.7
Package Length24.5
Weight42.07 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
UsageRacing
Number Of CarbsNone, For Fuel Injection
Intake MaterialAluminum
PositionN/A
Intake StyleSingle plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeBig Chief
Intake FinishNatural
Carburetor QuantityOne
Engine Make/SizeChevy Big Block (396-502)
Intake Section IncludedComplete
Basic Operating Rpm Range3,500-8,500
EgrWithout EGR
Rpm Range3500-8500
Intake Manifold Height10.2 in (259.08 mm)
Vendor Part Number28045
Package Qty1
Package TypeEA
