Made in USA

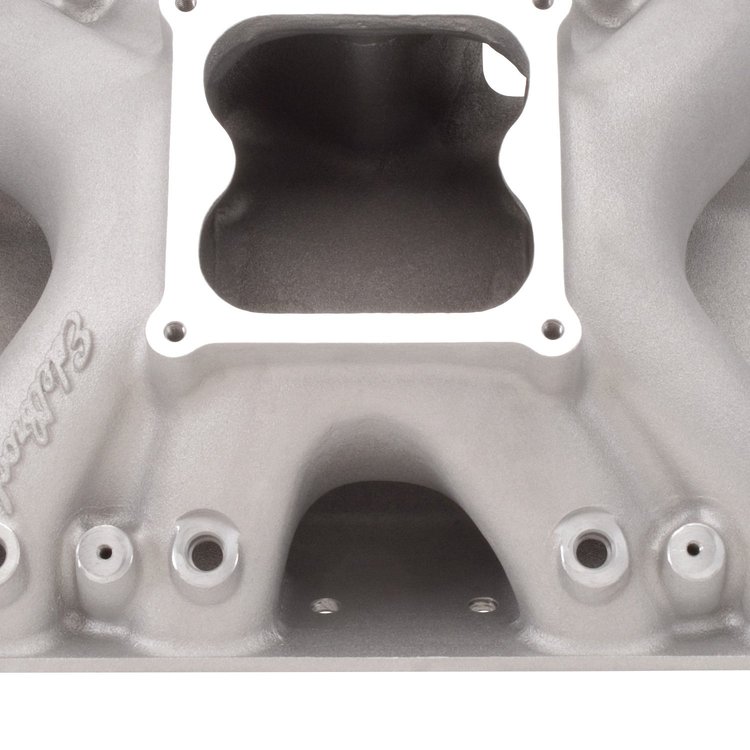

Big Victor Spread-Port Manifold EFI
Product Discontinued
EDELBROCKPART NUMBER: 350-28055

Big Victor Spread-Port Manifold EFI

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

For use with Brodix Big Duke Heads Only
    Big Victor Spread-Port Manifold
  • EFI
  • Big Block Chevy
  • Brodix Big Duke Heads
  • 9.8" Deck Height
  • 3500-8500 RPM Range

    Designed for large cubic-inch or high rpm drag racing Big Block Chevy combinations, these manifolds have an average runner area of approximately 4.75 sq.in. The port exits have .090" per side reduction to accommodate the wide variety of intake port sizes and require port matching to the head being used. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop

    Installation Notes
  • Throttle Body Recommendations: Edelbrock 4500 4V #350-3888, EFI elbow #350-3814 and EFI elbow #350-3815
  • Manifold Height: (A) 7.99", (B) 7.99" 375-1298
  • Fuel Rail Kit: Edelbrock 375-3624
  • Injector Style: Standard
Part TypeIntake Manifold
BrandEDELBROCK
Package Height14.37
Package Width14.75
Package Length24.0
Weight29.7 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
UsageRacing
Number Of CarbsNone, For Fuel Injection
Intake MaterialAluminum
PositionN/A
Intake StyleSingle plane
EmissionWithout EGR
QuantitySold individually
Cylinder Head TypeBig Chief
Intake FinishNatural
Carburetor QuantityOne
Engine Make/SizeChevy Big Block (396-502)
Intake Section IncludedComplete
Basic Operating Rpm Range3,500-8,500
EgrWithout EGR
Rpm Range3500-8500
Intake Manifold Height8.15 in (207.01 mm)
Vendor Part Number28055
Package Qty1
Package TypeEA
