Made in USA
Big Victor Spread-Port Manifold EFI
Product Discontinued
EDELBROCKPART NUMBER: 350-28065

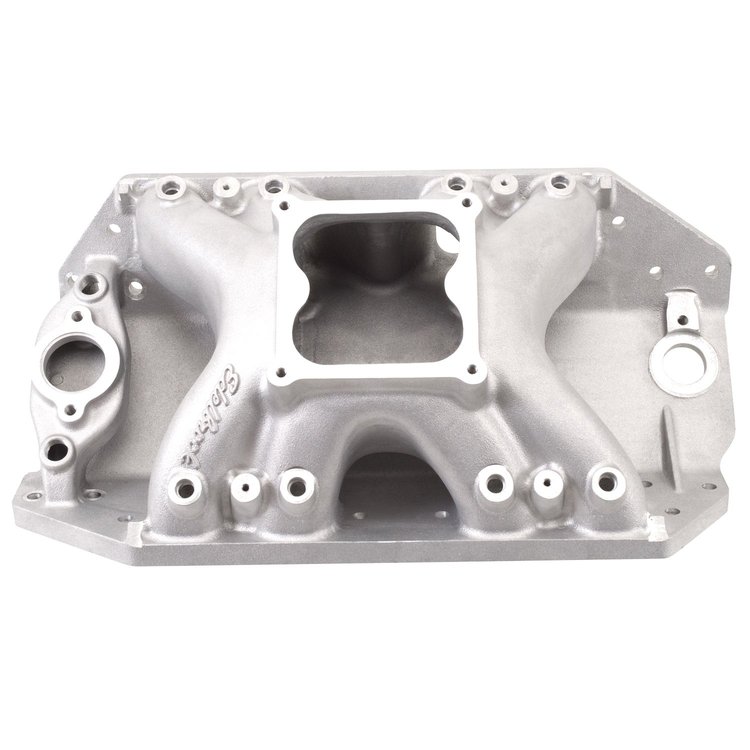

Big Victor Spread-Port Manifold EFI

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

For use with Brodix Big Duke Heads Only
    Big Victor Spread-Port Manifold
  • EFI
  • Big Block Chevy
  • Brodix Big Duke Heads
  • 10.2" Deck Height
  • 3500-8500 RPM Range

    Designed for large cubic-inch or high rpm drag racing Big Block Chevy combinations, these manifolds have an average runner area of approximately 4.75 sq.in. The port exits have .090" per side reduction to accommodate the wide variety of intake port sizes and require port matching to the head being used. The runners have a minimum corner radius of .500" from the plenum to the exit allowing the popular oval port shape to be used. The outside runners are shorter and straighter than competitor's manifolds and the plenum is longer front to back. These features, combined with approximately 5% taper in runner cross-sectional area, give better top end horsepower while maintaining consistency and throttle response off the stop

    Installation Notes
  • Deck Height: 10.2"
  • Throttle Body Recommendations: Edelbrock 4500 4V #350-3888, EFI elbow #350-3814 and EFI elbow #350-3815
  • Manifold Height: (A) 8.25", (B) 8.25" Click here to determine carburetor pad height
  • Recommended intake gasket: Fel-Pro 375-1298
  • Fuel Rail Kit: Edelbrock 375-3624
  • Injector Style: Standard

    Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    Designed for large cubic-inch or high rpm drag racing big-blocks with Big Duke Cylinder heads, the Big Victor Spread-Port manifold makes more horsepower than any other single-quad intake. We've heard from top racers and engine builders all around the country and the consensus is that the Edelbrock Big Victor Spread-Port manifold makes from 20 to 35 horsepower more than their previous manifold. One well-known racer even got a 50 horsepower increase after porting his new Big Victor intake. Top end horsepower is improved while maintaining consistency and response off the throttle stop.

    Show More
Part TypeIntake Manifold
Product LineEdelbrock Big Victor Spread-Port Manifolds
BrandEDELBROCK
Package Height14.37
Package Width14.75
Package Length24.0
Weight38.3 PG
Part CategoryPerformance Parts
Runners RemovableNo
Number Of CarbsNone, For Fuel Injection
Supplemental Bosses Cast-InYes
Plenum MaterialAluminum
EmissionWithout EGR
Engine Make/SizeChevy Big Block (396-502)
Basic Operating Rpm Range3,500-8,500
Base FinishNatural
Rpm Range3500-8500
Injection StyleMulti-port
Supplemental Boss QuantityEight
Base MaterialAluminum
Plenum FinishNatural
Aftermarket Fuel Rail RequiredYes
Engine Block StyleAftermarket/OEM tall deck
UsageRacing
Throttle Body IncludedNo
PositionN/A
QuantitySold individually
Cylinder Head TypeBig Duke
Injectors IncludedNo
Fuel Rails IncludedNo
Intake Section IncludedComplete
EgrWithout EGR
Supplemental Bosses MachinedNo
Runners IncludedYes
Vendor Part Number28065
Package Qty1
Package TypeEA
