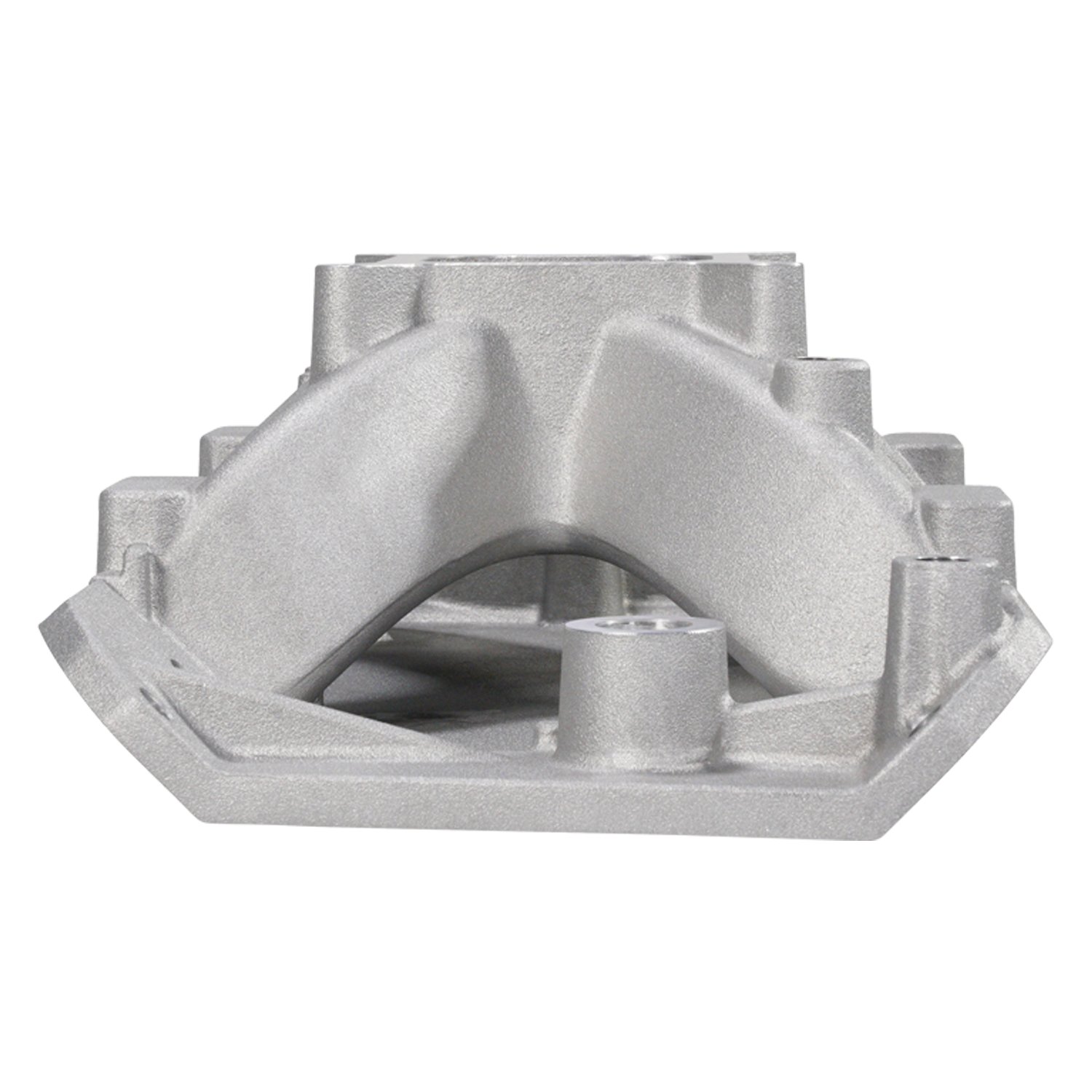

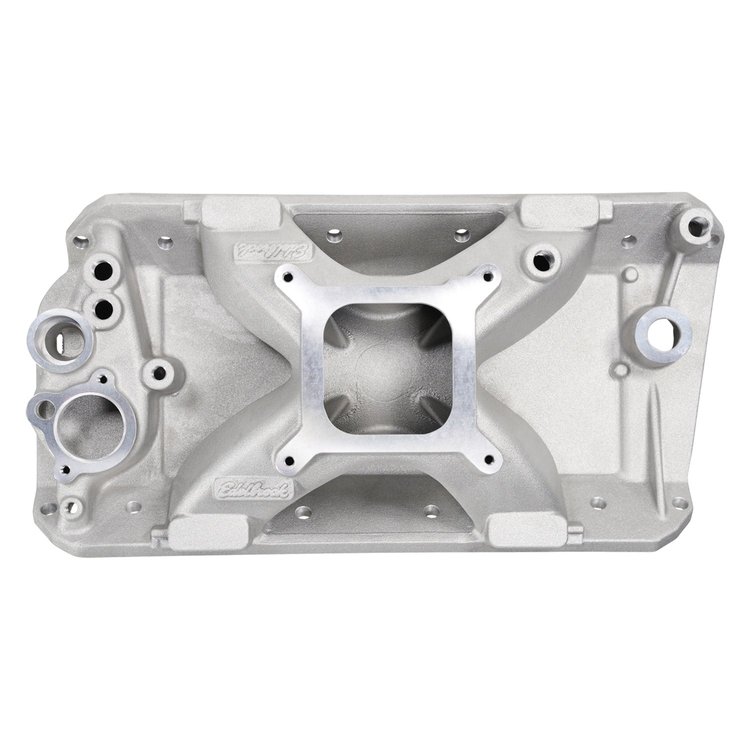

Edelbrock 28110 Victor Jr. AMC Intake Manifold

This Edelbrock Victor Jr intake manifold for AMC engines outperforms the old Torker design in overall performance figures, with an additional 10HP right out of the box. Torker was rated at 3500-7500 RPM whereas the Victor Jr is estimated at 3500-8500 RPM, making this a true high RPM racing intake manifold.

Edelbrock 28110 Victor Jr. AMC Intake Manifold Features:

• Designed for 1970-1991 AMC 304, 360, 390 & 401 V8 carbureted engines
• Will also work on 290, 343 & early 390 engines with late-model 1970-1991 Dog Leg port heads
• Single plane design for optimal airflow and best fuel distribution
• 10-HP gain over the AMC Torker part# 2730
• 3500 - 8500 RPM Range
• Height = 5.740 in.
• Carb angle = 0 degrees
• Port Size: R=1.160 in., F= .970 in., W=1.060 in., H=2.130 in.
• Fits 4150 Carburetor Flange
• Designed for non-emission-controlled applications
• Standard oil fill hole
• Raised PCV boss for better oil control

Edelbrock 28110 Victor Jr. AMC Intake Manifold Notes:

• The customer must install the original intake oil baffle to the bottom of the intake
• No provisions for exhaust-heated chokes
• No heat crossover
• No provisions for factory throttle bracket

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
