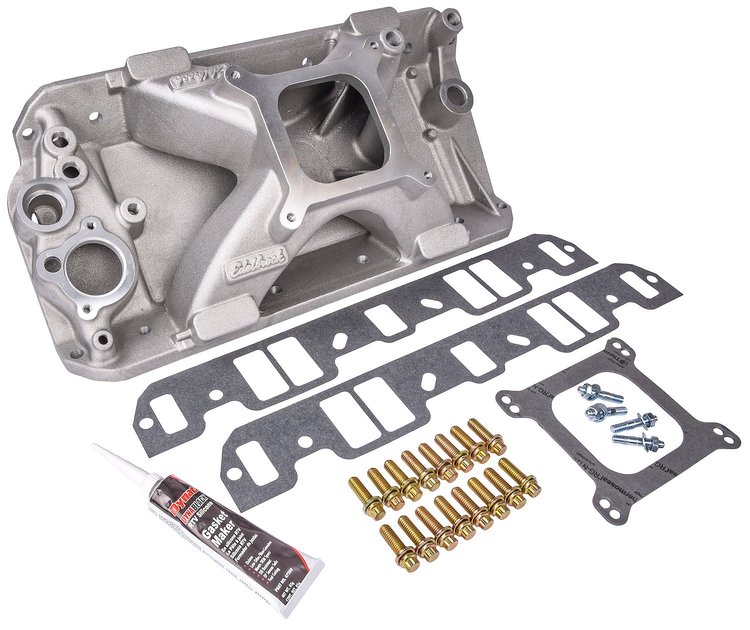

Victor Jr. AMC Intake Manifold with Installation Kit

Vehicle Info Needed

EDELBROCKPART NUMBER: 350-28110K

Victor Jr. AMC Intake Manifold with Installation Kit

Name: Victor Jr. AMC Intake Manifold with Installation Kit
Brand: EDELBROCK
SKU: 350-28110K
Price: 603.31 USD
Availability: InStock

^$603³¹

Ships Today

Lowest Price Guarantee

Carb

Victor Jr. Intake Manifold Kit
Fits 1970-91 AMC 304, 360, 390 & 401 V8 Engines

Kit Includes:
Intake Manifold
Manifold Bolts
Carb studs
Carb gasket
Black RTV
PCV Grommet

Kit Includes:

Edelbrock Intake manifold 350-28110

Edelbrock Intake Gasket kit 350-7213

JEGS Intake Manifold attaching bolts 555-83255

JEGS Carb stud kit 555-15840

JEGS Carb base gasket 555-16100

JEGS Black RTV Sealer 555-28035

Omix PCV Grommet 440-17402.05
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIntake Manifold
BrandEDELBROCK
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
UsageRacing
Intake MaterialCast Aluminum
Intake Gasket IncludedYes
Intake StyleSingle plane
EmissionNon-Emissions
QuantitySold individually
Port Width1.060 in. (26.92 mm)
Mounting Hardware IncludedYes
Cylinder Head TypeAMC 1970-91 304-401 CID
Intake FinishNatural
Carburetor QuantityOne 4-BBL
Engine Make/SizeAMC V8
Port Height2.13 in (54.1 mm)
Basic Operating Rpm Range3,500-8,500
EgrWithout EGR
Rpm Range3500-8500
Manifold TypeHigh Rise
Intake Manifold Height5.740 in. (145.8 mm)
Package Qty1
Package TypeEA
