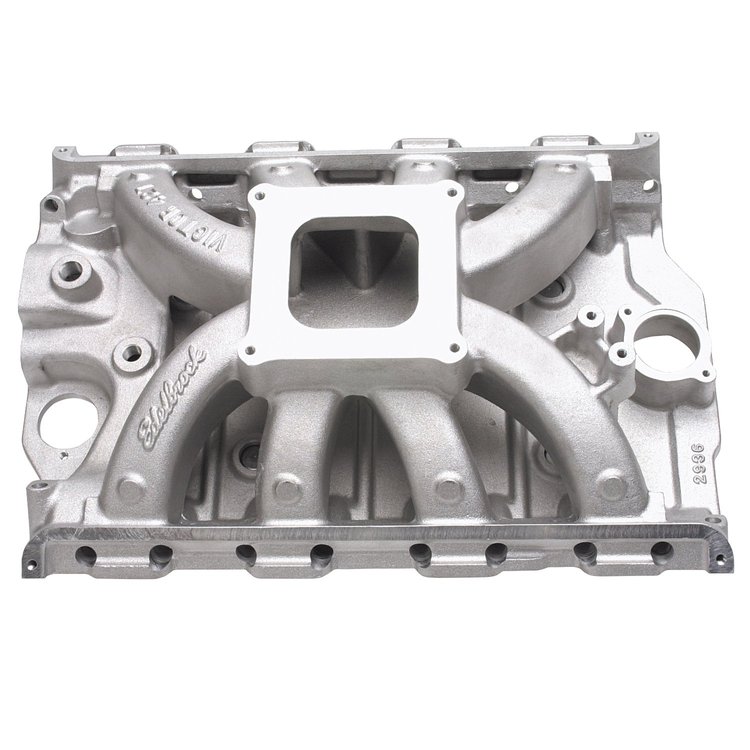

Vehicle Info NeededVictor FE Ford Intake Manifold
Ships on 10/07/2026
Lowest Price Guarantee- Ford FE 390-428
- 4150 Carburetor Flange
- 4000-8000 RPM Range
- Satin Finish
Designed for high performance 390-406-410-427-428 c.i.d. Ford FE engines. The single-plane design provides race-winning power for many types of competition. Carb flange height is equal to the Ford high-riser manifold #C4AE-9424-G to fit under 427 Cobra hoods. Runners have plenty of material for port matching to low- or medium-riser style heads. Machined rear breather boss is included with unmachined nitrous bosses and front oil fill tube boss. Match with Edelbrock Performer RPM FE heads 350-60069 or 350-60079.
Installation Notes: - Recommended intake gasket: Fel-Pro 375-1247, Jegs 555-210300 or Mr. Gasket 720-206G
- Manifold height: (A) 6.49', (B) 6.49'
- Carb pad height = 6.49' View Manifold 'A/B' Measurement Guide.
- Square bore 4150 style carb flange
- Includes Nitrous Bosses
- Fits Edelbrock Performer RPM FE Aluminum, Ford Cast-Iron Standard, 427 Medium-Riser, 427 Low-Riser, 428 Cobra Jet and Shelby Medium-Riser Aluminum cylinder heads
- Does not fit 427 high-riser or tunnel-port heads
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
