Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

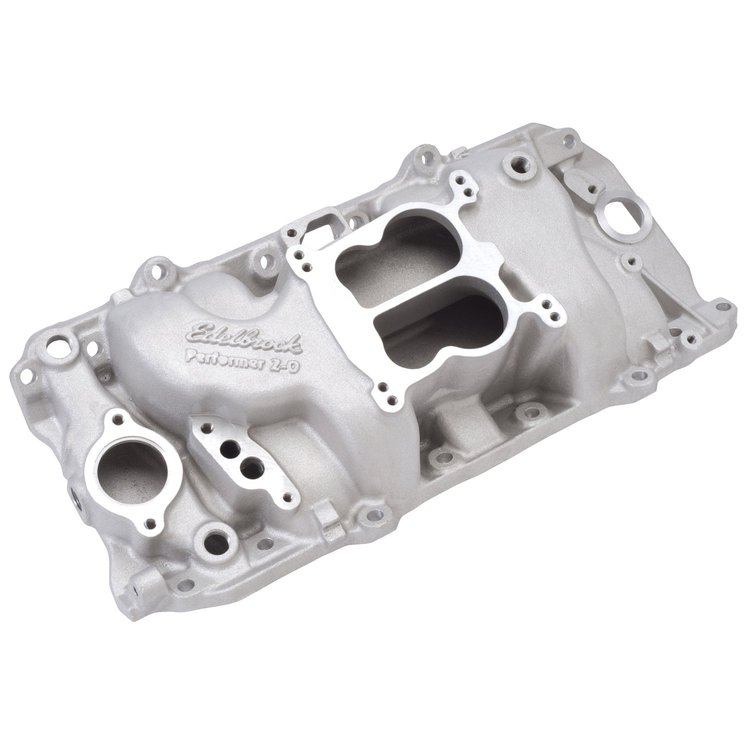

Big Block Chevy 396-502ci
- Performer Intake Manifold
- Big Block Chevy 396-502ci (Oval Port)
- 4-bbl Spread Bore Carb Flange (EGR)
- Idle-5500 RPM Range
- Satin Finish
Designed for street big block Chevy 396-502 using general duty oval port cylinder heads. For 396, 402, 427, and 454 with OE 4-bbl carb on 1965-73 non-CA passenger cars and 1966-83 trucks, Suburbans, and heavy vehicles except stock-equipped EGR
Installation Notes - Does not fit tall block
- Port Exit Dimensions: 1.70" x 1.68"
- Manifold Height: (A) 4.30", (B) 5.40"
- Carb Pad Height: 4.58" Click here to determine carburetor pad height
- Recommended Intake Gasket: JEGS p/n 555-210102
- Does not clear Corvette hood without modification
- Includes choke adapter #350-8961
- Uses square flange carb adapter plate p/n 350-2732 to adapt square bore carburetor.
Carb Recommendations - OE 4-bbl Q-Jet Carburetor-Use automatic choke rod p/n 350-9179 for divorced choke
Part TypeIntake Manifold
BrandEDELBROCK
Package Height7.5
Package Width15.2
Package Length23.5
Weight21.74 PG
Part CategoryPerformance Parts
UsageStreet/Hi-Performance
Number Of CarbsOne
EmissionWith EGR
Rpm RangeIdle -5500
Cylinder Head TypeOval Port- Small
Engine Make/SizeChevy Big Block (396-502)
Vendor Part Number3761
Package Qty1
Package TypeEA
