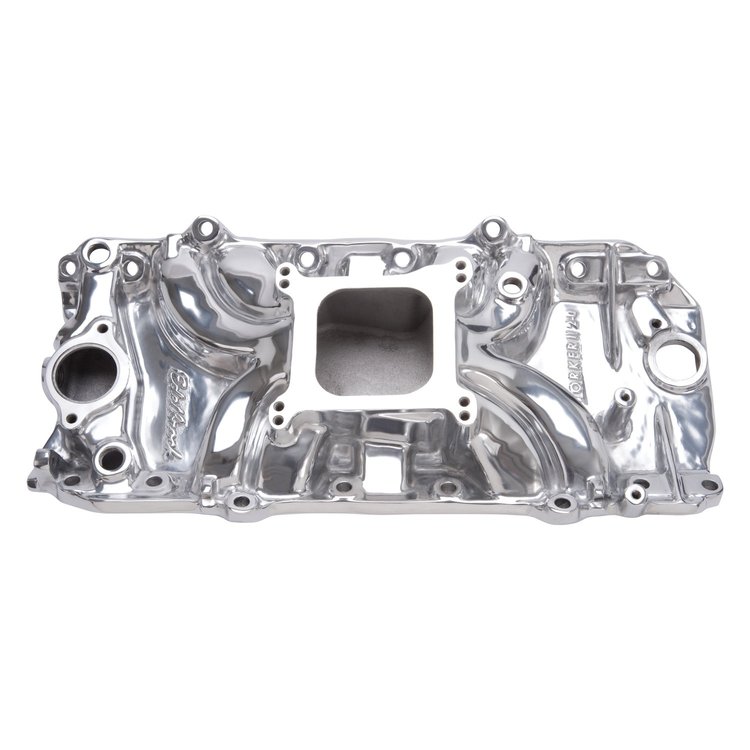

Chevy Big Block V8 396-502ci
- Torker II 2-0 Intake Manifold
- Big Block Chevy 396-502ci (Oval Port)
- Square-Bore Carb Flange (Non-EGR)
- 2500-6500 RPM Range
- Polished Finish
Designed for street 396-502 c.i.d. Big Block Chevy V8s with large oval-port cylinder heads (1975 & earlier). Will fit under stock hood of Corvette without modification. Manifold not equipped with EGR. Will not fit 'tall block' V8 engines.
Installation Notes: - Port Size: 1.35/1.60" width, 1.90" height
- Manifold Height: (A) 3.050" , (B) 4.600" (.25" taller than stock Corvette)
- Carb Pad Height 3.82 View Manifold 'A/B' Measurement Guide
- Recommended intake gasket; JEGS 555-210102 or Edelbrock 350-7203
- 1972-78 applications use 350-8031 throttle cable bracket
Carb Recommendations - Edelbrock 650 cfm Thunder AVS Carburetor Manual Choke p/n 350-1905 , Electric Choke p/n 350-1906
- Edelbrock 750 cfm Performer Carburetor Manual Choke p/n 350-1407 , Electric Choke p/n 350-1411
- Edelbrock 800 cfm Performer Carburetor Manual Choke p/n 350-1412 , Electric Choke p/n 350-1413
- Edelbrock 800 cfm Thunder AVS Carburetor Manual Choke p/n 350-1812 , Electric Choke p/n 350-1813
Part TypeIntake Manifold
BrandEDELBROCK
Package Height6.7
Package Width11.1
Package Length23.3
Weight16.6 PG
Part CategoryPerformance Parts
UsageRacing
Number Of CarbsOne
EmissionWithout EGR
Rpm Range2500-6500
Cylinder Head TypeOval Port- Large Aftermarket
Engine Make/SizeChevy Big Block (396-502)
Vendor Part Number50611
Package Qty1
Package TypeEA
