Designed for 413-426-440 c.i.d. Chrysler V8s. Use with Performer-Plus cam #350-2192 for low-end torque or Performer RPM cam 350-7194 for top-end power. Manifold measures 8.75' across block.

Installation Notes

• Will not fit 1962-64 Max Wedge heads
• Recommended Intake Gasket: JEGS p/n 555-210501
• Carb center to center distance: 6-7/16'
• Manifold Height: (A) 4.45" , (B) 4.88"
• Carb Pad Height: 4.66" Click here to determine carburetor pad height.
• Port Exit Dimensions: 1.64" x 1.94"

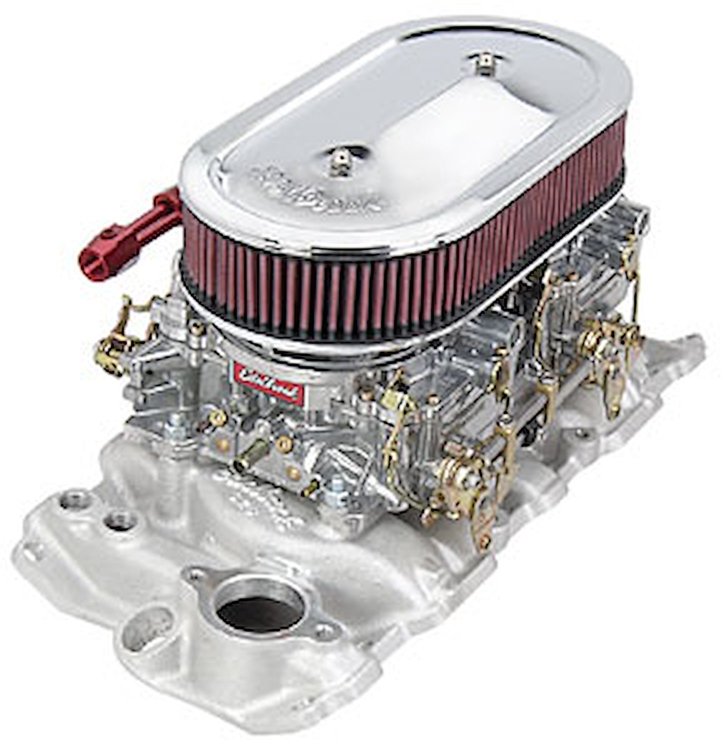

  Kit Includes:
• Edelbrock Intake Manifold 350-5440
• Edelbrock Throttle Linkage 350-7094
• Edelbrock Fuel Line 350-8088
• Edelbrock Carburetor 350-1405 (front orientation)
• Edelbrock Performer Carburetor - 350-1406 (rear orientation)
• Edelbrock Air Cleaner 350-1235
• Jegs Intake Manifold Gaskets 555-210501
• Jegs Carburetor Stud Kits 555-15840 (Qty. 2)
• Jegs Intake Bolts 555-83200

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
