Vehicle Info NeededEDELBROCKPART NUMBER: 350-7110

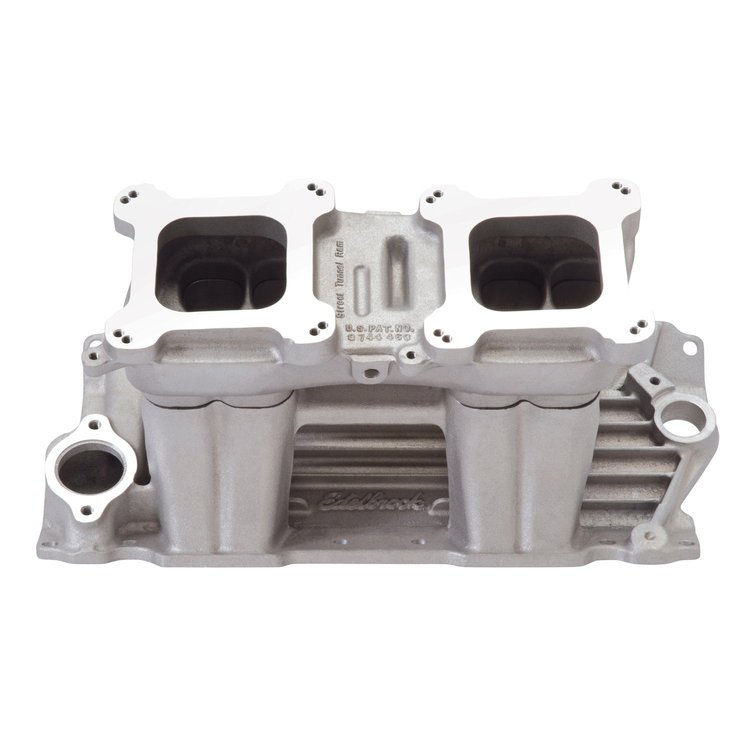

Street Tunnel Ram Intake Manifold Complete Manifold - Base and Top
$69995
3 left in stock
Ships Today
Lowest Price GuaranteeStreet Tunnel Ram
- Street Tunnel Ram Intake Manifold
- Complete Manifold - Base and Top
- Small Block Chevy
- 4150-style Square Bore Carb Flanges
- Standard Port Location
- 3500-7500 RPM Range
- Satin Finish
- Port Exit Dimensions: 1.12" x 2.12"
- Manifold Height: (A) 9.00", (B) 9.60"; Carb pad height = 9.30' Click here to determine carburetor pad height
- Will not fit 1987 and later cast iron heads.
- Manifold top has vacuum outlet for power brakes.
- Manifold will accept forward and sideways mounted carburetors.
- Will not accept HEI distributor.
Installation Notes: - Recommended Carburetor: Edelbrock Performer Series 500 cfm p/n 350-1404
- Recommended Carburetor: Edelbrock Thunder Series AVS 500 cfm p/n 350-1802
- Recommended Intake Gasket: JEGS p/n 555-210001
Note: For low end torque, use with Torker Plus Camshaft Kit p/n 350-2002. For more top end power, use with Performer RPM Camshaft Kit p/n 350-7102.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIntake Manifold
BrandEDELBROCK
Package Height12.25
Package Width14.0
Package Length24.0
Weight25.3 PG
Part CategoryPerformance Parts
Engine Block StyleStock/OEM standard deck
UsageStreet/Hi-Performance
Number Of CarbsTwo
Intake MaterialAluminum
PositionN/A
Intake StyleTunnel Ram
EmissionWith EGR
QuantitySold individually
Cylinder Head TypeStandard
Intake FinishNatural
Carburetor QuantityTwo
Engine Make/SizeChevy Small Block
Intake Section IncludedComplete
Basic Operating Rpm Range3,500-7,500
EgrWithout EGR
Rpm Range3500-7500
Part FitmentSemi Universal
Intake Manifold Height9.3 in (236.22 mm)
Vendor Part Number7110
Package Qty1
Package TypeEA
