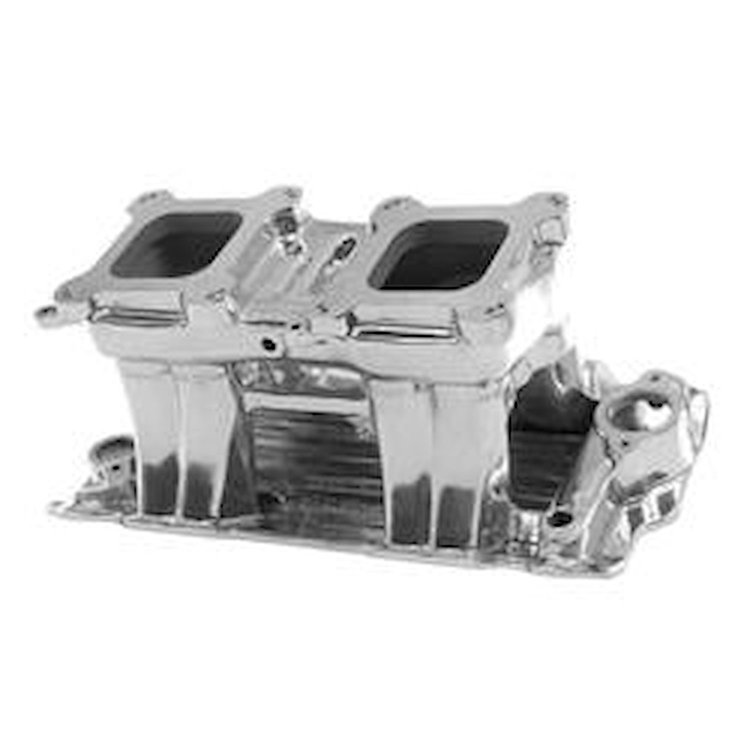

Street Tunnel Ram Intake Manifold Complete Manifold - Base and Top

Name: Street Tunnel Ram Intake Manifold Complete Manifold - Base and Top
Brand: EDELBROCK
SKU: 350-71101
Price: 1269.95 USD
Availability: InStock

^$1,269⁹⁵

Ships on 11/25/2026

Lowest Price Guarantee

Street Tunnel Ram

Complete Manifold - Base and Top
Small Block Chevy
4150-style Square Bore Carb Flanges
Standard Port Location
3500-7500 RPM Range
Polished Finish
Port Exit Dimensions: 1.12" x 2.12"
Manifold Height: (A) 9.00", (B) 9.60"; Carb pad height = 9.30' 350-1404
Recommended Carburetor: Edelbrock Thunder Series AVS 500 cfm p/n 350-1802
Recommended Intake Gasket: JEGS p/n 555-210001

Note: For low end torque, use with Torker Plus Camshaft Kit p/n 350-2002. For more top end power, use with Performer RPM Camshaft Kit p/n 350-7102.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

Street Tunnel Ram Series

3500-7500+ RPM

The Edelbrock Street Tunnel Ram Intake Manifold is designed for use on 302-327-350-400 c.i.d. small-block Chevy V8s operating between 3500-7500 rpm where low-end torque is not a prime factor. Great for engines with slightly modified or performance aftermarket heads. Applications include street machines, street rods, pro street and marine.

The Edelbrock Street Tunnel Ram intake manifold transforms your small-block Chevy build by delivering unmatched top-end power while maintaining a street-ready performance profile. Engineered specifically for 302–400 cid engines operating below 7,500 RPM, this manifold brings a bold combination of flow dynamics and craftsmanship to every drive.

Crafted from high-quality aluminum and precision-machined in Edelbrock’s state-of-the-art facility, this design offers durability and performance in every bolt. Its dual-plane, tunnel-ram layout promotes efficient airflow and optimally spaced carburetor mounting—with center-to-center spacing of approximately 8.875 inches.

Key Benefits at a Glance:

Peak Performance: Generates significant top-end horsepower thanks to long, straight runners suited for higher RPM builds.
Custom Tuning Options: Tailor your powerband with Edelbrock’s recommended camshafts—use one for stronger low-end torque, or upgrade to Performer RPM variants for aggressive high-end response.
Versatile Installation: Accepts both forward and sideways carburetor mounting and includes a vacuum outlet for systems with power brakes.
Street-Smart Efficiency: While originally designed for performance, this manifold has been shown in testing to deliver enhanced torque across a wide RPM range—making it more streetable than traditional tunnel ram configurations.

Whether your build needs the aggressive gains of a small block mopar tunnel ram alternative or you're searching for an edelbrock tunnel ram engineered for small-block Chevy builds, this manifold checks every box. For those aiming to stand out with a refined sbc tunnel ram setup, the Edelbrock Street Tunnel Ram ensures you get the power, polish, and performance you demand.

Upgrade your engine with a manifold that blends form and function—because powerful performance deserves precision engineering.

Part TypeIntake Manifold

Product LineEdelbrock Street Tunnel Ram Intake Manifolds for Small Block Chevy

BrandEDELBROCK

Package Height7.3

Package Width15.1

Package Length23.6

Weight24.52 PG

Part CategoryPerformance Parts

Engine Block StyleStock/OEM standard deck

UsageStreet/Hi-Performance

Number Of CarbsTwo
