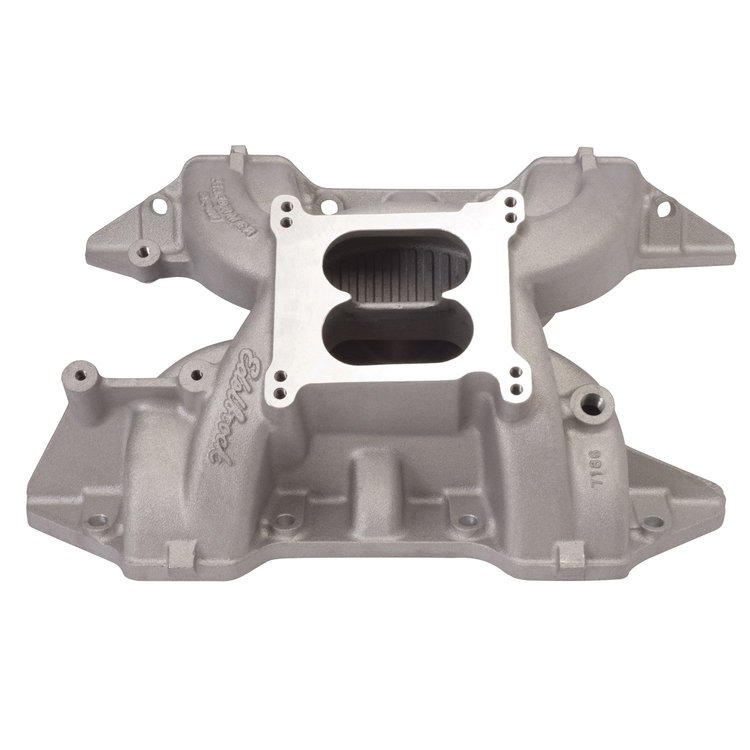

Designed for 361-383-400ci Chryslers that measure 7.75' across block. Dual-plane design results in excellent low-rpm torque and high-rpm power. High flow runner design will handle the popular stroker combinations. Recommended for high-performance street and strip applications. Will not fit 1962-64 Max Wedge heads.

Installation Notes:

• Port exit dimensions: 1.13' x 2.13'
• Manifold height: (A) 4.90' , (B) 5.80'
• Carb pad height = 5.35' Click here to determine carburetor pad height

Carburetor Recommendations:

• Edelbrock Thunder AVS 650cfm Carburetor Manual Choke p/n 350-1905 , Electric Choke p/n 350-1806
• Edelbrock Performer 750cfm Carburetor Manual Choke p/n 350-1407
• Edelbrock Performer 800cfm Carburetor Manual Choke p/n 350-1412 , Electric Choke p/n 350-1413
• Edelbrock Thunder AVS 800cfm Carburetor Manual Choke p/n 350-1812 , Electric Choke p/n 350-1813

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
