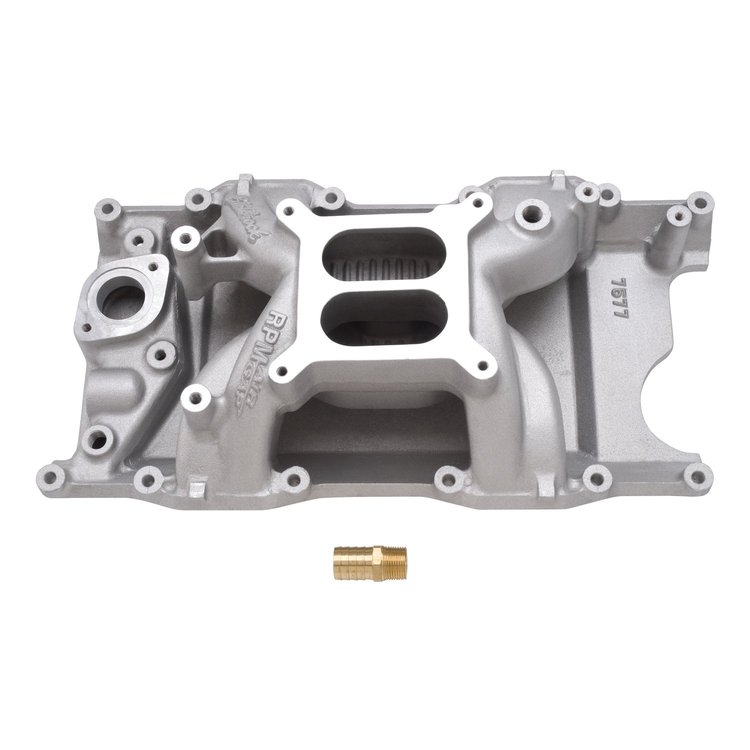

RPM Air-Gap Magnum Intake Manifold Chrysler: 1992-Up 5.2L & 1993-Up 5.9L
- RPM Air-Gap Magnum V8 Intake Manifold
- Small Block Chrysler Magnum
- 1992-Up 5.2L & 1993-Up 5.9L
- Square Bore 4-bbl Carb Flange (Non-EGR)
- 1500-6500 RPM Range
- Satin Finish

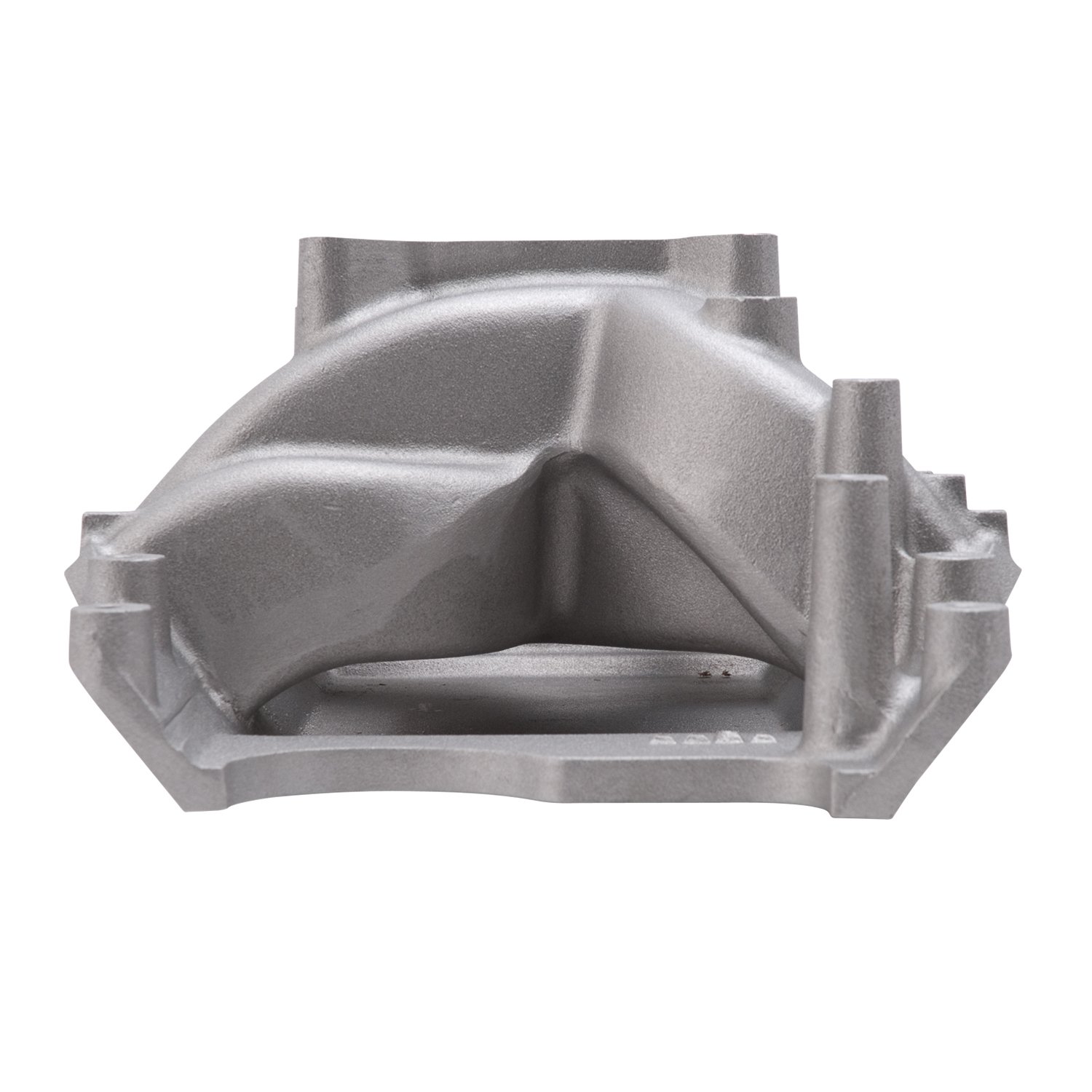

Designed for 1992-Up 5.2L 318 and 1993-Up 5.9L 360 Chrysler Magnum engines. Allows the use of a carburetor on these originally fuel-injected engines for early muscle car and street rod applications. This dual-plane intake manifold design incorporates the same race-winning Air-Gap technology that's been used on our Victor Series competition intakes for years for outstanding performance in the 1500 to 6500 rpm range. The Air-Gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power.
Installation Notes: - Port exit dimensions: 1.08"x 2.10"
- Manifold height: (A) 4.75' , (B) 5.80'
- Carb pad height = 5.27' Click here to determine carburetor pad height.
- Recommended Intake Gasket: Edelbrock p/n 350-7277
Carburetor Recommendations: - Edelbrock Performer 750cfm Carburetor Manual Choke p/n 350-1407 , Electric Choke p/n 350-1411
- Edelbrock Performer 800cfm Carburetor Manual Choke p/n 350-1412 , Electric Choke p/n 350-1413
- Edelbrock Thunder AVS 650cfm Carburetor Manual Choke p/n 350-1805 , Electric Choke p/n 350-1806
- Edelbrock Thunder AVS 800cfm Carburetor Manual Choke p/n 350-1812 , Electric Choke p/n 350-1813
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
