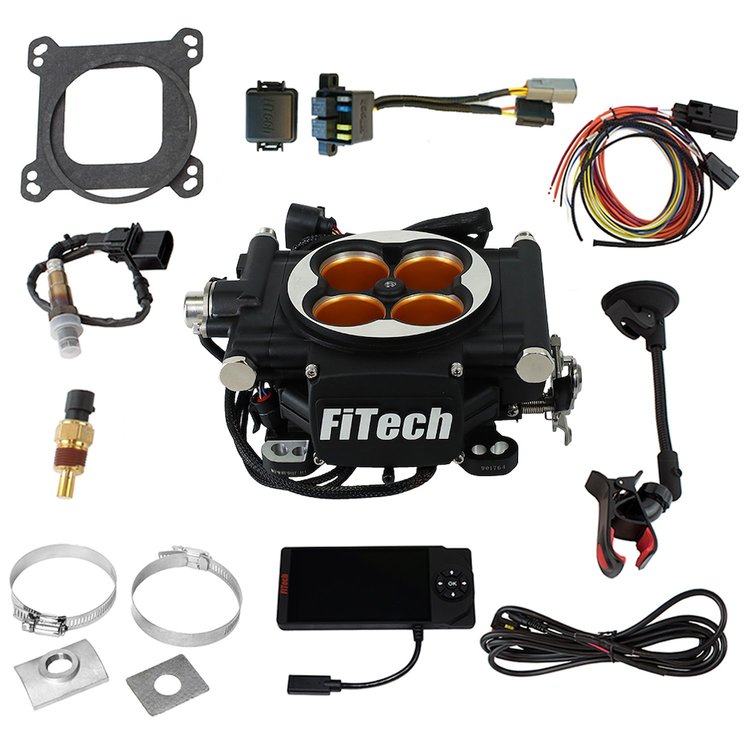

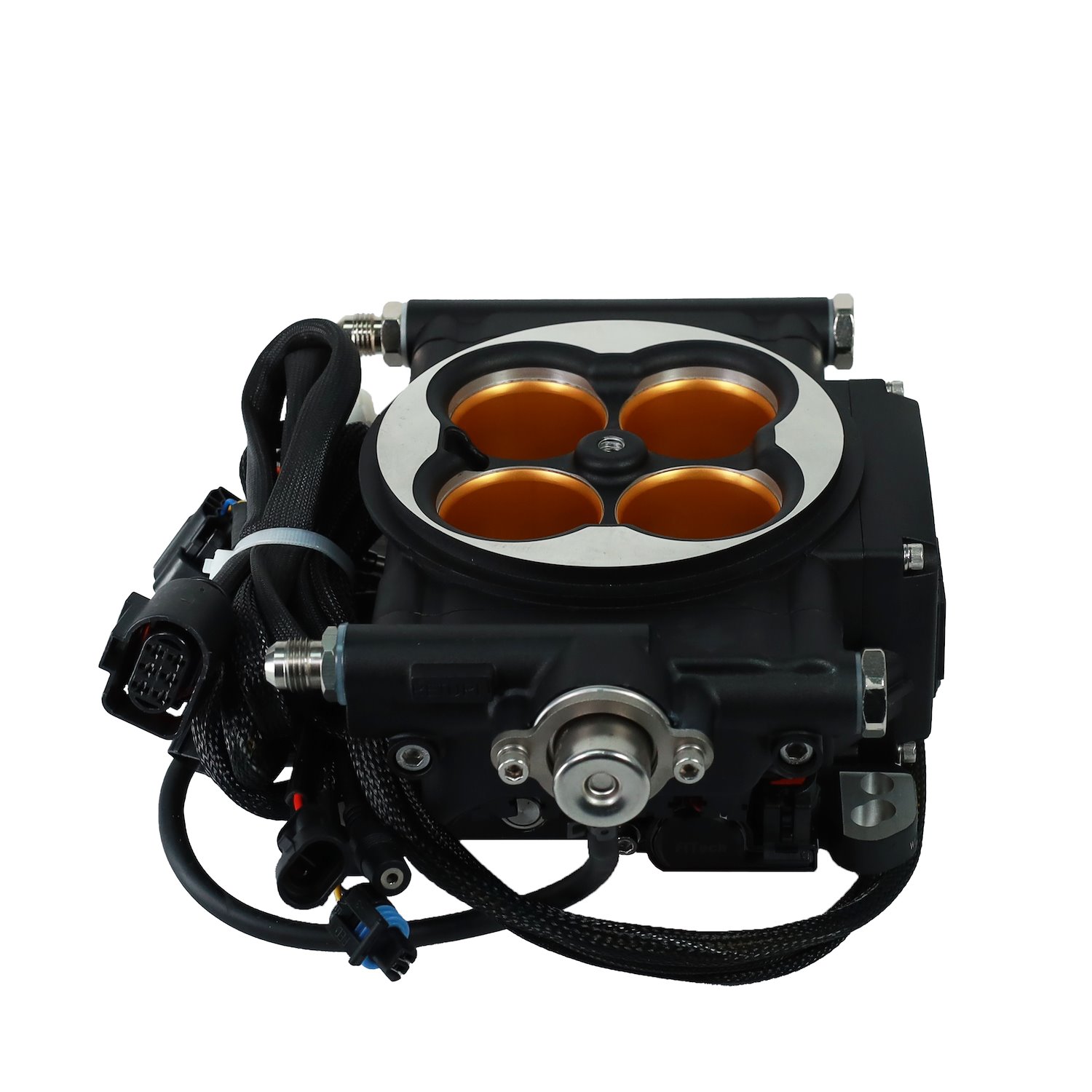

FiTech 30012 Go EFI-8 Power Adder Plus 1200 HP Throttle Body System Basic Kit

The Go EFI 8 1200 HP (Power Adder Plus) is the ultimate system for the serious power builder. This system features 8 high-flow injectors and is capable of fueling 1200HP! The Go EFI 8 1200HP is FiTech's top of the line system and comes with all of the data-logging, and pro-tuning software as standard features. Plus the Annular Discharge design is increased to 20 jet streams to handle the monster flow of this unit!

This system is capable of 25lbs of boost right out of the box and can be used in a blow thru turbo or blower application – or on a single roots style supercharger. You can also run a single stage of wet nitrous and control your A/F as well as ignition timing. **This kit is suitable for higher horsepower engines while equally at home on your daily driver 383.***Works from 250-1200HP! ***

Breakdown of Included Items

Throttle Body Dimensions

Hand-Held Controller Quick Start Guide

Features:

• Eight Precision Flow-Matched Injectors
• Supports up to 1,200 HP
• 4-Gig Data Logging
• 2.5 Bar Internal MAP Sensor
• Nitrous Control with Safety Features and Accessories for Nitrous Tuning
• Nitrous and Boost Specific Target Air Flow Ratio Options
• Boost and Nitrous Timing Retard Strategies
• Adjust and Control Ignition Timing with Touch Screen Controller
• Optimize Air/Fuel Ratios
• Works with a Capacitive Discharge Ignition Box to Control Timing (not required)
• Built-in Fuel Pressure Regulator
• Self-Tuning
• Bosch 4.2 Wide Band O2 Sensor
• ECU is Mounted on the Throttle Body
• Universal Base Fits any 4-bbl Intake Manifold
• Voltage Control Fuel Pump Control
• Wet Flow Technology
• Swirl Spray Annular Discharge Design
• Dual Fan Control
• Inlet Fitting: 9/16 in. -24 to 6AN
• Return Fitting: 10 mm x 1.25 to 6AN
• Applications: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, Etc. engines making 250 HP up to 1200 HP with a 4-barrel intake manifold.
• Replacement for any 4-barrel carburetors for engines with 250 HP up to 1200 HP.
• Use the same size air cleaner you would normally use for your 4-barrel carburetor.



Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
