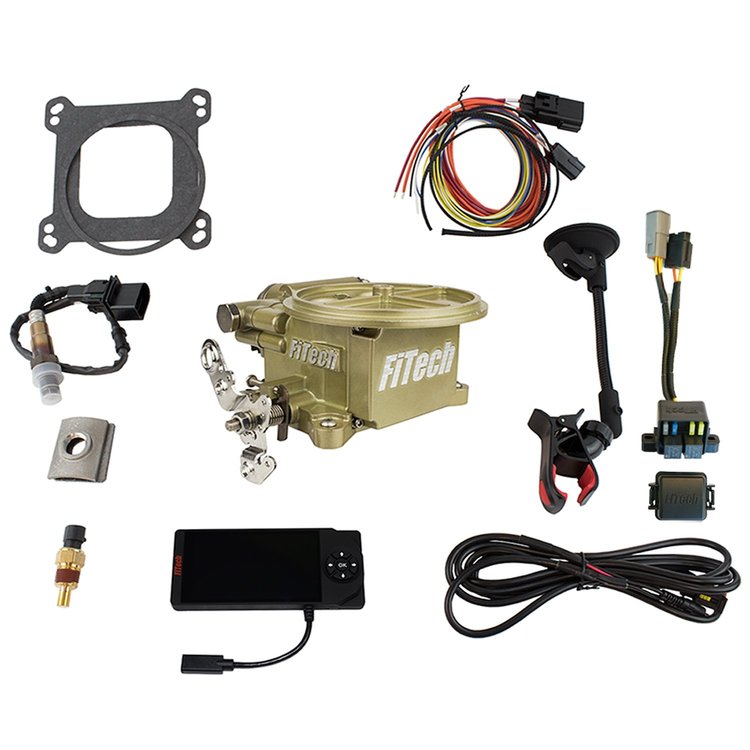

FiTech 39001 Go EFI 400 HP 2-Barrel Throttle Body System Basic Kit Includes:

• (1) 2-Barrel Throttle Body in Classic Gold Finish
• (1) Harness (plug-in pigtail user harness)
• (1) ECU (Mounted on throttle body)
• (1) Set of four injectors (installed in Throttle Body)
• (1) Idle Air Control (installed on Throttle Body)
• (1) Throttle Position Sensor (installed on Throttle Body)
• (1) Handheld Controller w/ billet case
• (1) Wide Band O2 Sensor
• (1) Wide Band O2 Sensor bung kit
• (1) TMAP Sensor (installed on throttle body)
• (1) TMAP Sensor Adapter (installed on throttle body)
• (1) Fuel pressure regulator (installed on throttle body)
• (1) 4+2 Pin Connector
• (1) Coolant Temperature Sensor
• (1) Gasket Kit (3) -6 AN Inlet Fittings (installed on Throttle Body)
• (1) Data Com Cable for the Handheld Controller
• (1) Handheld cable
• (1) 4 gigabyte SD Card (installed in the Handheld)
• (1) 3/8 NPT Reducer
• (1) Installation Guide

FiTech 39001 Go EFI 400 HP 2-Barrel Throttle Body System Basic Kit Features:

• Four FiTech flow matched injectors capable of up to 400hp
• Self-learning technology for a wide range of super fast dial-in correction
• Voltage control fuel pump control
• Suitable for crate engines and stock rebuilds
• Throttle body mounted ECU – for an easy installation
• Pre-programmed with bolt-n-go technology for out of the box performance with minimal input required
• Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (Preset to 43.5 PSI)
• Use of ignition timing control is optional and not required
• Accepts many common 5 1/8 in. OEM or after-market air cleaner assemblies
• Self-tuning ECU for the most user-friendly set-up tuning with no computer necessary
• Wide band O2 sensor with mounting kit that provides real time fuel MAP learning
• Only 4 wiring connections required (pump, key, power, tach)
• Includes a clamp-on oxygen sensor kit which ensures leak-free oxygen sensor installation, with a stainless steel clamp and a stainless steel (weldable) oxygen sensor flange
• High resolution full color touchscreen for initial setup, tuning, and gauge displays
• Annular Wet flow technology discharge design
• OEM style TPS/IAC and fuel pressure regulator

FiTech 39001 Go EFI 400 HP 2-Barrel Throttle Body System Basic Kit Notes:

• Designed for natural aspirated engines only
• Bolts directly to H-2300 intake bolt pattern
• Bolts to an R2G manifold with a Holley 2086 Adapter (sold separately)

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
