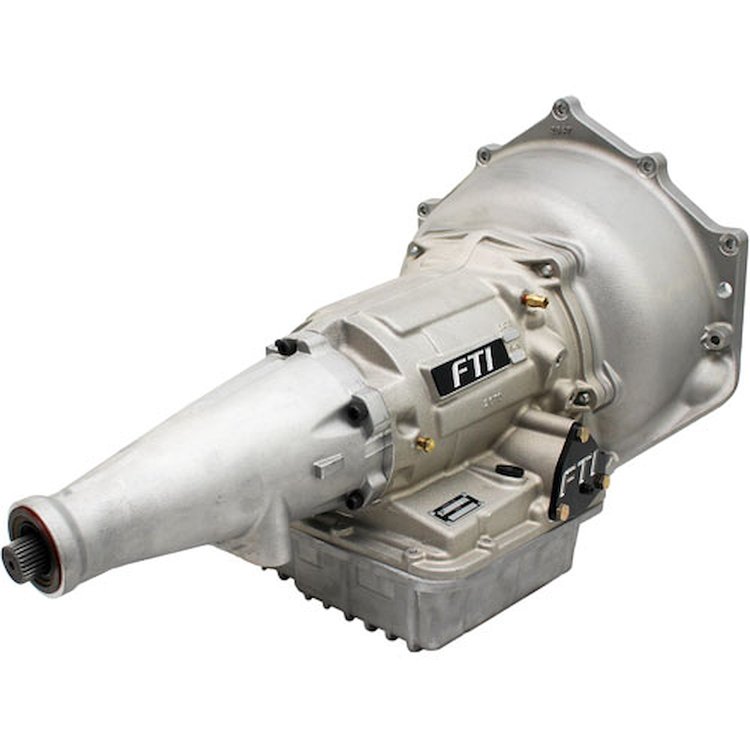

PPG5 Pro-Series GM Powerglide Transmission Pro-5
InfoVehicle Info Needed
FTI TRANSMISSIONS & CONVERTERSPART NUMBER: 107-PPG5

PPG5 Pro-Series GM Powerglide Transmission Pro-5

$4,40910$4899.00You Save$489.90
Truck Freight
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Level 5 Transmissions
Pro-Series GM Powerglide Transmission
  • Long Shaft
  • Aftermarket SFI Case
  • Billet Aluminum Pro Brake
  • Deep Aluminum Pan
  • 8+ Clutch Drum
  • 1.80 Planetary
  • 1,500 HP Rated
  • ERMET Input Shaft

    FTI PPG5 GM Powerglide Transmission Features:

    • For pro racing applications
    • FTI Billet aluminum valve body
    • Deep Aluminum pan
    • 8 clutch drum
    • Straight cut planetary
    • ERMET material input shaft
    • 4340 material output shaft
    • Roller bearing tail housing
    • FTI engineered powerglide transmissions house the greatest advances in powerglide racing technology. With the FTI creatively designed valve body and spiral springs these units do not creep when the brake is set. A must in today's racing world. With in-house machining & hand assembly by one builder, each and every clearance is set to exacting tolerances. These transmissions are designed to withstand the rigors of today's high-performance engines in an extremely demanding environment. Available in configurations capable of withstanding 3000 plus horsepower.

      Note: Speedometer drive gear and driven gear not included.
      Show More

      When your high-horsepower drag or street/strip build demands consistency, strength, and repeatable performance, FTI Pro Series Powerglide Transmissions deliver the reliability serious racers depend on. Engineered for 1,000HP and 1,500HP applications, these transmissions combine precision craftsmanship with proven components to create a drivetrain solution capable of thriving under extreme power levels and intense competition.

      Each fti powerglide transmission is hand-assembled by expert technicians and built using premium internals, including reinforced cases, high-strength gears, upgraded drums, and performance-focused clutch packs. The result is an ultra-stable transmission that provides crisp, predictable shifts and exceptional torque transfer—crucial for improving 60-foot times and achieving consistent passes.

      Although some racers consider multi-gear options, the simplicity and efficiency of a Powerglide remain unmatched. Its lightweight design, reduced rotating mass, and minimal parasitic loss create a dependable platform that continues to outperform more complex alternatives. That’s why many racers prefer this setup over a 3 speed powerglide transmission, especially in high-power drag racing where consistency and durability are key.

      When purchased through JEGS, drivers get a product backed by industry expertise and trusted performance heritage. Whether you're upgrading for bracket racing, index classes, grudge events, or street/strip builds, a jegs powerglide from FTI provides the confidence to push your vehicle harder with every pass.

      If your build demands elite-level performance and unwavering reliability, FTI Pro Series Powerglide Transmissions are the proven choice. Equip your race car with a transmission engineered to handle serious horsepower and dominate the track run after run.

    Part TypeAutomatic Transmission Torque Converter
    Product LineFTI Pro Series Powerglide Transmissions
    BrandFTI TRANSMISSIONS & CONVERTERS
    Package Height22.0
    Package Width22.0
    Package Length32.5
    Weight162.0 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part NumberPPG5
    Package Qty1
    Package TypeEA
