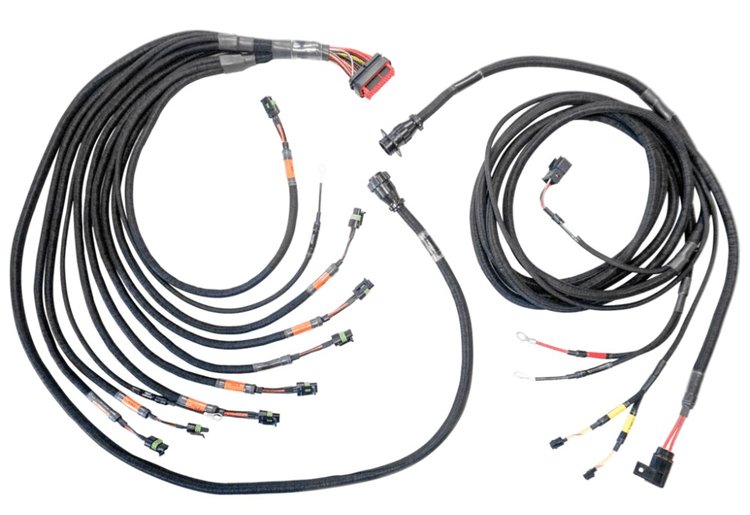

Fueltech 2002100143 PRO550/PRO600 V8 FTSpark-8 Harness is an auxiliary plug-and-play harness to allow the addition of an FTSpark-8 CDI Module and CDI Racing Coils to the PRO550 or PRO600 V8 Harness when using the FuelTech FT600 ECU

FuelTech 2002100142 Harness:

• V8 engines with 1,2,3,4, right bank and 5,6,7,8, left bank cylinder numbering
• For use with FTSpark-8 and CDI Racing Coils
• Plug-and-play with the PRO600 V8 Harness
• Uses the "B" output (gray wires) on the PRO600 V8 Harness
• Single wire serial BUS connection only works with FuelTech ECUs FT450 and above
• (10)-Way connector for connection to ECU
• CPC firewall connector
• Power and ground ring terminals for battery connection

Note: Harness will require modifications and 7 additional output wires when used with other manufacturers ECUs
