The Ti4L unit is an expansion module for the NEXUS ECU and VCU. It is programmed using NSP software. Rebel LS users will follow the simple set-up wizard in the Haltech Connect App. Easy set-up is not the only feature! We've also developed smart long-term learning strategies via closed-loop line pressure control, which means shifting gets better the more you drive.

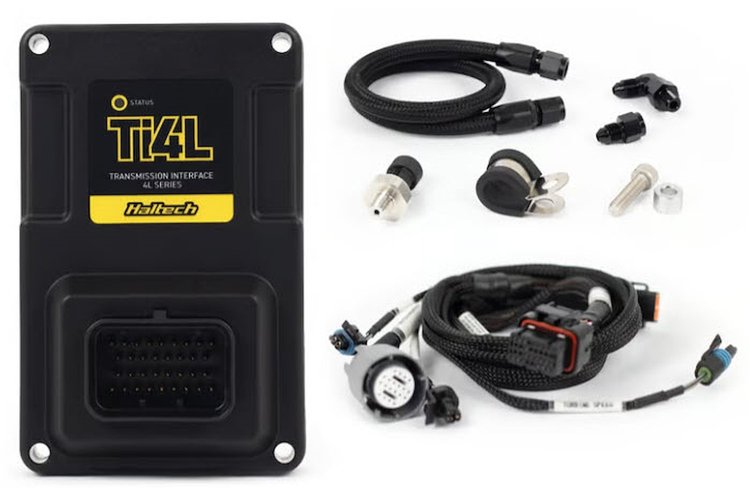

HT-196001Ti4L Transmission Interface Kit Includes:

• Cased Device Nexus Ti4L Transmission Interface
• HT-187000 Nexus Series Transmission Harness
• 500 psi Pressure Sensor
• Male to 1/8 NPT Male 90 Deg Black Fitting
• 1/8 in. npt Female to -4 AN Male Black Adapter
• 10 mm Aluminium Spacer for M8 Bolt
• Hose Assembly -4AN Female to -4AN Female [Black]
• Insulated P-Clip 15 mm ID / M8
• M8 Socket Head Cap Screw SS304 Stainless M8 x 30 mm
• Quick Start Guide

HT-196001Ti4L Transmission Interface Kit Features:

• Plug and play with Nexus Rebel LS terminated harness
• Easy setup wizard for Rebel LS ECU
• Programmed and Setup via NSP Software or Haltech Connect App
• Long-term learning strategies via closed-loop line pressure control

HT-196001Ti4L Transmission Interface Kit Fitment Notes:

• Does not support Elite / Platinum / Legacy ECUs
• 4L60E, 4L65E, 4L70E (Non-4x4 2006-2008 only, 2009 onwards use different pinouts on the main transmission connector)
• 4L80E, 4L85E (Non-4x4 1994 onwards only, 1991-1993 use a different main transmission connector)
