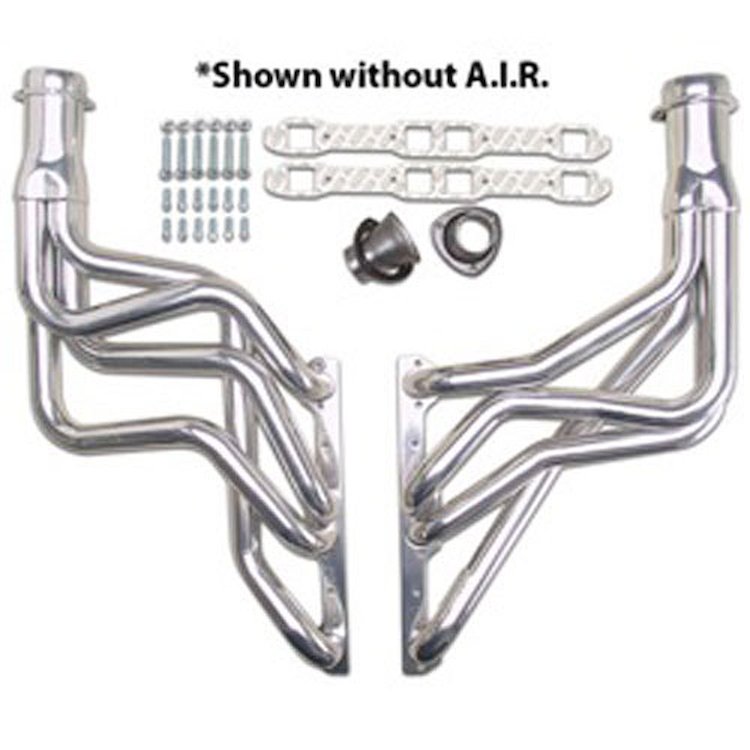

Standard Duty HTC Coated Full-Length Headers 1967-81 Camaro 283-400
InfoVehicle Info Needed
HEDMANPART NUMBER: 500-66271

Standard Duty HTC Coated Full-Length Headers 1967-81 Camaro 283-400

$70899
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

GM Cars
    Standard Duty HTC Coated Full-Length Headers
  • 1967-81 Camaro 283-400
  • 1968-79 Nova 283-400
  • 1-5/8" Tube, 3" Collector

  • Includes parts necessary to retain emission devices (1975-79 vehicles, including production date to 12-31-79 registered as 1980, only non-feedback systems are 50-state legal)
  • Will not fit 1967-69 Saginaw close ratio P/S with 825 power steering box
  • Modification to stock exhaust required to retain catalytic converter
  • For 1964-74 vehicles with A.I.R. system (considered OE replacement when existing emission controls are not removed from vehicle)

    Applications
  • 1967-81 Chevrolet Camaro
  • 1968 Chevrolet Chevy II
  • 1969-79 Chevrolet Nova

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Pontiac models for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your vehicle's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

Show More

These headers have a high temperature POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. Each set includes a pair of header gaskets, header flange bolts and collector bolts. No collector gasket is needed. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

Made in the USA

Features:

  • Coating offers protection up to 1400°.
  • Won't chip, peel, or "blue" like chrome.
  • Superior heat insulation.
  • Increased exhaust velocity for more power.

NOTE: Installing coated headers on an engine during the break-in period will cause discoloration. The use of factory manifolds or an old set of headers is recommended while breaking in an engine.

Part TypeHeader
Product LineHedman HTC Hi-Tech Coated Headers
BrandHEDMAN
Package Height8.25
Package Width16.5
Package Length39.0
Weight37.4 PG
Part CategoryPerformance Parts
Carb Eo NumberD-167-26 (pdf)
Header FinishSilver ceramic coated
Tube DirectionDown Swept
QuantitySold as a pair
Bolts/Studs IncludedYes
Cylinder Head Port ShapeRound
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Weld-UpNo
Collector AttachmentSlip fit
Flange StyleStandard
TunedYes
Collector Diameter4 in (101.6 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedNo
ApplicationAutomotive
Primary Tube Gauge18-gauge
Header StyleDownsweep dragster
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter2 1/4 - 2 3/8
Vendor Part Number66271
Package Qty1
Package TypeEA
