Made in USA

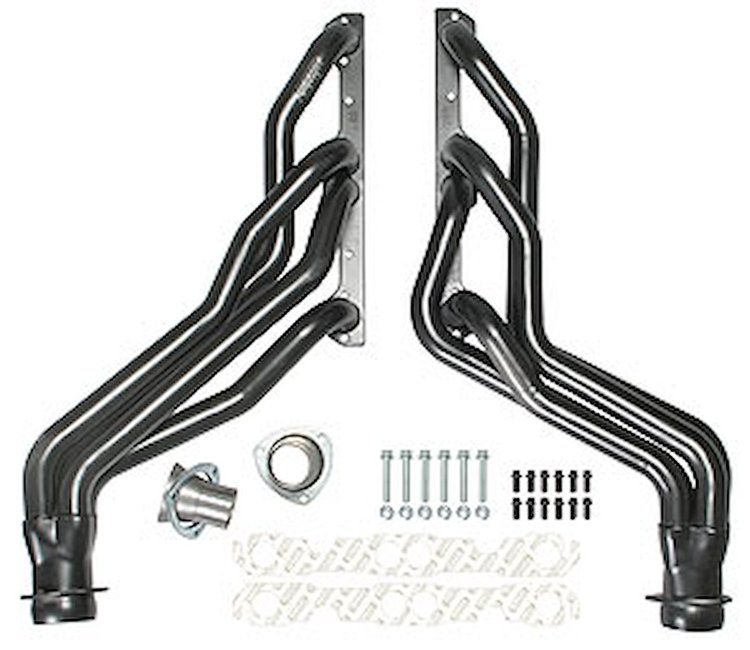

Hedman Black Maxx Ceramic-Metallic Coated Headers
InfoVehicle Info Needed
HEDMANPART NUMBER: 500-69443

Hedman Black Maxx Ceramic-Metallic Coated Headers

$64699
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

GM Trucks
Standard Duty Black Maxx Ceramic-Metallic Coated Full-Length Headers
  • 1988-95 CHEVROLET, GMC C1500, C2500, C3500, K1500, K2500, K3500, R20, R30, R2500, R3500, V30, V3500 PICKUP 5.0L, 5.7L; 2WD & 4WD
  • Tube Size: 1-5/8"
  • Collector Size: 3"

    • Without smog injection or injection heads.
    • Modification to stock exhaust required to retain catalytic converter.
    • Not legal for sale or use in California on pollution controlled motor vehicles.
    • Must modify rotary A/C bracket
    • Late model chassis. Engine offset to passenger side of vehicle.
    • Elite replacement gasket #27520.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • These standard-duty Hedman Black Maxx Ceramic-Metallic Coated Headers come from the factory with an extremely durable, protective black ceramic-metallic coating, and can withstand temperatures up to 1400 degree F. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your vehicle's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors. Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

    Show More

    Features:

    • The coating offers protection up to 1400°
    • Won't chip, peel, or "blue" like chrome
    • Superior heat insulation
    • Increased exhaust velocity for more power

    NOTE: Installing coated headers on an engine during the break-in period will cause discoloration. The use of factory manifolds or an old set of headers is recommended while breaking in an engine.

    Part TypeHeader
    Product LineHedman Black Maxx Ceramic-Metallic Coated Headers
    BrandHEDMAN
    Package Height8.25
    Package Width16.5
    Package Length39.0
    Weight24.0 PG
    Part CategoryPerformance Parts
    Coating/FinishSatin Black Ceramic
    Tube DirectionDown Swept
    Port ShapeRound
    Tube Size1.625 in (41.3 mm)
    MaterialMild Steel
    Collector Tube Size3 in (76.2 mm)
    Part FitmentSemi Universal
    Engine Make/SizeChevy 283-400
    ApplicationAutomotive
    Tube Diameter1.625 in (41.3 mm)
    Vendor Part Number69443
    Package Qty1
    Package TypeEA
