Made in USA
Standard Duty Black Maxx Ceramic-Metallic Coated S10 Engine Swap Headers
InfoVehicle Info Needed
HEDMANPART NUMBER: 500-69493

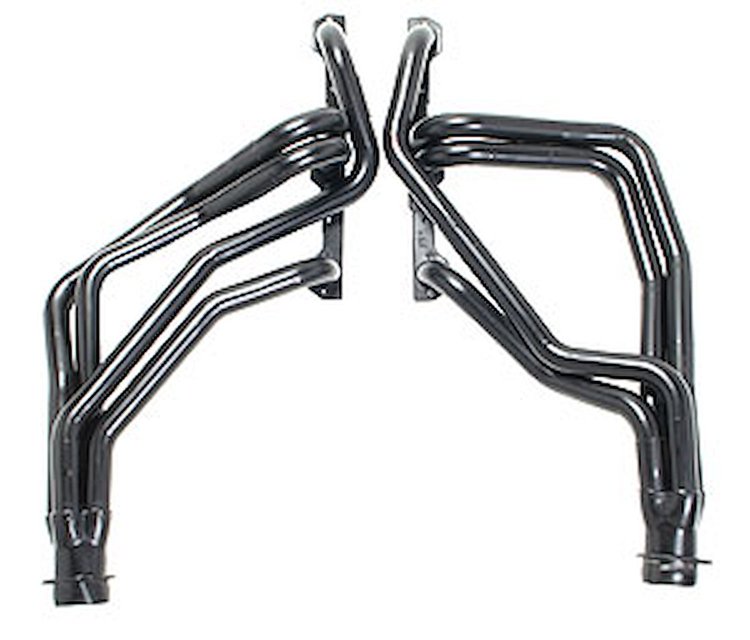

Standard Duty Black Maxx Ceramic-Metallic Coated S10 Engine Swap Headers

$67499
ShippingShips on 11/04/2026
Lowest PriceLowest Price Guarantee

GM Trucks
    Standard Duty Black Maxx Ceramic-Metallic Coated
  • S10 Engine Swap Headers
  • 1982-1993 Chevy S10 with Small Block Chevy
  • 1-5/8 in. Tube Diameter
  • 3 in. Collector Diameter
  • Full-Length Tube Design
  • For Automatic Transmissions Only

    Note: Oil filter relocation may be necessary for proper clearance. Trans-Dapt part number 969-1122 is recommended.

These standard-duty Hedman Black Maxx Ceramic-Metallic Coated Headers come from the factory with an extremely durable, protective black ceramic-metallic coating, and can withstand temperatures up to 1400 degree F. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your vehicle's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors. Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Show More

Features:

  • The coating offers protection up to 1400°
  • Won't chip, peel, or "blue" like chrome
  • Superior heat insulation
  • Increased exhaust velocity for more power

NOTE: Installing coated headers on an engine during the break-in period will cause discoloration. The use of factory manifolds or an old set of headers is recommended while breaking in an engine.

Part TypeHeader
Product LineHedman Black Maxx Ceramic-Metallic Coated Headers
BrandHEDMAN
Package Height9.63
Package Width18.25
Package Length39.25
Weight30.0 PG
Part CategoryPerformance Parts
Coating/FinishSatin Black Ceramic
Tube DirectionDown Swept
Port ShapeRound
Tube Size1.625 in (41.3 mm)
MaterialMild Steel
Collector Tube Size3 in (76.2 mm)
Part FitmentSemi Universal
Engine Make/SizeChevy 283-400
ApplicationAutomotive
Tube Diameter1.625 in (41.3 mm)
Vendor Part Number69493
Package Qty1
Package TypeEA
