Vehicle Info NeededHEDMANPART NUMBER: 500-69556

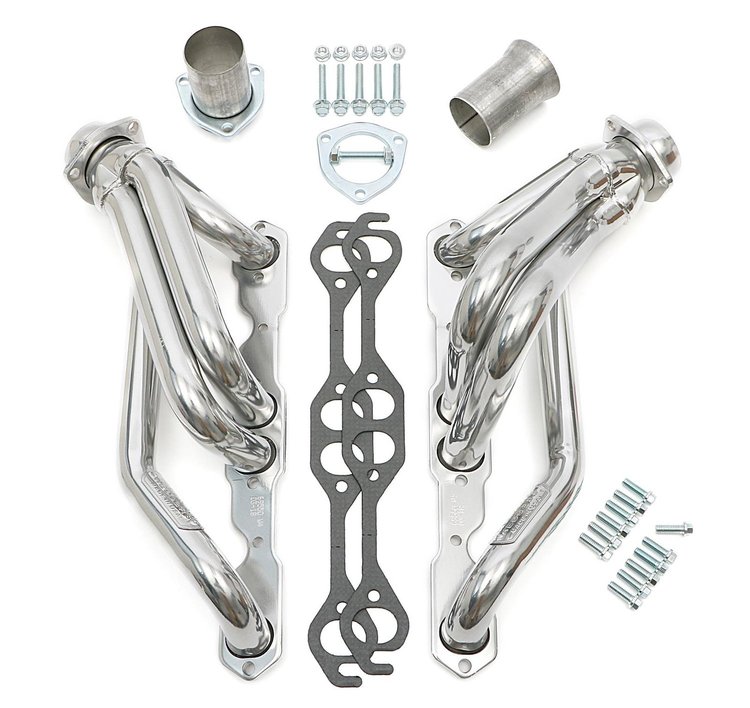

S10 Engine Swap Headers 1982-2000 S10 4x4 with Small Block Chevy 283-400
$42999
Ships on 11/04/2026
Lowest Price Guarantee1982-2004 Chevy S10 Small Block Chevy Engine Swap Headers
- S10 Engine Swap Headers
- 1982-2000 S10 4x4 with Small Block Chevy 283-400
- 1.5" Tube Diameter
- 2.5" Collector Diameter
- Shorty Design
- For Automatic Transmissions Only
- HTC Coated
- Thermal Protection Up To 1300 Deg.
- Will Not Chip Or Peel
- More Durable Than Chrome
- Will Not Blue Or Discolor
- Easy To Clean
- Better Heat Insulation
- Guaranteed Against External Rust-Through
- Best High Temp Coating On The Market Today
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Headers for Engine Swaps
Hedman's engine swap headers are specifically designed to make easy work out of some of the most popular engine swap projects. Each pair of headers is handcrafted from quality materials with a durable finish of your choice. Finishes include Black-Maxx satin black ceramic-metallic, HTC polished silver ceramic-metallic, or uncoated (with a temporary black paint).
Part TypeHeader
Product LineHedman Hedders Engine Swap Headers
BrandHEDMAN
Package Height8.0
Package Width16.0
Package Length39.0
Weight38.0 PG
Part CategoryPerformance Parts
Coating/FinishMetallic Ceramic
Tube DirectionDown Swept
Port ShapeRound
Tube Size1.5 in (38.1 mm)
MaterialSteel
Collector Tube Size2.5 in (63.5 mm)
Part FitmentSemi Universal
Engine Make/SizeChevy Small Block (262-400)
ApplicationAutomotive
Tube Diameter1.5 in (38.1 mm)
Vendor Part Number69556
Package Qty1
Package TypeEA
