Made in USA

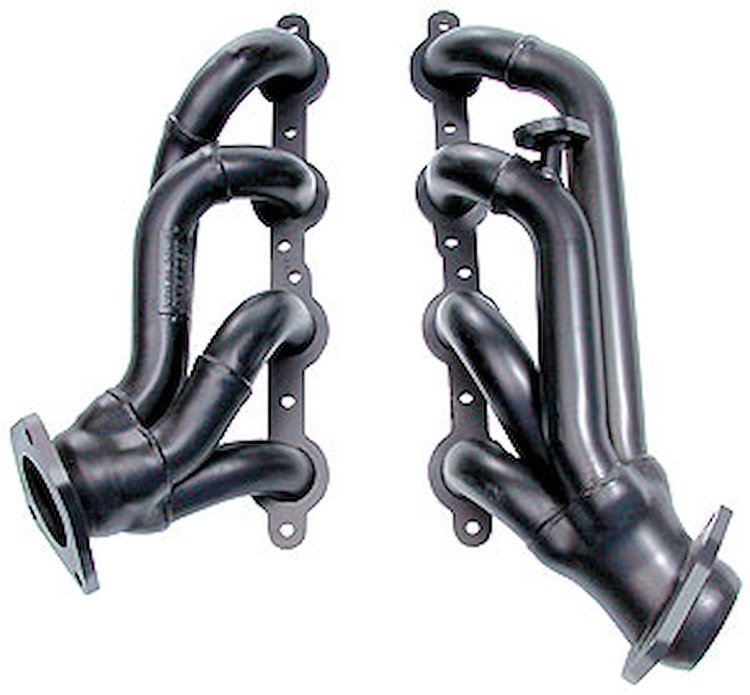

Standard Duty Uncoated Shorty Headers for 1999-2003 Suburban, Yukon, Escalade, Truck 2WD/4WD 4.8L/5.3L/6.0L
InfoVehicle Info Needed
HEDMANPART NUMBER: 500-69680

Standard Duty Uncoated Shorty Headers for 1999-2003 Suburban, Yukon, Escalade, Truck 2WD/4WD 4.8L/5.3L/6.0L

$41499
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Exhaust & Header Wrap 1 in. x 50 ft. x 1/16 in. Thick

JEGS

Exhaust & Header Wrap 1 in. x 50 ft. x 1/16 in. Thick

Part Number : 555-32052
$2699$29.99
You Save$3.00
Exhaust & Header Wrap 2 in. x 50 ft. x 1/16 in. Thick

JEGS

Exhaust & Header Wrap 2 in. x 50 ft. x 1/16 in. Thick

Part Number : 555-32057
$4899$53.99
You Save$5.00
Exhaust & Header Wrap 1 in. x 50 ft. x 1/16 in. Thick

JEGS

Exhaust & Header Wrap 1 in. x 50 ft. x 1/16 in. Thick

Part Number : 555-32062
$2799$30.79
You Save$2.80
Spark Plug Wire Boot Guards, Black [Set of 8]

JEGS

Spark Plug Wire Boot Guards, Black [Set of 8]

Part Number : 555-40300
$4499$49.99
You Save$5.00

GM Trucks
    Standard Duty Uncoated Shorty Headers
  • 1999-2003 Suburban, Yukon, Escalade, Truck 2WD/4WD 4.8L/5.3L/6.0L
  • Tube Size: 1-5/8"
  • Collector Size: Stock

    1999-03 CHEVROLET,GMC, CADILLAC C1500, C2500, C3500, K1500, K2500, K3500, SIERRA 1500, SIERRA 2500, SIERRA 3500, SILVERADO 1500, SILVERADO 2500, SILVERADO 3500, AVALANCHE 1500, AVALANCHE 2500; 4.8L, 5.3L, 6.0L; 2 & 4WD
    1999-03 CHEVROLET,GMC, CADILLAC C1500 SUBURBAN, C2500 SUBURBAN, K1500 SUBURBAN, K2500 SUBURBAN, TAHOE, YUKON, YUKON XL 1500, YUKON XL 2500, ESCALADE; 4.8L 5.3L 6.0L; 2 & 4WD
  • T.E.M.S.(tm) Tubular Exhaust Manifold System.
  • Shortie style hedder. Maximum ground clearance.
  • Designed for use with a Trans-Dapt throttle body spacer.
  • Replacement Part
  • With E.G.R.
  • Tubular Exhaust Manifold Systems are 50 state legal for years listed in catalog only.
  • EO#D167-31

    Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your vehicle's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors. These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. For the ultimate protection from the elements, click the following link to view Hedman's own HTC Hi-Tech Coated Headers.

Part TypeHeader
Product LineHedman Hedders Standard-Duty Uncoated Headers
BrandHEDMAN
Package Height8.8
Package Width13.6
Package Length21.9
Weight20.25 PG
Part CategoryPerformance Parts
Carb Eo NumberD-167-31 (pdf)
Header FinishPainted
Tube DirectionDown Swept
QuantitySold as a pair
Bolts/Studs IncludedYes
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Weld-UpNo
Collector AttachmentStock flange
TunedNo
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedNo
ApplicationAutomotive
Primary Tube Gauge18-gauge
Header StyleShorty
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.625 in (41.3 mm)
Vendor Part Number69680
Package Qty1
Package TypeEA
