Vehicle Info NeededHEDMANPART NUMBER: 500-69897

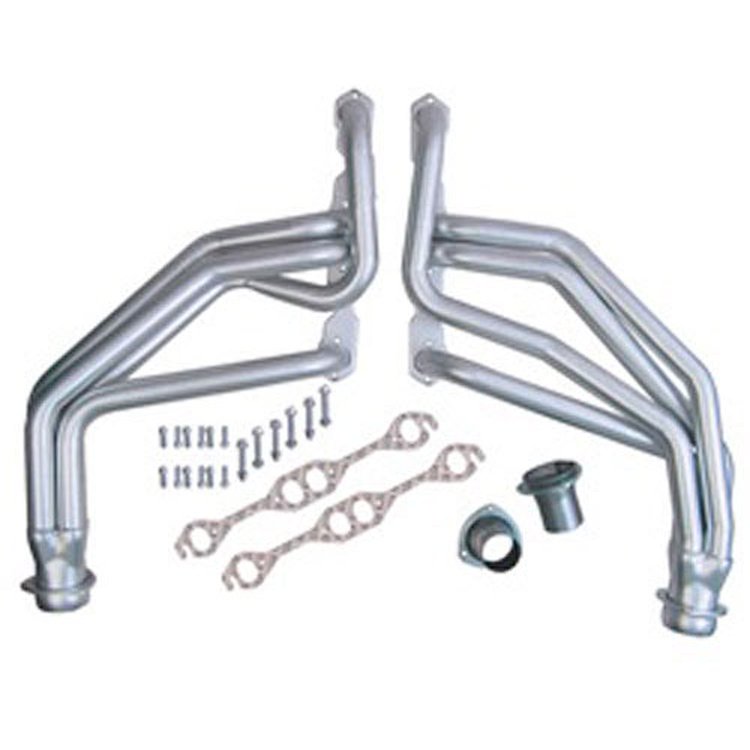

Elite Ultra-Duty HTC Coated Full Length Headers 1967-91 SB-Chevy Truck/SUV/P30 Van
$68699
Ships on 09/16/2026
Lowest Price GuaranteeGM Trucks/Vans/Motorhomes
- Elite Ultra-Duty HTC Coated Full Length Headers
- 1967-91 SB-Chevy Truck/SUV/P30 Van
- Tube Size: 1-5/8"
- Collector Size: 3"
1967-82 C10 PICKUP, C20 PICKUP, C30 PICKUP, C15/C1500, C25/C2500, C35/C3500, C1O SUBURBAN, C15/C1500 SUBURBAN, C20 SUBURBAN, C25/C2500 SUBURBAN, K10 SUBURBAN, K20 SUBURBAN, K15/K1500 SUBURBAN, K25/K2500 SUBURBAN, BLAZER, JIMMY 283-400ci; 2WD & 4WD
1967-1991 CHEVROLET P30 VAN 283-400ci; CLASS A MOTORHOMES - Vehicles equipped with large piston AC compressors require the use of bracket #20110. Sold seperately.
- Without smog injection or injection heads.
- Will fit with angle plug heads (Chevy aluminum only).
- Must modify rotary A/C bracket.
- Elite replacement gasket #27520.
- Designed for use with a Trans-Dapt throttle body spacer.
- Includes parts necessary to retain emission devices. (50 State)
- Modification to stock exhaust required to retain catalytic converter.
- For vehicles 1964 through 1974 without A.I.R. systems, considered as O.E.M. replacement parts when existing emission controls are not removed from vehicle.
- 1975-1991 only, 50 state legal for these years.
- EO#D167-9
Part TypeHeader
BrandHEDMAN
Package Height9.0
Package Width16.0
Package Length39.0
Weight41.3 PG
Part CategoryPerformance Parts
Carb Eo NumberD-167-9 (pdf)
Header FinishThermal coated
Tube DirectionDown Swept
QuantitySold as a pair
Bolts/Studs IncludedYes
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Weld-UpNo
Collector AttachmentBall and socket flange
Flange StyleStandard
TunedNo
Collector Diameter3 in (76.2 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedYes
ApplicationAutomotive
Primary Tube Gauge14-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.625 in (41.3 mm)
Vendor Part Number69897
Package Qty1
Package TypeEA
