Made in USA
Standard Duty Uncoated Headers for 1967-74 B-Body/E-Body
InfoVehicle Info Needed
HEDMANPART NUMBER: 500-78030

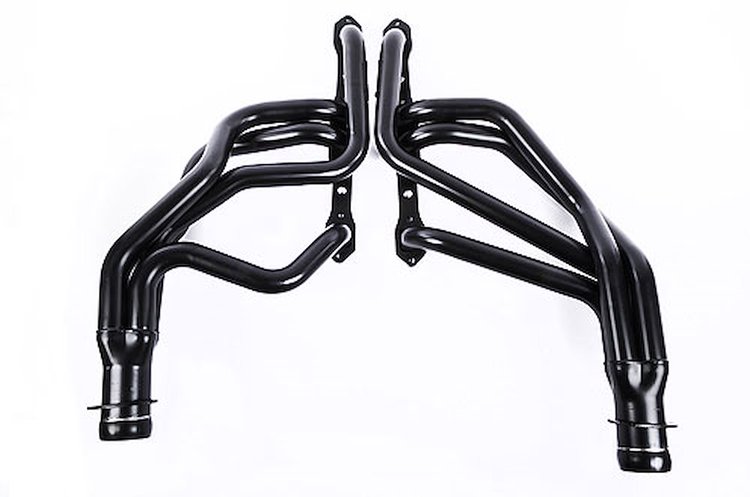

Standard Duty Uncoated Headers for 1967-74 B-Body/E-Body

$34999
ShippingShips on 11/03/2026
Lowest PriceLowest Price Guarantee

Chrysler-Plymouth-Dodge Cars
    Standard-Duty Uncoated Headers
  • Chrysler 361-440
  • 1962-74 B-Body/E-Body
  • 1966-74 Charger
  • 1967-74 Belvedere/Road Runner/Satellite/Super Bee
  • 1970-74 Barracuda & Challenger
  • Tube Size: 1-3/4"
  • Collector Size: 3"

  • Without smog injection or injection heads
  • Modification to shift linkage may be needed

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

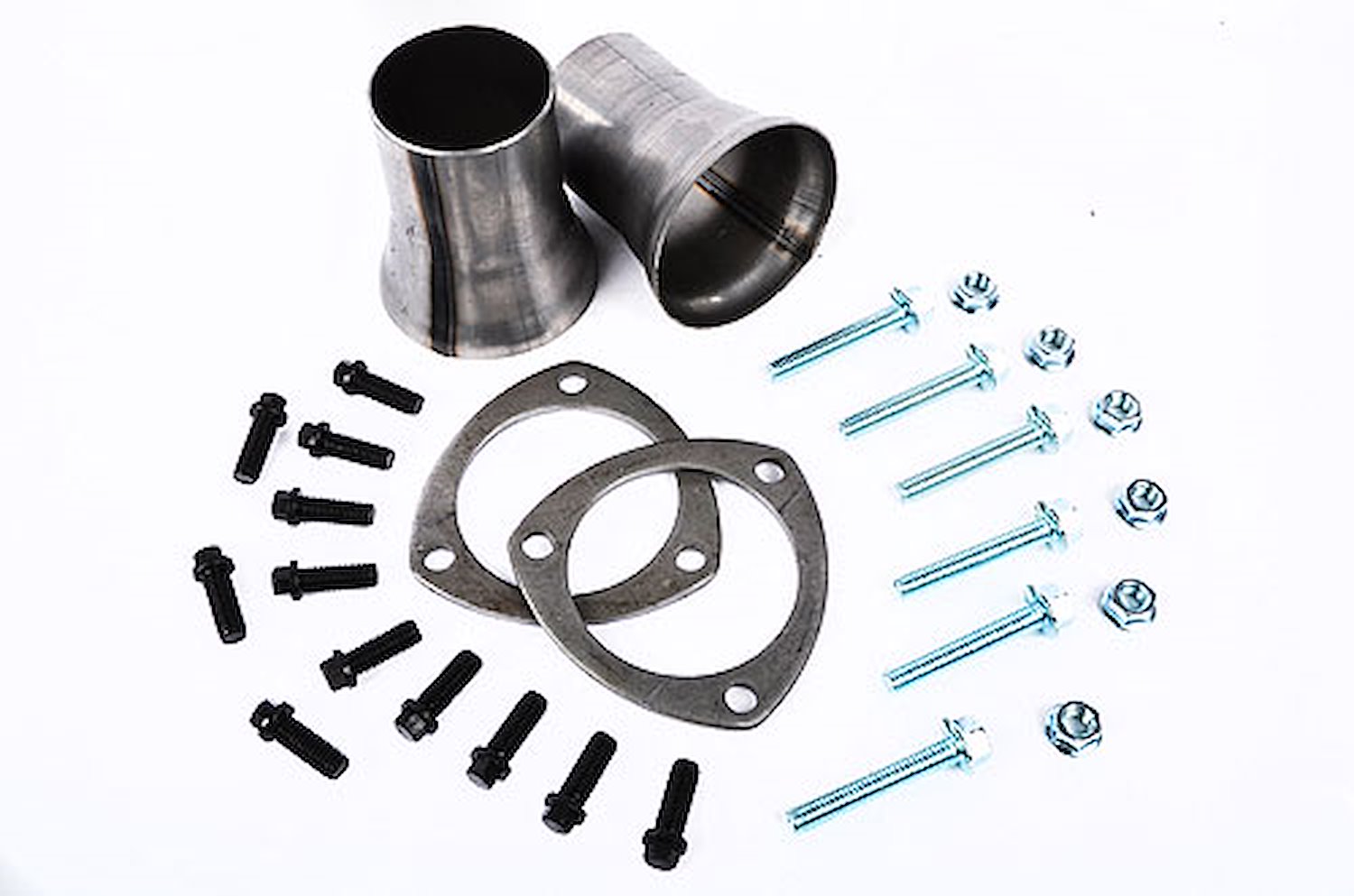

    Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your vehicle's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors. These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. For the ultimate protection from the elements, click the following link to view Hedman's own HTC Hi-Tech Coated Headers.

Part TypeHeader
Product LineHedman Hedders Standard-Duty Uncoated Headers
BrandHEDMAN
Package Height10.0
Package Width18.0
Package Length38.0
Weight34.96 PG
Part CategoryPerformance Parts
Header FinishPainted
Tube DirectionDown Swept
QuantitySold as a pair
Bolts/Studs IncludedYes
Cylinder Head Port ShapeRectangular
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Weld-UpNo
Collector AttachmentBall and socket flange
Flange StyleStandard
TunedNo
Collector Diameter3 in (76.2 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedYes
ApplicationAutomotive
Primary Tube Gauge18-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.75 in (44.5 mm)
Vendor Part Number78030
Package Qty1
Package TypeEA
