Made in USA
Standard Duty Black Maxx Ceramic-Metallic Coated 1982-97 Ranger 260-302W
InfoVehicle Info Needed
HEDMANPART NUMBER: 500-89503

Standard Duty Black Maxx Ceramic-Metallic Coated 1982-97 Ranger 260-302W

$44699
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Ford Trucks
    Standard Duty Black Maxx Ceramic-Metallic Coated
  • 1982-97 Ranger 260-302W
  • Tube Diameter: 1-1/2"
  • Collector Size: 2-1/2"
  • Shortie Style

  • Must use TD Performance mount kit P/N 969-9736.
  • Shortie style hedder. Maximum ground clearance

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

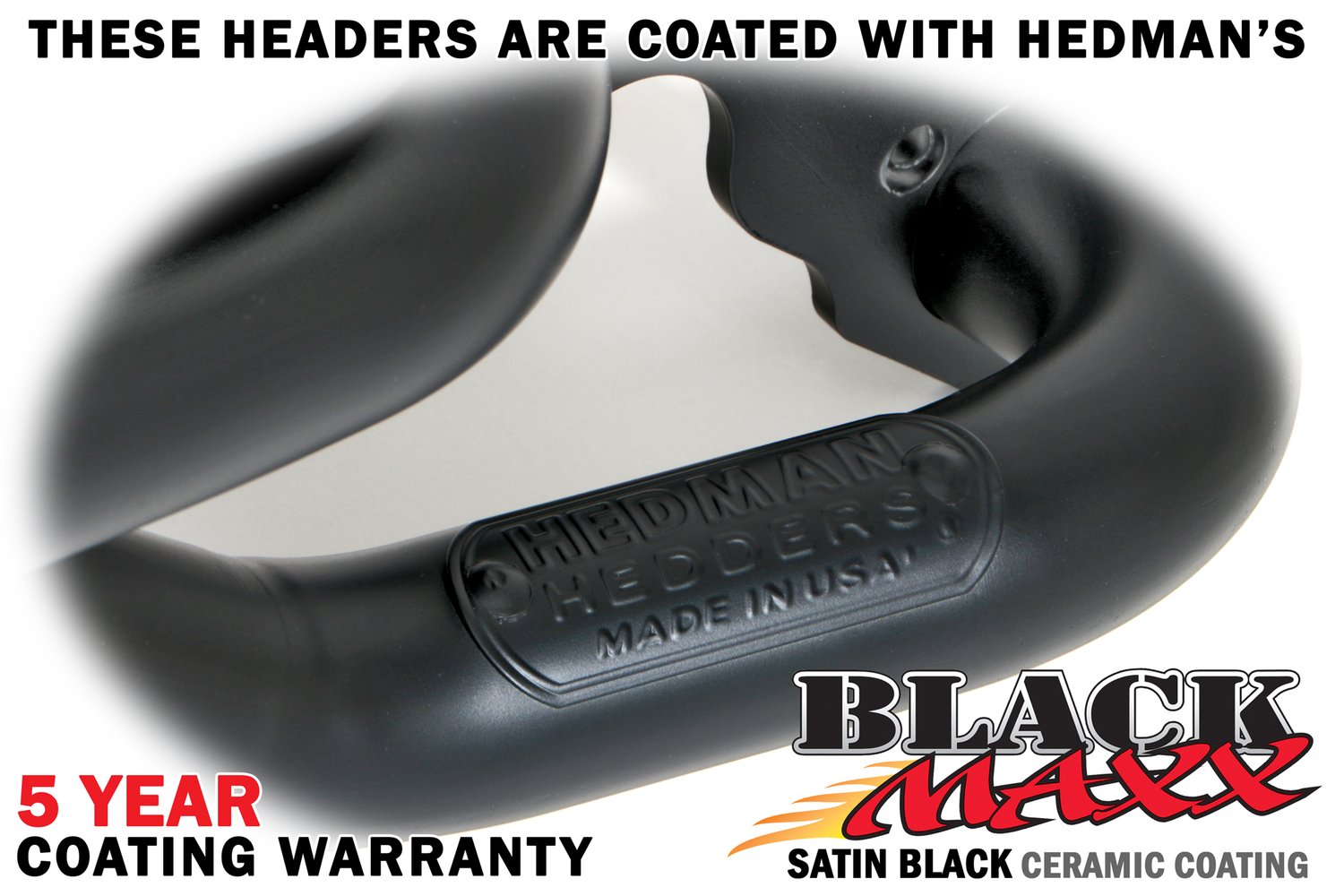

These standard-duty Hedman Black Maxx Ceramic-Metallic Coated Headers come from the factory with an extremely durable, protective black ceramic-metallic coating, and can withstand temperatures up to 1400 degree F. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your vehicle's exhaust system to bolt up, even if it is not perfectly aligned with the header collectors. Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Show More

Features:

  • The coating offers protection up to 1400°
  • Won't chip, peel, or "blue" like chrome
  • Superior heat insulation
  • Increased exhaust velocity for more power

NOTE: Installing coated headers on an engine during the break-in period will cause discoloration. The use of factory manifolds or an old set of headers is recommended while breaking in an engine.

Part TypeHeader
Product LineHedman Black Maxx Ceramic-Metallic Coated Headers
BrandHEDMAN
Package Height8.25
Package Width13.5
Package Length20.0
Weight15.0 PG
Part CategoryPerformance Parts
Coating/FinishSatin Black Ceramic
Tube DirectionDown Swept
Port ShapeSquare
Tube Size1.5 in (38.1 mm)
MaterialMild Steel
Collector Tube Size2.5 in (63.5 mm)
Part FitmentSemi Universal
Engine Make/SizeFord 260-302
ApplicationAutomotive
Tube Diameter1.5 in (38.1 mm)
Vendor Part Number89503
Package Qty1
Package TypeEA
