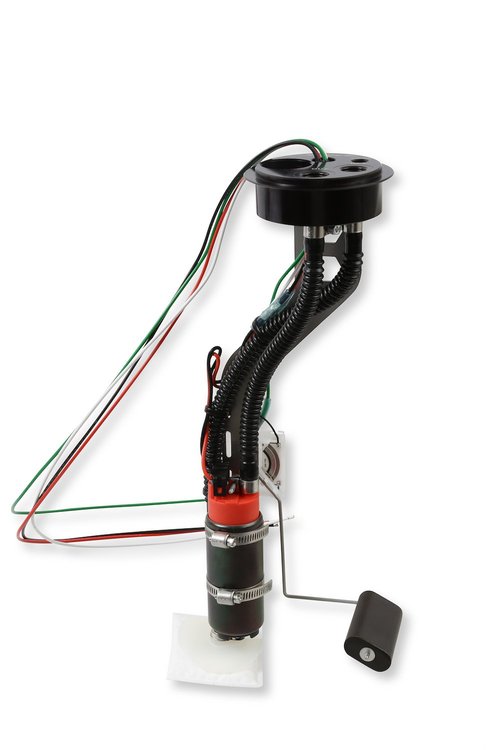

12-353 Sniper In-Tank Electric Fuel Pump Module 1988-1998 Chevy/GMC Truck (340 LPH)
InfoVehicle Info Needed
HOLLEYPART NUMBER: 510-12-353

12-353 Sniper In-Tank Electric Fuel Pump Module 1988-1998 Chevy/GMC Truck (340 LPH)

$41595
5 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM Truck
Sniper In-Tank Electric Fuel Pump Module
  • 1988-1998 Chevy/GMC Truck
  • 340 LPH Flow Rate
  • Requires Bypass Style Regulator
  • Supports 700 EFI Horsepower (HP) or 900 Carbureted HP
  • 0-90 Ohms Resistance
  • Bright Dip Black Finish

    Breakdown of Included Items

    Holley 12-353 Sniper In-Tank Electric Fuel Pump Module Features:

    • Free Flows 340 Liters Per Hour (LPH)
    • Requires Bypass (Return Style) Regulator Such as 555-15909, 555-159120, 510-12-879, or 510-12-880 (Sold Separately)
    • -6 AN O-Ring Outlet and Return Ports
    • Fuel Level Sending Unit is Pre-Calibrated to Factory Settings

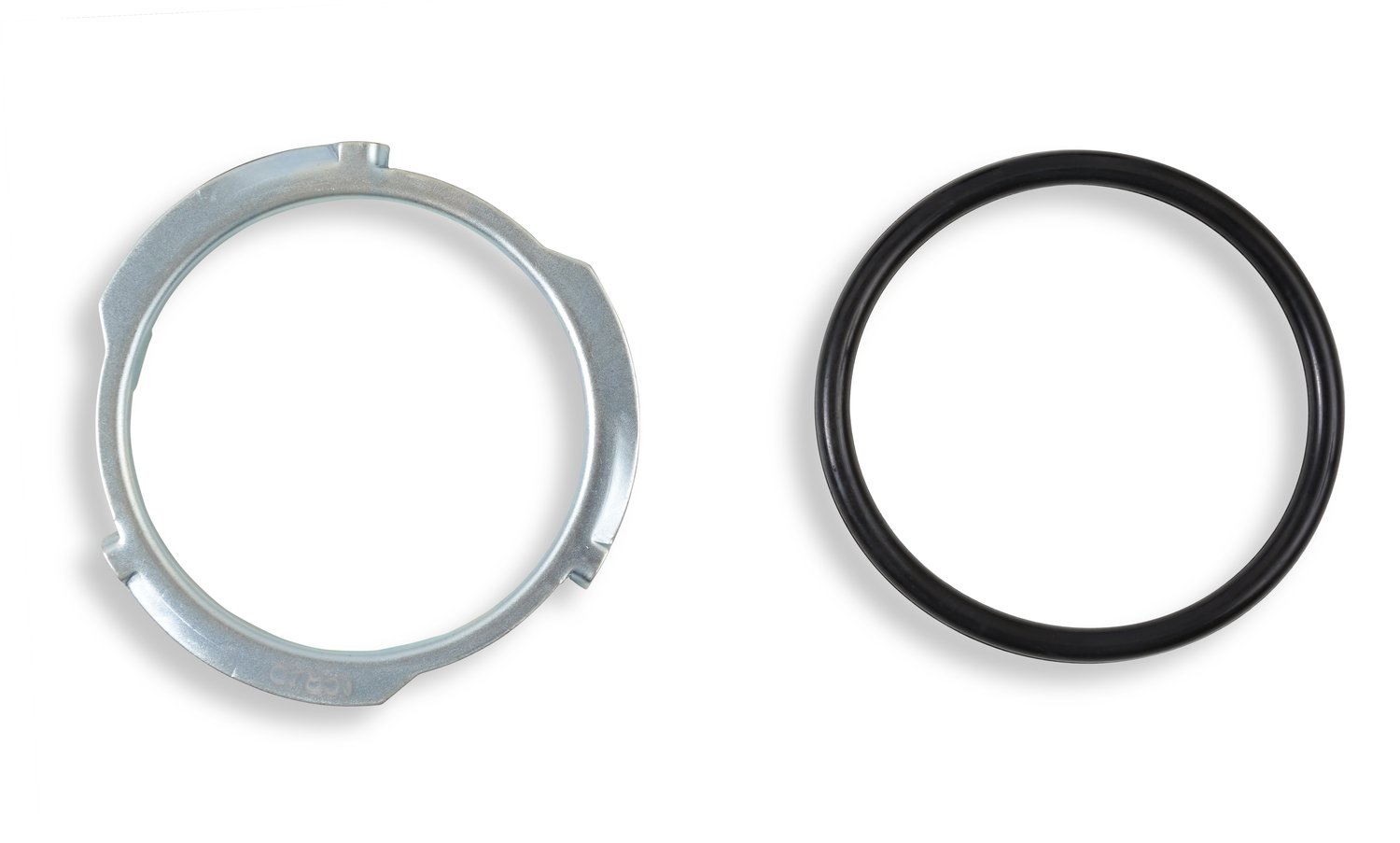

    • Fuel Tank Lock Ring, O-Ring, and Filter Sock Included
    • Black-Anodized Bright Dip Finish Resists Corrosion
  • Part TypeFuel Pump Module Assembly
    BrandHOLLEY
    Package Height4.4
    Package Width6.5
    Package Length14.7
    Weight3.21 PG
    Part CategoryPerformance Parts
    Sending Unit IncludedYes
    Cover Assembly IncludedYes
    Universal Or Specific FitSpecific Fit
    Outlet Size-6 AN O-ring
    Wire Quantity4
    Outlet Quantity (# Of Ports/Lines)1
    QuantitySold individually
    Resistance At Empty (Ohms)0
    Strainer IncludedYes
    Pump TypeElectrical
    Fuel TypeGas, E85
    Strainer LocationInternal
    Outlet AttachmentFemale O-ring
    Fuel Pressure RegulatorNo
    Mount TypeIn-Tank
    Number Of Ports On Cover4
    Type/SeriesFuel Delivery Module
    Cover MaterialBillet aluminum
    Gasket/Seal IncludedYes
    Part FitmentSemi Universal
    Seal And Lock Ring IncludedYes
    Resistance At Full (Ohms)90
    Free Flow Rate340 lph
    Fuel Level Sender Assembly IncludedYes
    Package Qty1
    Package TypeEA
