Vehicle Info NeededHOLLEYPART NUMBER: 510-12-354
12-354 Sniper Fuel Pump Module 1988-1998 GM C/K Series Truck (525 LPH)
$54995
Ships on 09/22/2026
Lowest Price GuaranteeGM Truck

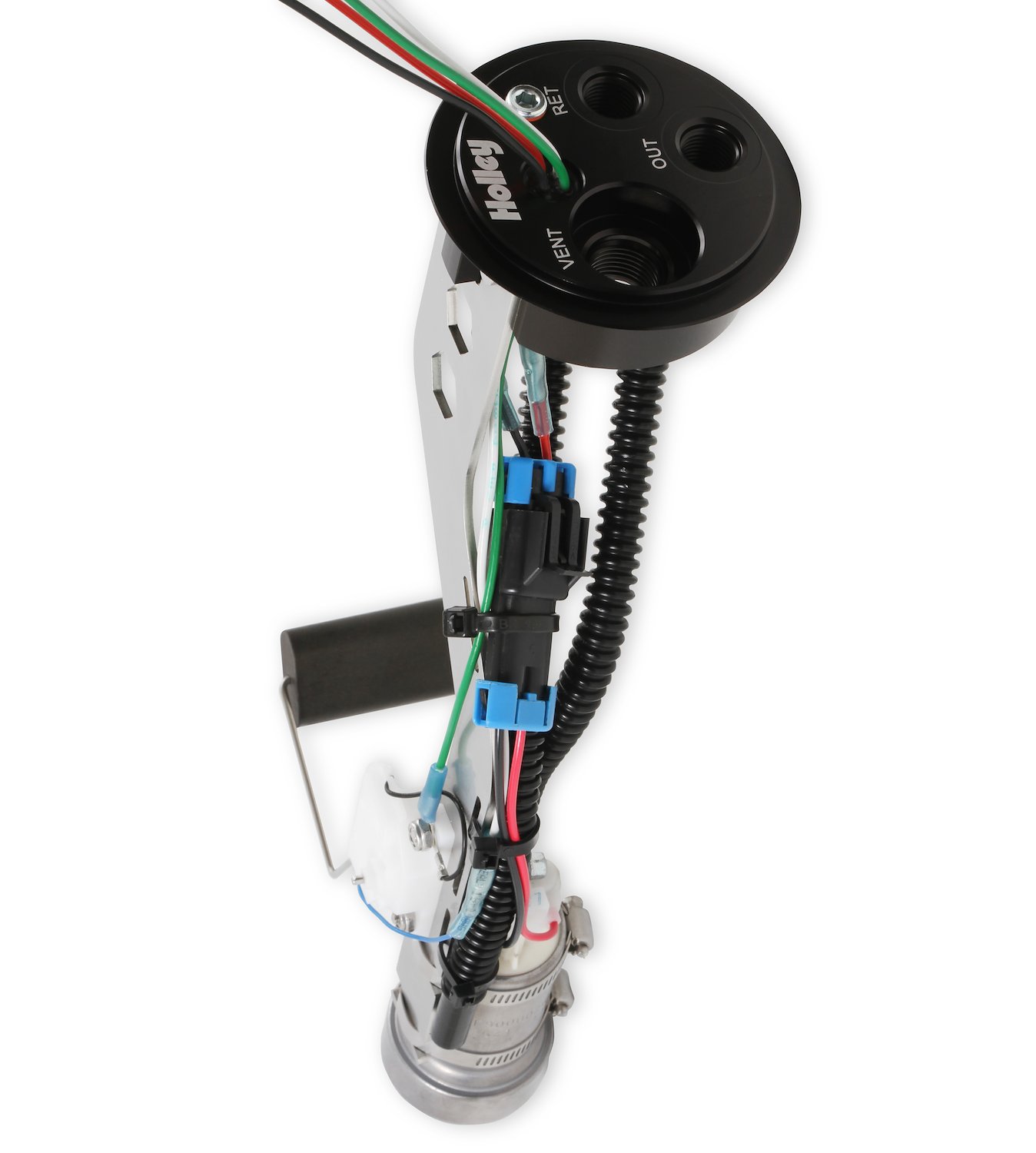

Sniper In-Tank Electric Fuel Pump Module1988-1998 GM C/K Series Trucks 525 LPH Flow Rate Requires Bypass Style Regulator Supports 1200 EFI Horsepower (HP) or 1450 Carbureted HP 0-90 Ohms Resistance Bright Dip Black Finish
Holley 12-354 Sniper In-Tank Electric Fuel Pump Module Features:
- Free Flows 525 Liters Per Hour (LPH)
- Requires Bypass (Return Style) Regulator Such as 555-15909, 555-159120, 510-12-879, or 510-12-880 (Sold Separately)
- -6 AN O-Ring Outlet and Return Ports
- Fuel Level Sending Unit is Pre-Calibrated to Factory Settings

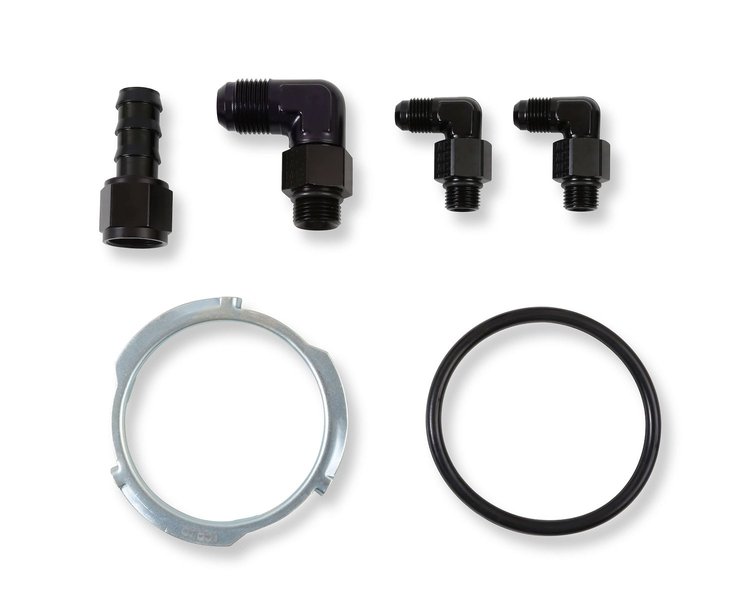

- Fuel Tank Lock Ring, O-Ring, and Filter Sock Included
- Black-Anodized Bright Dip Finish Resists Corrosion
Part TypeFuel Pump Module Assembly
BrandHOLLEY
Package Height4.3
Package Width6.5
Package Length14.8
Weight3.535 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Cover Assembly IncludedYes
Universal Or Specific FitSpecific Fit
Outlet Size-6 AN O-ring
Wire Quantity4
Outlet Quantity (# Of Ports/Lines)1
QuantitySold individually
Resistance At Empty (Ohms)0
Strainer IncludedYes
Pump TypeElectrical
Fuel TypeGas, E85
Strainer LocationInternal
Outlet AttachmentFemale O-ring
Fuel Pressure RegulatorNo
Mount TypeIn Tank
Number Of Ports On Cover3
Type/SeriesFuel Delivery Module
Cover MaterialBillet aluminum
Gasket/Seal IncludedYes
Part FitmentSemi Universal
Seal And Lock Ring IncludedYes
Resistance At Full (Ohms)90
Free Flow Rate525
Fuel Level Sender Assembly IncludedYes
Package Qty1
Package TypeEA
