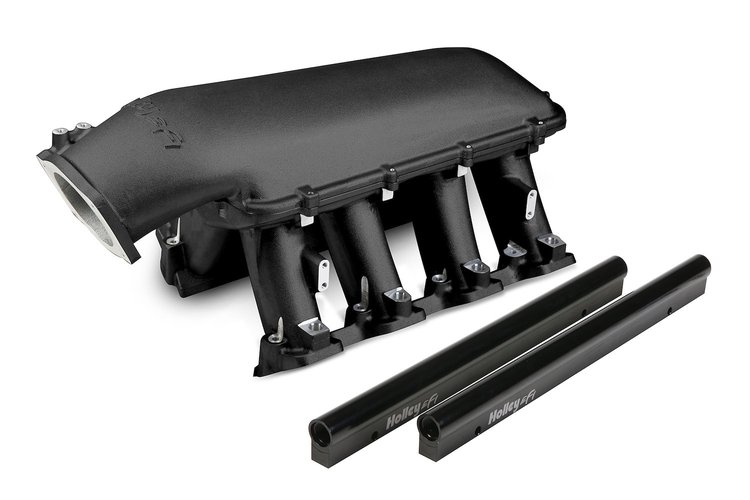

300-117BK EFI Hi-Ram Intake for GM LS3, L92 Gen IV Engines w/105 mm Throttle Body [Black]

Name: 300-117BK EFI Hi-Ram Intake for GM LS3, L92 Gen IV Engines w/105 mm Throttle Body [Black]
Brand: HOLLEY
SKU: 510-300-117BK
Price: 1299.95 USD
Availability: InStock

^$1,299⁹⁵

2 left in stock

Ships Tomorrow

Lowest Price Guarantee

LS Modular Hi-Ram Intake

EFI Hi-Ram Intake Manifold

GM LS3, L92 Gen IV Engines

Rectangular Port

For Single 105 mm Throttle Body

Longitudinal Mount Plenum Top

Modular Design

Fuel Rails Machined for -8AN O-Ring Fittings

3500-8000 RPM

Cast-Aluminum

Black

Holley 300-117BK EFI Hi-Ram Intake Features:

Outstanding potential for naturally aspirated or forced induction applications
Modular configuration to accept a wide range of carbureted and EFI tops for custom induction systems
The runner length and the tapered cross-section are designed to perform for multiple engine configurations
EFI fuel rails are machined for -8AN O-ring fittings with large passages to accommodate high fuel flow and dampen pressure pulsations in the fuel system
Intended for use on N/A or forced induction engines in the 6 to over 7-liter range
Max power at 7000-8000+ RPM

Holley 300-117BK EFI Hi-Ram Intake Specs:

Base Plenum Top Mounting Flange Height: 8.42 in. to the lifter valley cover flange on the engine block
Total Height with 92/102 mm EFI Plenum Top: 12.32 in.to the lifter valley cover flange on the engine block
Port Size: 2.49 in. Height x 1.21 in. Wide
Mounting Flange Gasket Type: Standard LS3 Molded O-Ring
Plenum Top Gasket Type: 3/32 in. Round O-ring Cord
Throttle Body Flange Location, with 92/102 mm EFI Plenum Top:
- Height: 8.42 in. (from engine block lifter valley cover flange)
- Longitudinal Location: 3.84 in. (forward from engine block front flange)
- Angle: 25 degrees (down from vertical)
Runner Length: 6.50 in.
As-Cast Runner
Cross-Sectional Area Tapered: 4.25 in² to 2.77 in²

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Make Your Bad Intentions Known!

Holley GM LS Modular Hi-Ram Intake Manifold features aggressive race-bred styling for all-out performance! Intended for use where hood clearance is not a factor, Hi-Ram intakes feature straight long runners with a tall overall height for producing maximum power on naturally aspirated or forced induction engines at 7,000 to 8,000 RPM! Designed with a modular base to allow a wide variety of carbureted or EFI tops and also provides a great foundation for custom fabricated inductions. Hi-Ram LS intakes are perfect for any LS powered drag race, muscle car, marine, off-road, sandrail, pulling truck or street-rod application!

Features

Cast aluminum available in natural or black ceramic coated finish
2.490 in. Height x 1.210 in. Wide Port Size
Standard Molded O-Ring Mounting Flange Gasket
3/32 in. Round O-ring Cord Plenum Top Gasket
EFI fuel rails are machined for -8 AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits
