Breakdown of Included Items

Dimensions

Features:

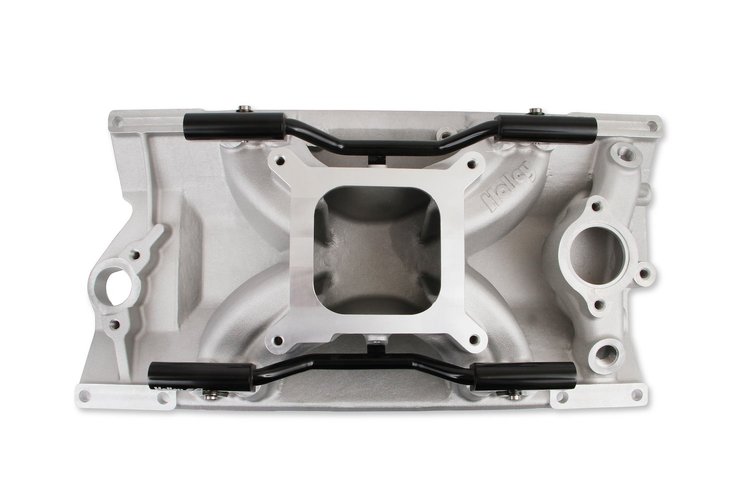

• Fits Small Block Chevy 262-400 ci engines with 1996-2002 Vortec (L31) cylinder heads (non-EGR)
• 4150 square bore mounting flange to accept most aftermarket square-bore throttle body designs
• Fuel injector bores have back-cut exits in the runners for better fuel atomization
• Black coated fuel rails with bracket assortment allowing different height fuel injectors
• Fuel rail designed for maximum throttle lever clearance
• Accepts most stock hardware and accessory brackets
• Single plane design with an isolated plenum to keep the air charge cooler
• 1 in. shorter overall height than most single plane manifolds
• Lower throttle body mounting height to help with hood clearance
• 2 distributor clamp locations
• Powerband: 2,500-7,500 RPM
• Port size: 2.050 in. height x 1.020 in. width
• Cast aluminum construction
• Satin finish
• Note:
  • Fuel injectors not included

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
