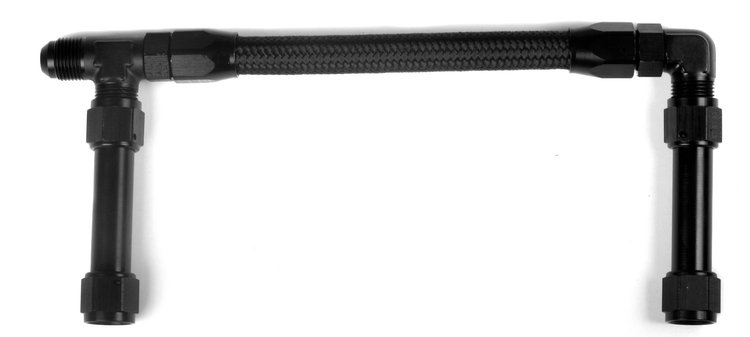

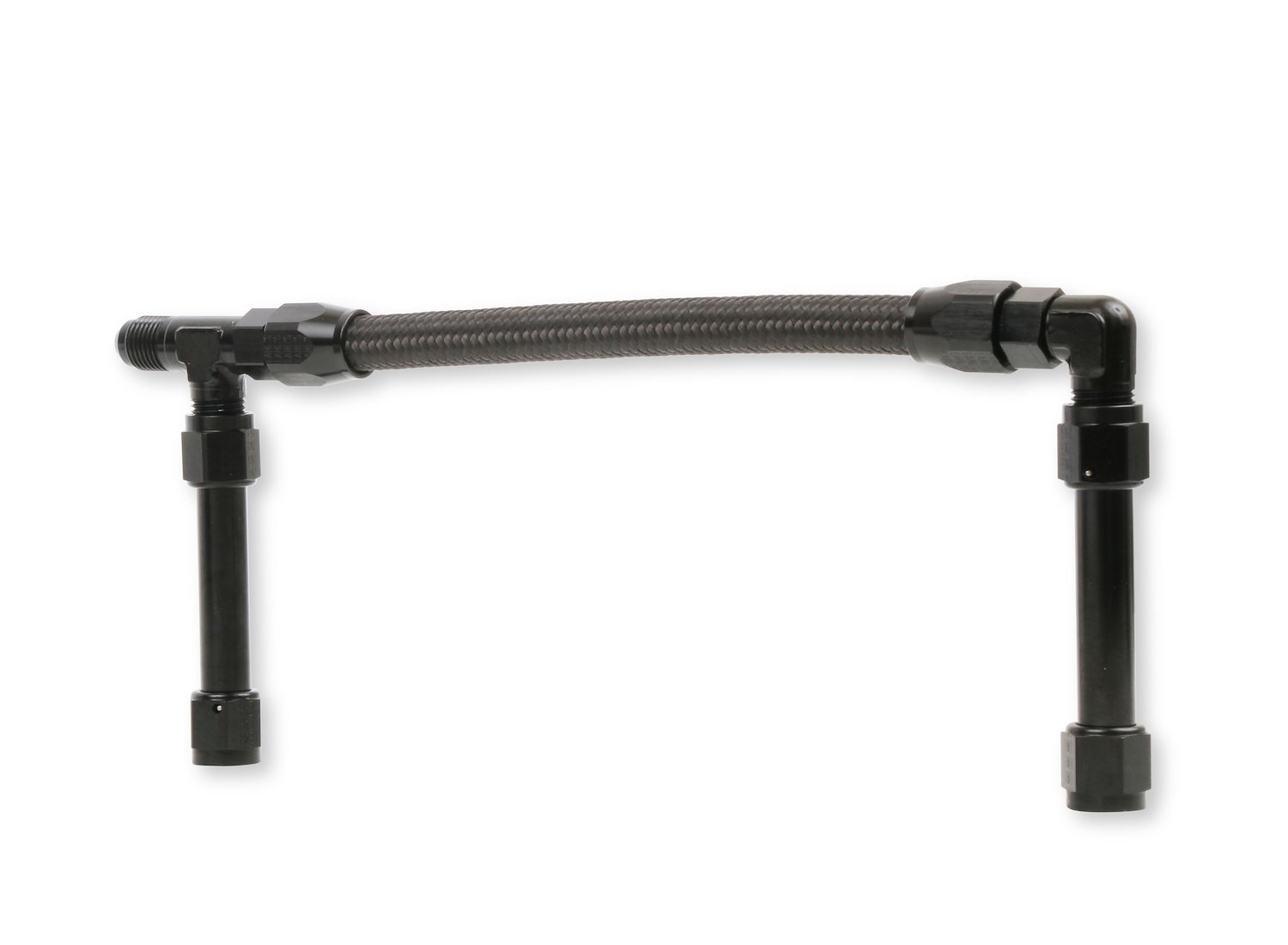

Lowest Price GuaranteeAno-Tuff Carburetor Fuel Lines
Fuel LineCenter to Center Measurement: 9.75 in. Finish: Black Inlet Fitting Thread Diameter: 8 AN Material: Aluminum
The Fuel Line from Holley is a fuel line engineered and manufactured to Holley's specifications for consistent fit and function.
Key Fuel Line Features:
- The fuel lines are 9.75 in. long (standard fuel line is 9.50 in.).
- Increased fuel volume of each bowl extends length by .125 in. per bowl (.250 in. overall).
- Holley Ano-Tuff fuel lines are designed for Ultra-XP series carburetors. These fittings and lines come complete with Holley's Ano-Tuff coating which is a hard, anodized coating designed to protect your fittings!
Part TypeFuel Line
Product LineHolley Ano-Tuff Fuel Lines For Ultra XP Carburetors
BrandHOLLEY
Package Height2.0
Package Width6.2
Package Length15.9
Weight0.87 PG
Part CategoryPerformance Parts
Fitting MaterialAluminum
Outlet Size-8 AN
PositionN/A
Size-8AN
Fuel Pressure Gauge IncludedNo
Outlet QuantityTwo
QuantitySold as a kit
Fuel Line FinishBlack anodized
Inlet AttachmentMale Threads
Fitting FinishBlack anodized
AdjustableNo
Maximum Center To Center Distance9.75 in (247.65 mm)
Fuel Line MaterialStainless steel
Gauge PortNo
Outlet AttachmentFemale Threads
Minimum Center To Center Distance9.75 in (247.65 mm)
Fuel Line TypeBraided flex line
Inlet QuantityOne
Part FitmentUniversal
Fuel Line Inlet Size-8 AN
Fuel Filter IncludedNo
Vendor Part Number34-43
Package Qty1
Package TypeEA
