Super Comp Headers 396-502 Big Block Chevy
Product Discontinued
HOOKER HEADERSPART NUMBER: 520-2118-1

Super Comp Headers 396-502 Big Block Chevy

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

1970-81 F-Body/1964-77 A-Body with Big Block Chevy

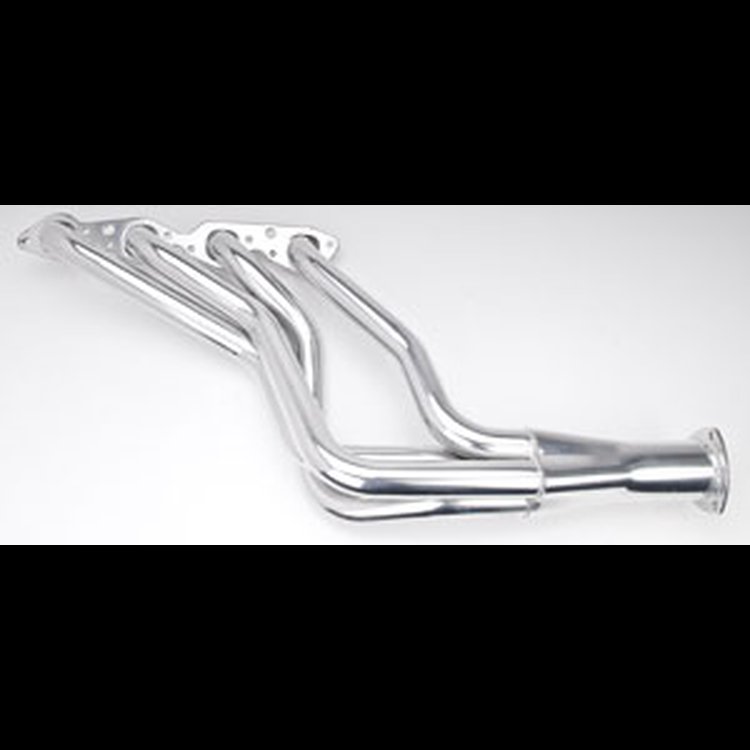

    Super Comp Headers
  • 396-502 Big Block Chevy
  • 1970-81 Chevy Camaro/Pontiac Firebird
  • 1964-77 Chevy Chevelle, Malibu and El Camino
  • 1971-77 GMC Sprint
  • 1.750" x 30" Primary Tubes
  • 3" x 10" Collector
  • Metallic Ceramic Coated

    1964-77 GM A-Body continued;
  • 1970-72 Chevy Monte Carlo
  • 1964-75 Buick Special, Skylark, GS and Sport Wagon
  • 1973-74 Buick Century and Regal
  • 1964-75 Oldsmobile Cutlass, 442 and Vista Cruiser
  • 1964-75 Pontiac Tempest, Lemans and GTO
  • 1969-72 Pontiac Grand Prix
  • 1973-75 Pontiac Grand Am

    Footnotes:
  • Headers will fit their respective applications only if big block engine frame stands are used from the following applications;
        Camaro 1970-72, Chevelle 1968-72, Nova 1968-72.

    Accessory Compatibility:
  • Power Steering - Yes
  • Power Brakes - Yes
  • Air Conditioning - Yes
  • Smog Pump - No

    Transmission Compatibility:
  • Manual Column Shifter - No
  • Manual Floor Shifter - Yes
  • Automatic Column Shifter - Yes
  • Automatic Floor Shifter - Yes

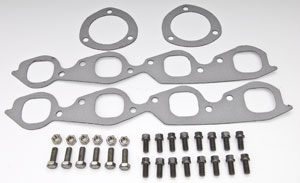

    Included Items Note: Bolts and Gaskets Included, Reducers required

    Port Shape: SAP

    Emissions Compatibility: Street Legal for Pre-1974 Vehicles
    The world's best header

    Made from the lightest and strongest materials available, Hooker Headers Super Comp Headers create an optimum pressure balance between the intake and exhaust systems. These Hooker headers use exhaust waves to expel all burnt gases from the combustion chamber while drawing in maximum fresh fuel and air, resulting in more horsepower and better mileage. Street reducers available separately.

Part TypeHeader
Product LineHooker Headers Super Comp Headers
BrandHOOKER HEADERS
Package Height10.0
Package Width18.0
Package Length46.0
Weight35.0 PG
Part CategoryPerformance Parts
Header FinishSilver ceramic coated
Tube DirectionDown Swept
QuantitySold as a pair
Bolts/Studs IncludedYes
Cylinder Head Port ShapeRound
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Tube MaterialMild Steel
Weld-UpNo
Collector Attachment3-bolt flange
Flange StyleStandard
TunedYes
Collector Diameter3 in (76.2 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedNo
ApplicationAutomotive
Primary Tube Gauge18-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.75 in (44.5 mm)
Vendor Part Number2118-1HKR
Package Qty1
Package TypeEA
