HOOKER HEADERSPART NUMBER: 520-2220-1

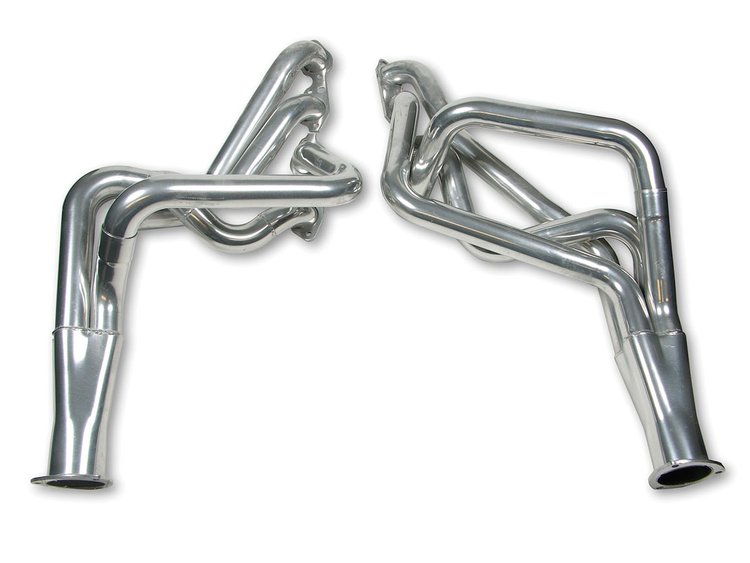

Super Comp Headers 396-502 Big Block Chevy

$1,00795
ShippingShips on 09/04/2026
Lowest PriceLowest Price Guarantee

1964-67 A-Body with Big Block Chevy
    Super Comp Headers
  • 396-502 Big Block Chevy
  • 1964-67 Buick Special, Wagon
  • Chevy Chevelle, Malibu, El Camino
  • Olds Cutlass, Vista Cruiser Wagon
  • 2.125" x 34" Primary Tubes
  • 3.5" x 10" Collectors
  • Metallic Ceramic Coated

    Applications Continued:
  • Pontiac Tempest, GTO

    Footnotes:
  • One tube each side over frame.
  • Will not fit with Powerglide
  • Factory style big block frame stands and motor mounts must be used to ensure proper engine locations and header fit.
  • Use ARP 12-point header bolts - 070-100-1112 Black Oxide or 070-400-1112 Stainless Steel.

    Accessory Compatibility:
  • Power Steering - Yes
  • Power Brakes - Yes
  • Air Conditioning - No
  • Smog Pump - N/A

    Transmission Compatibility:
  • Manual Column Shifter - Yes
  • Manual Floor Shifter - Yes
  • Automatic Column Shifter - Yes
  • Automatic Floor Shifter - Yes

    Included Items Note: Bolts and Gaskets Included, Reducers required

    Port Shape: RD

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeHeader
BrandHOOKER HEADERS
Package Height15.4
Package Width18.2
Package Length46.5
Weight45.0 PG
Part CategoryPerformance Parts
Header FinishSilver ceramic coated
Tube DirectionDown Swept
QuantitySold as a pair
Bolts/Studs IncludedYes
Cylinder Head Port ShapeRound
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Tube MaterialMild Steel
Weld-UpNo
Collector Attachment3-bolt flange
Flange StyleStandard
TunedYes
Collector Diameter3.5 in (88.9 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedNo
ApplicationAutomotive
Primary Tube Gauge18-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter2.125 in (54 mm)
Vendor Part Number2220-1HKR
Package Qty1
Package TypeEA
