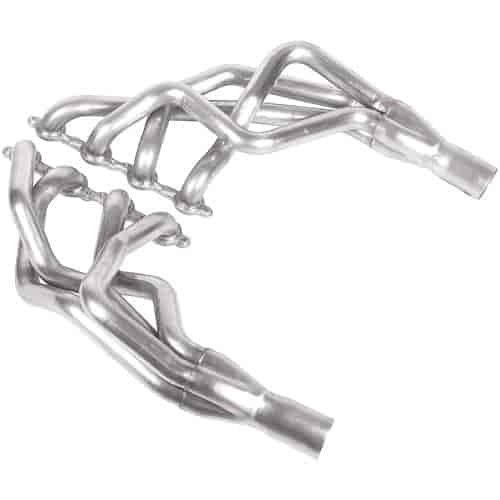

Headers for LS Engine Swap Full Length Mild Steel

Name: Headers for LS Engine Swap Full Length Mild Steel
Brand: HOOKER HEADERS
SKU: 520-2276-1
Price: 731.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Full Length Headers

1-7/8'' Primary Tubes

Full Length Mild Steel
1-7/8'' Primary Tubes
3'' Collector
1967-69 Camaro/1968-74 Nova
Silver Ceramic Coated Finish

Installation Note:
Works best with Hot LS1/LS2/LS6 (cam, heads, nitrous), stock 6.2L (L92) Vortec truck, stock LS3/LS7 or all supercharged LS/Vortec engine swaps requiring maximum ground clearance.
Also fits 1967-69 Firebird/Trans AM, and 1968-74 Pontiac Ventura, Buick Apollo and Oldsmobile Omega

Engineered specifically for Camaro & Nova LS Engine Swaps

These headers were specifically designed to be installed with Hooker LS swap engine and transmission mounting components and exhaust systems for LS Engine Swap 1967-69 Camaro/1968-74 Nova applications. For best fitment and overall component clearances, Hooker headers and mounting components for this LS swap application are designed with a chassis-centered engine and transmission location, which varies only slightly from the original minor passenger side offset used by GM. The engine and transmission have also been positioned to enable hassle-free installation and to promote good vehicle handling performance. The unique design geometry of these headers requires the use of specific Hooker clamshell type engine mounting brackets and Anchor brand P/N 2292 or equivalent engine mounts to ensure fitment compatibility with your car. Use of any frame stand/swap plate style mounts will not provide the engine positioning necessary for obtaining the component and ground clearances designed into these headers. Attempts to install these headers with any other type or combination of engine and transmission mounting components will cause them to no longer be bolt-in compatible with the mentioned Hooker exhaust systems.

Important Application and Installation Note

Hooker Headers LS swap engine mounting brackets (p/n 520-12618)
Hooker Headers transmission crossmember for LS engine swap (p/n 520-12625 or 520-12626)
Hooker Headers exhaust systems (p/n 520-42503 or 520-42504)
Holley LS oil pan (p/n 510-302-2)
and accessory drive components for 1967-69 Camaro (F-body)/1968-74 Nova (X-body) LS engine swap. Using ANY components other than what is listed here will result in misalignment and interference issues with these Hooker and Holley components.
Features:
Available mild steel or stainless steel primary tube and collector
Mild steel headers have laser cut 3/8'' flanges with flat-finished TIG welded port sealing; Stainless steel headers have flat-finished TIG welded investment cast port flanges
Premium fitment with optimized ground clearance
Designed to maximize exhaust flow with optimized bend geometry to deliver increased power and torque without compromising fitment
A key requirement when designing these Hooker LS Swap Header system was to obtain the highest ground clearance possible tucking the header tubing up into the chassis as high as was feasible while maintaining optimum engine power
Compatible with QuickTime bellhousings, mechanical clutch linkage, stock A/C evaporator case on firewall, straight boot spark plug wires and Holley LS swap oil pans and accessory drive brackets
Compatible only with stock height subframe/body mounts; installation with ''half height'' mounts will require modification to vehicle floor panels. Not compatible with stock GM column shift linkage; must use Lokar or similar aftermarket cable or linkage assembly for column shifted applications
Long tube headers connect directly to Hooker 3'' exhaust system; connection of long tube headers to Hooker 2-1/2'' exhaust system, or Hooker mid-length headers to 2-1/2'' or 3'' exhaust system requires the use of an available mid-pipe kit
