Super Comp Headers 396-502 Big Block Chevy
InfoVehicle Info Needed
HOOKER HEADERSPART NUMBER: 520-2285

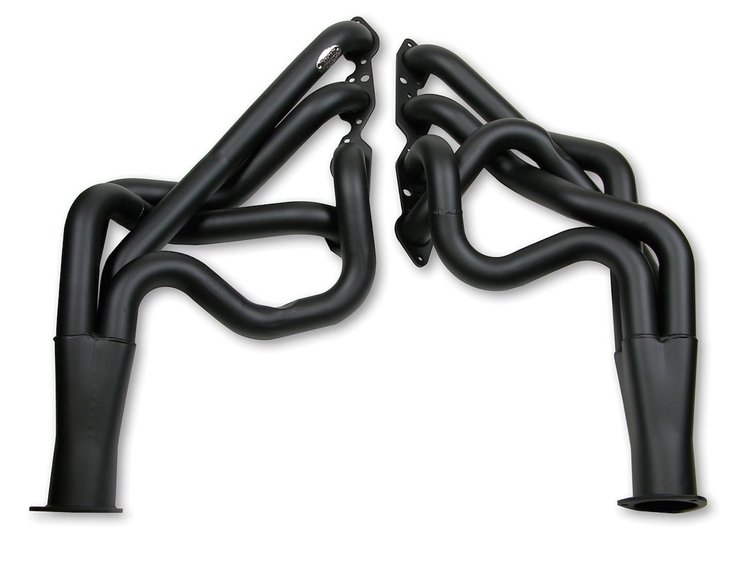

Super Comp Headers 396-502 Big Block Chevy

$95895$1065.95You Save$107.00
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

1967-69 F-Body/1968-74 X-Body with Big Block Chevy
    Super Comp Headers
  • 396-502 Big Block Chevy
  • 1967-69 Chevy Camaro/Pontiac Firebird
  • 1968-72 Chevy II/Nova
  • 1971-72 Pontiac Ventura
  • 2.125" x 36" Primary Tubes
  • 3.5" x 10" Collector
  • Black Painted

    Footnotes:
  • Headers will fit their respective applications only if big block engine frame stands are used from the following applications;
    A A A  Camaro 1970-72, Chevelle 1968-72, Nova 1968-72.
  • Redesigned for improved clearances.

    Accessory Compatibility:
  • Power Steering - No
  • Power Brakes - Yes
  • Air Conditioning - No
  • Smog Pump - No

    Transmission Compatibility:
  • Manual Column Shifter - No
  • Manual Floor Shifter - Yes
  • Automatic Column Shifter - Yes
  • Automatic Floor Shifter - Yes

    Included Items Note: Bolts and Gaskets Included, Reducers required

    Port Shape: RD

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeHeader
BrandHOOKER HEADERS
Package Height13.5
Package Width18.0
Package Length45.0
Weight44.95 PG
Part CategoryPerformance Parts
Header FinishPainted
Tube DirectionDown Swept
Bolts/Studs IncludedYes
Cylinder Head Port ShapeRound
Transmission Mount IncludedNo
Gaskets IncludedYes
TunedYes
Motor Mounts IncludedNo
Primary Tube Gauge18-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Primary Tube Length36 in (914.4 mm)
QuantitySold as a pair
Header MaterialSteel
Tube MaterialMild Steel
Weld-UpNo
Collector Attachment3-bolt flange
Flange StyleStandard
Collector Diameter3.5 in (88.9 mm)
Part FitmentSemi Universal
Reducers IncludedNo
ApplicationAutomotive
Catalytic Converter(S) IncludedNo
Primary Tube Diameter2.125 in (54 mm)
Vendor Part Number2285HKR
Package Qty1
Package TypeEA
