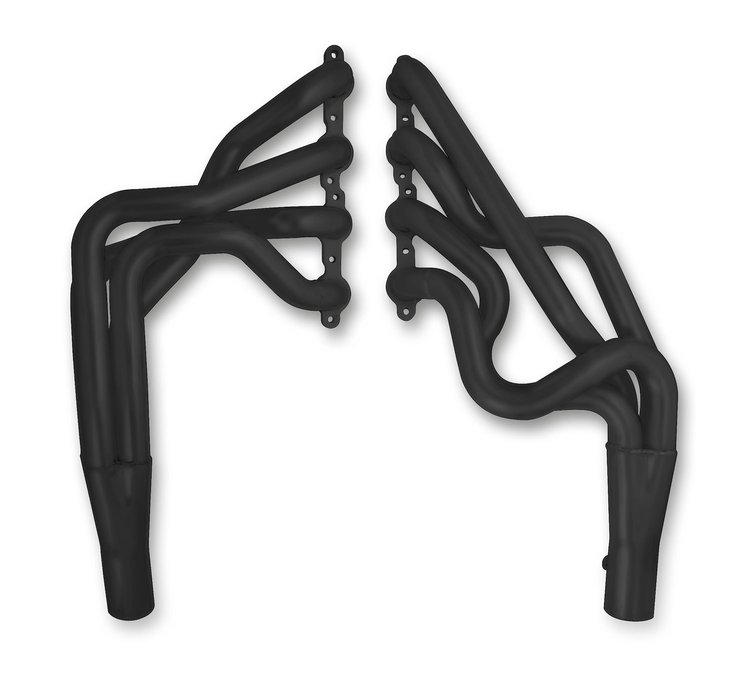

Blackheart LS Engine Swap Long-Tube Headers
Product Discontinued
HOOKER HEADERSPART NUMBER: 520-2296

Blackheart LS Engine Swap Long-Tube Headers

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM F-Body
Blackheart LS Engine Swap Long-Tube Headers
  • 1975-1981 GM F-Body
  • Mild Steel
  • 1.875 in. Primary Tubes
  • 3.000 in. Collectors
  • Black Painted Finish

    Features:

    • Works with all LS engines including LS1, LS2, LS3, LS6 and LS7 or Vortech 5.3L-6.0 L engines
    • Premium fitment with optimized ground clearance. The only 1975-81 specific header design in the marketplace
    • Laser cut 3/8" flanges with flat-finished TIG welded port sealing
    • 1-7/8" primaries/3" collectors
    • Designed and intended for installation only with Hooker LS swap engine mounting brackets and transmission crossmembers for this application. Will not install with any other brand of mounts
    • Compatible with QuickTime™ bellhousings, mechanical clutch linkage (requires custom Z-bar/pivot ball assembly), stock A/C evaporator case on firewall, straight boot spark plug wires and Holley LS swap oil pan and accessory drive brackets
    • Connects directly to Hooker 3" 2nd-gen F-body exhaust system. Connection to 2-1/2" Hooker 2nd-gen F-body exhaust system requires the use of an available mid-pipe kit
    • Compatible only with stock height subframe/body mounts. Installation with half-height mounts will require modification to vehicle floor panels
    • Automatic and manual transmission compatible
    • Will not install with factory column shift linkage, Lokar or similar aftermarket shift cable or linkage required for column shift applications
    • Performance Headers for Your LS Engine Swap

      Hooker GM LS Swap Headers allow you to transplant a GM LS series engine into your favorite classic car or truck. Achieve a complete engine swap by combining Blackheart headers with Hooker LS swap accessories such as engine mounts, transmission crossmembers, oil pans, intakes, and exhaust kits.

    Part TypeHeader
    Product LineHooker Headers GM LS Engine Swap Headers
    BrandHOOKER HEADERS
    Package Height9.5
    Package Width20.0
    Package Length45.0
    Weight34.5 PG
    Part CategoryPerformance Parts
    Header FinishPainted
    Tube DirectionDown Swept
    QuantitySold as a pair
    Bolts/Studs IncludedYes
    Engine Make/SizeGM LS
    Header MaterialSteel
    Tube MaterialMild Steel
    Weld-UpNo
    Collector AttachmentSlip fit
    TunedNo
    Collector Diameter3 in (76.2 mm)
    Reducers IncludedNo
    ApplicationAutomotive
    Primary Tube Gauge18-gauge
    Header StyleFull-length
    Primary Tube Diameter1.875 in (47.6 mm)
    Vendor Part Number2296HKR
    Package Qty1
    Package TypeEA
