Super Comp Headers 396-502 Big Block Chevy
InfoVehicle Info Needed
HOOKER HEADERSPART NUMBER: 520-2817-1

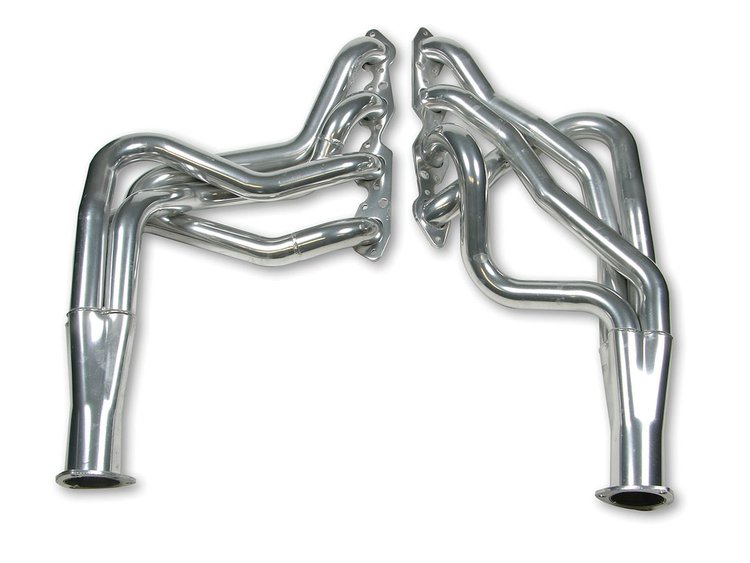

Super Comp Headers 396-502 Big Block Chevy

$1,21395$1349.95You Save$136.00
ShippingShips on 09/04/2026
Lowest PriceLowest Price Guarantee

Chevy/GMC Big Block Chevy
    Super Comp Headers
  • 396-502 Big Block Chevy
  • 1967-87 1/2, 3/4, 1-Ton & Crew Cab
  • 1969-91 Blazer, Jimmy, Yukon
  • 1969-91 Suburban/Tahoe 2-Door
  • 4WD Only
  • 1.875'' x 31'' Primary Tubes
  • 3'' x 10'' Collectors
  • Metallic Ceramic Coated

    Footnotes:
  • Applications with oxygen sensors use reducers 555-30012 for 3' three bolt flange.
  • Will not fit Turbo 400 unless transmission crossmember is set back 2' at the mount.
  • For a clean start to your custom exhaust use Hookers Super Competition exhaust system 520-19622. This kit will not fit with Muncie SM420 Cast Iron Transmission.

    Accessory Compatibility:
  • Power Steering - Yes
  • Power Brakes - Yes
  • Air Conditioning - Yes
  • Smog Pump - Yes, with modifications

    Transmission Compatibility:
  • Manual Column Shifter - Yes, if equipped
  • Manual Floor Shifter - Yes
  • Automatic Column Shifter - Yes
  • Automatic Floor Shifter - Yes, if equipped

    Included Items Note: Bolts and Gaskets Included, Reducers required

    Port Shape: SAP

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    The world's best header

    Made from the lightest and strongest materials available, Hooker Headers Super Comp Headers create an optimum pressure balance between the intake and exhaust systems. These Hooker headers use exhaust waves to expel all burnt gases from the combustion chamber while drawing in maximum fresh fuel and air, resulting in more horsepower and better mileage. Street reducers available separately.

Part TypeHeader
Product LineHooker Headers Super Comp Headers
BrandHOOKER HEADERS
Package Height15.0
Package Width21.0
Package Length45.0
Weight40.0 PG
Part CategoryPerformance Parts
Header FinishSilver ceramic coated
Tube DirectionDown Swept
QuantitySold as a pair
Bolts/Studs IncludedYes
Cylinder Head Port ShapeRound
Transmission Mount IncludedNo
Header MaterialSteel
Gaskets IncludedYes
Tube MaterialMild Steel
Weld-UpNo
Collector Attachment3-bolt flange
Flange StyleStandard
TunedYes
Collector Diameter3 in (76.2 mm)
Motor Mounts IncludedNo
Part FitmentSemi Universal
Reducers IncludedNo
ApplicationAutomotive
Primary Tube Gauge18-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.875 in (47.6 mm)
Vendor Part Number2817-1HKR
Package Qty1
Package TypeEA
