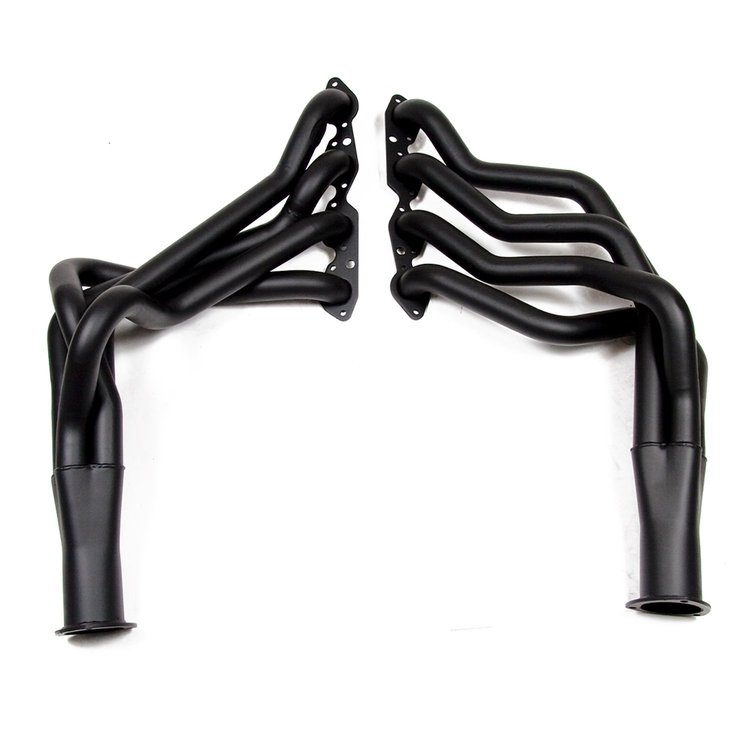

Super Comp Headers 396-502 Big Block Chevy
InfoVehicle Info Needed
HOOKER HEADERSPART NUMBER: 520-2841

Super Comp Headers 396-502 Big Block Chevy

$58695
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Chevy/GMC Big Block Chevy
    Super Comp Headers
  • 396-502 Big Block Chevy
  • 1968-87 1/2, 3/4, 1-Ton Trucks 2WD
  • 1968-91 Blazer, Yukon Jimmy 2WD
  • 1968-91 Suburban, Crew Cab 2WD
  • 2'' x 35'' Primary Tubes
  • 3.5'' x 10'' Collector
  • Black Painted

    Footnotes:
  • Applications with oxygen sensors use reducers 555-30037 for 3.5' three bolt flange.

    Accessory Compatibility:
  • Power Steering - Yes
  • Power Brakes - Yes
  • Air Conditioning - Yes
  • Smog Pump - Yes, with modifications

    Transmission Compatibility:
  • Manual Column Shifter - Yes
  • Manual Floor Shifter - Yes
  • Automatic Column Shifter - Yes
  • Automatic Floor Shifter - No

    Included Items Note: Bolts and Gaskets Included, Reducers required

    Port Shape: SAP

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    The world's best header

    Made from the lightest and strongest materials available, Hooker Headers Super Comp Headers create an optimum pressure balance between the intake and exhaust systems. These Hooker headers use exhaust waves to expel all burnt gases from the combustion chamber while drawing in maximum fresh fuel and air, resulting in more horsepower and better mileage. Street reducers available separately.

Part TypeHeader
Product LineHooker Headers Super Comp Headers
BrandHOOKER HEADERS
Package Height13.5
Package Width18.0
Package Length45.0
Weight45.8 PG
Part CategoryPerformance Parts
Header FinishPainted
Tube DirectionDown Swept
Bolts/Studs IncludedYes
Cylinder Head Port ShapeRound
Transmission Mount IncludedNo
Gaskets IncludedYes
TunedNo
Motor Mounts IncludedNo
Primary Tube Gauge18-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Primary Tube Length35 in (889 mm)
QuantitySold as a pair
Header MaterialSteel
Tube MaterialMild Steel
Weld-UpNo
Collector Attachment3-bolt flange
Flange StyleStandard
Collector Diameter3.5 in (88.9 mm)
Part FitmentSemi Universal
Reducers IncludedNo
ApplicationAutomotive
Catalytic Converter(S) IncludedNo
Primary Tube Diameter2 in (50.8 mm)
Vendor Part Number2841HKR
Package Qty1
Package TypeEA
