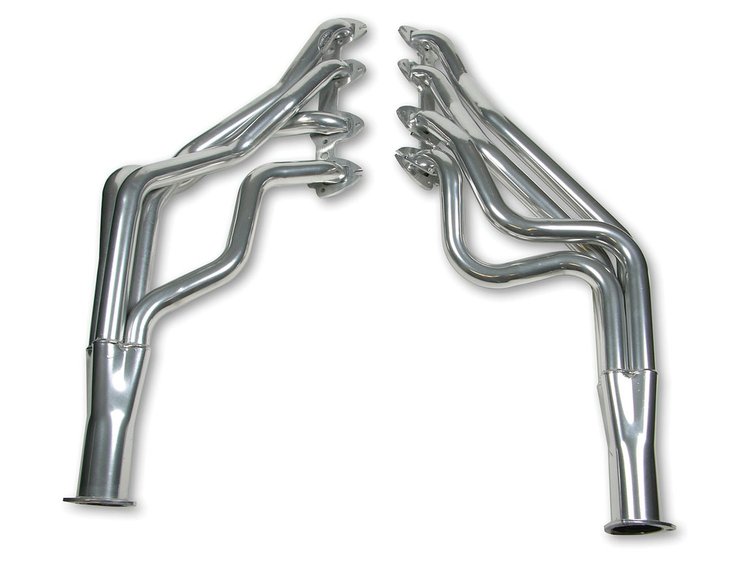

Super Comp Headers Ford 390-428 FE
InfoVehicle Info Needed
HOOKER HEADERSPART NUMBER: 520-6114-1

Super Comp Headers Ford 390-428 FE

$1,24995
ShippingShips on Sep 03, 2026
Lowest PriceLowest Price Guarantee

Ford 352-428 FE
    Super Comp Headers
  • Ford 390-428 FE
  • 1967-70 Mustang, Mercury Cougar
  • 1.75'' x 33'' Primary Tubes
  • 3'' x 10'' Collector
  • Metallic Ceramic Coated

    Footnotes:
  • Will not fit Cobra Jet
  • Will only fit 16 bolt F.E. cylinder heads with the top four exhaust bolt holes in line.Will not seal properly on heads with the end upper bolts lower than the center bolts.
  • Power Steering application requires p/n 520-10961 bracket

    Accessory Compatibility:
  • Power Steering - Yes, see notes above
  • Power Brakes - Yes
  • Air Conditioning - Yes
  • Smog Pump - N/A

    Transmission Compatibility:
  • Manual Column Shifter - No
  • Manual Floor Shifter - Yes
  • Automatic Column Shifter - No
  • Automatic Floor Shifter - Yes

    Included Items Note: Bolts and Gaskets Included, Reducers required

    Port Shape: SAP Street Legal

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    The world's best header

    Made from the lightest and strongest materials available, Hooker Headers Super Comp Headers create an optimum pressure balance between the intake and exhaust systems. These Hooker headers use exhaust waves to expel all burnt gases from the combustion chamber while drawing in maximum fresh fuel and air, resulting in more horsepower and better mileage. Street reducers available separately.

Part TypeHeader
Product LineHooker Headers Super Comp Headers
BrandHOOKER HEADERS
Package Height10.0
Package Width18.25
Package Length45.5
Weight40.0 PG
Part CategoryPerformance Parts
Header FinishSilver ceramic coated
Tube DirectionDown Swept
Bolts/Studs IncludedYes
Cylinder Head Port ShapeRectangular
Transmission Mount IncludedNo
Gaskets IncludedYes
TunedYes
Motor Mounts IncludedNo
Primary Tube Gauge18-gauge
Header StyleFull-length
Cross Over Pipe IncludedNo
Primary Tube Length33 in (838.2 mm)
QuantitySold as a pair
Header MaterialSteel
Tube MaterialMild Steel
Weld-UpNo
Collector Attachment3-bolt flange
Flange StyleStandard
Collector Diameter3 in (76.2 mm)
Part FitmentSemi Universal
Reducers IncludedNo
ApplicationAutomotive
Catalytic Converter(S) IncludedNo
Primary Tube Diameter1.75 in (44.5 mm)
Vendor Part Number6114-1HKR
Package Qty1
Package TypeEA
